Biostar G31D-M7 User Manual

Motherboard Manual
8

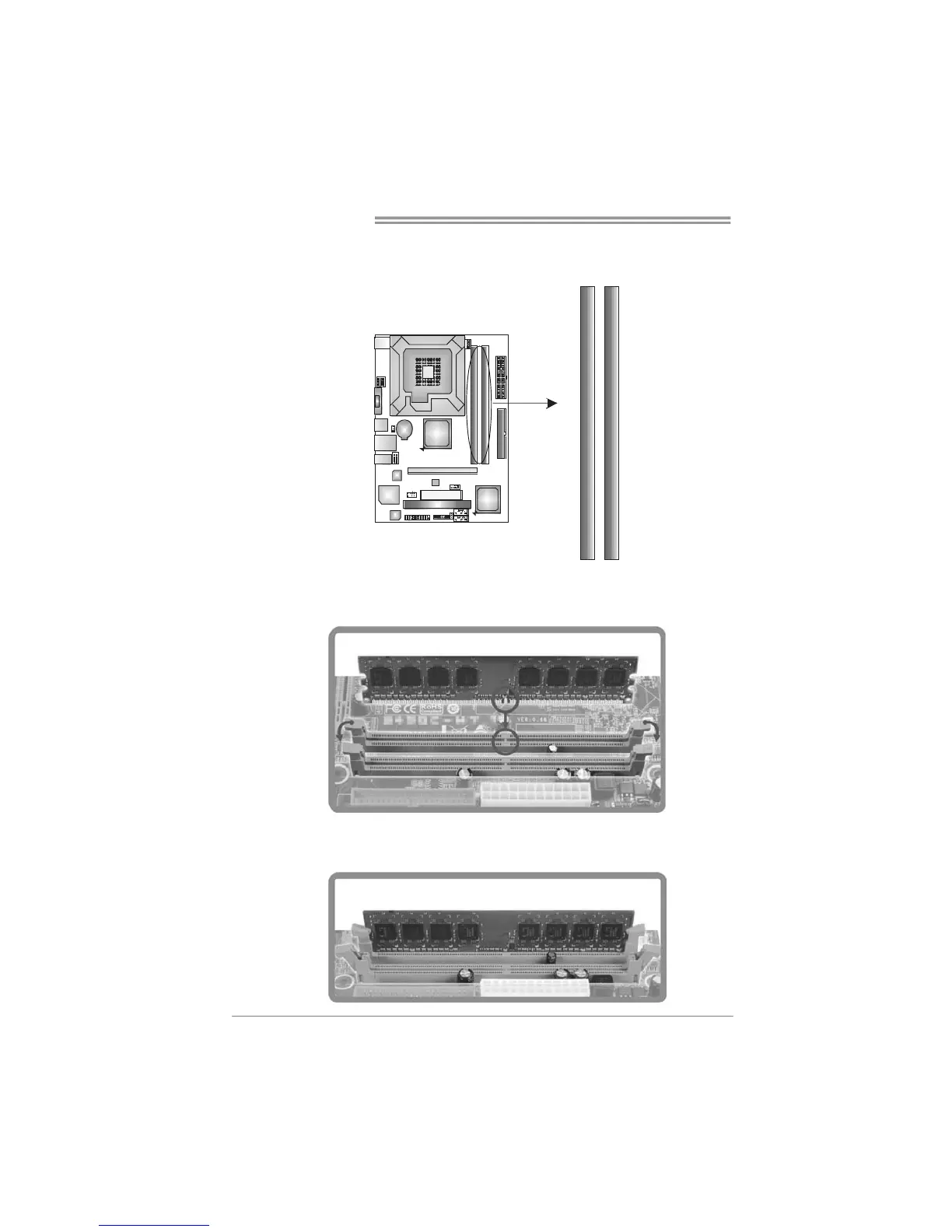

2.3 INSTALLING SYSTEM MEMORY
A. DDR2 module
DDR2_B1 DDR2_A1
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot so that the notch on the DIMM matches the break
on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.

Biostar G31D-M7 Specifications

General

Form Factor	Micro ATX
CPU Socket	LGA 775
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	4GB
Storage Interface	4 x SATA 3Gb/s, 1 x IDE
Integrated Graphics	Intel GMA 3100
Video Outputs	1 x VGA
Chipset	Intel G31
Memory Standard	DDR2 667/800
Expansion Slots	1 x PCI Express x16, 2 x PCI
Audio	Realtek ALC662 6-Channel HD Audio
LAN	Realtek RTL8102EL 10/100 Mbps
USB Ports	4 x USB 2.0 (Rear)
Power Connector	24-pin ATX
