Biostar G31D-M7 User Manual

Motherboard Manual
4

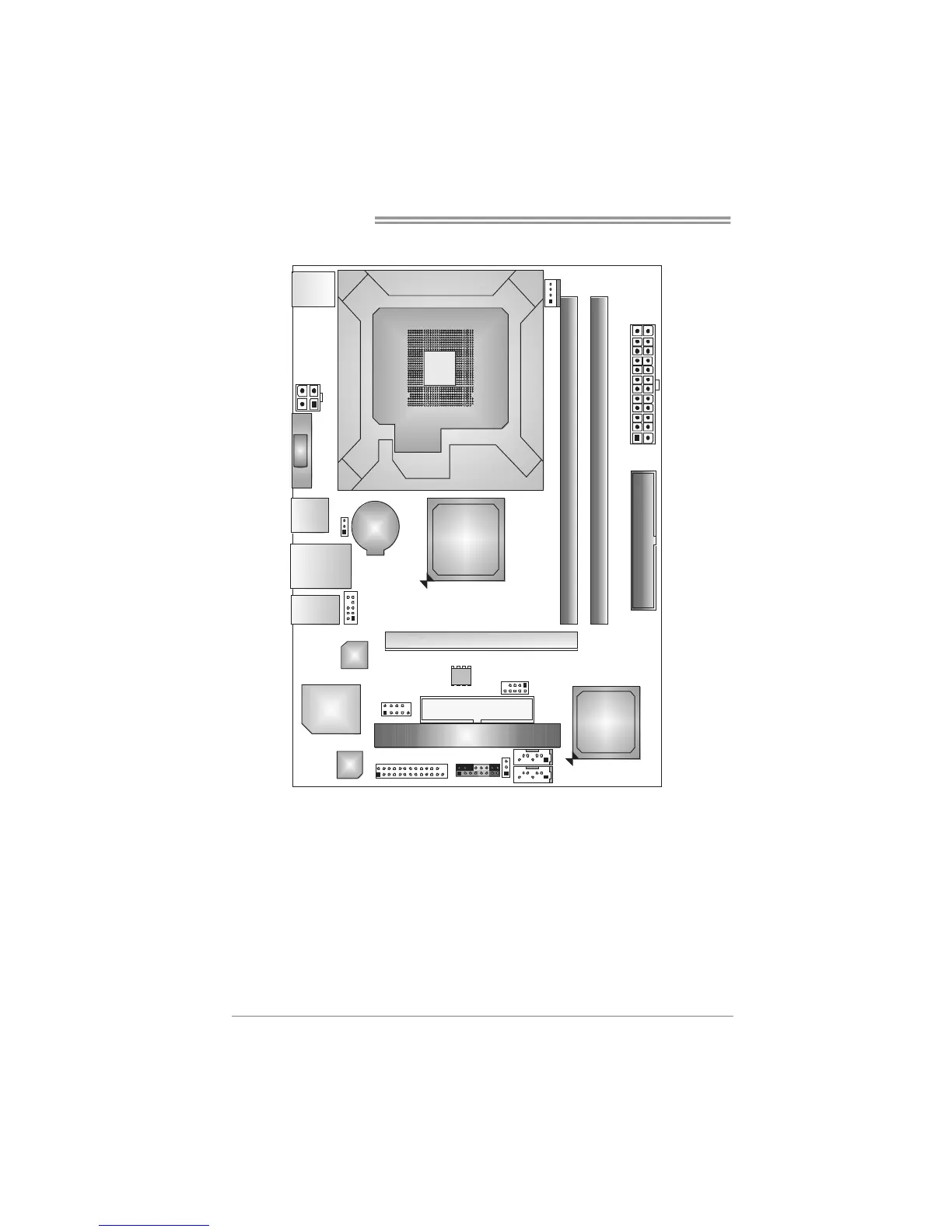

1.5 MOTHERBOARD LAYOUT
JKBMS1
JATXPWR2
JVGA1
JUSB2
JRJ45USB1
JAUDIO1
JAUDIOF1
LAN
Super
I/O
Code c
JCOM2
JPRNT1
PCI1
PEX16_1
FDD1
JPANEL1
JCMOS1
SATA1
SATA2
JUSB3
Intel
ICH7
IDE 1
DDR2_B1 DDR2_A1
Intel
G31
JUSBV1
BAT1
BIOS
LGA775
CPU1
JATXPWR1
JCFAN1
(Optional)
Note: ■ represents the 1
st
pin.

Biostar G31D-M7 Specifications

General

Form Factor	Micro ATX
CPU Socket	LGA 775
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	4GB
Storage Interface	4 x SATA 3Gb/s, 1 x IDE
Integrated Graphics	Intel GMA 3100
Video Outputs	1 x VGA
Chipset	Intel G31
Memory Standard	DDR2 667/800
Expansion Slots	1 x PCI Express x16, 2 x PCI
Audio	Realtek ALC662 6-Channel HD Audio
LAN	Realtek RTL8102EL 10/100 Mbps
USB Ports	4 x USB 2.0 (Rear)
Power Connector	24-pin ATX
