G41-M7
13

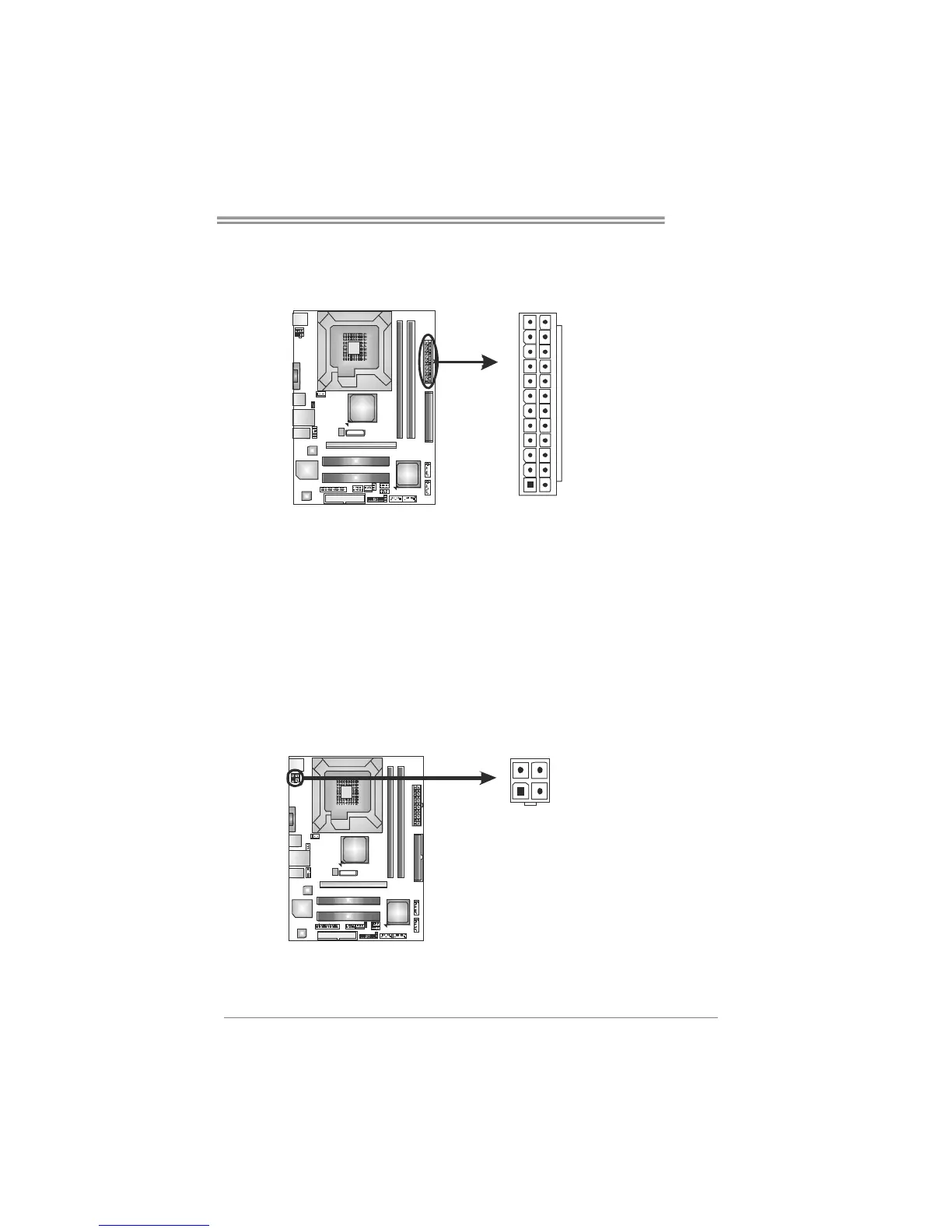

JATXPWR2: ATX Power Source Connector
This connector allows user to connect 24-pin power connector on the ATX
power supply.
1
12
13
24
Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V
JATXPWR1: ATX Power Source Connector
By connecting this connector, it will provide +12V to CPU power circuit.
Pin
Assignment
1 +12V
2 +12V
3 Ground
12
34
4 Ground
Note:
Before you power on the system, please make sure that both JATXPWR1 and
JATXPWR2 connectors have been plugged-in.

Other manuals for Biostar G41-M7

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Biostar G41-M7 and is the answer not in the manual?

Biostar G41-M7 Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetIntel G41
CPU SocketLGA 775
Memory TypeDDR2
Memory Slots2 x DIMM
Maximum Memory8 GB
Integrated GraphicsIntel GMA X4500
Expansion Slots1 x PCIe x16, 2 x PCI
Storage Interface4 x SATA 3Gb/s
USB Ports8 x USB 2.0
Video Outputs1 x VGA
LAN10/100 Mbps
AudioRealtek ALC662 6-Channel
