Biostar G41-M7 Setup Manual

Motherboard Manual
14

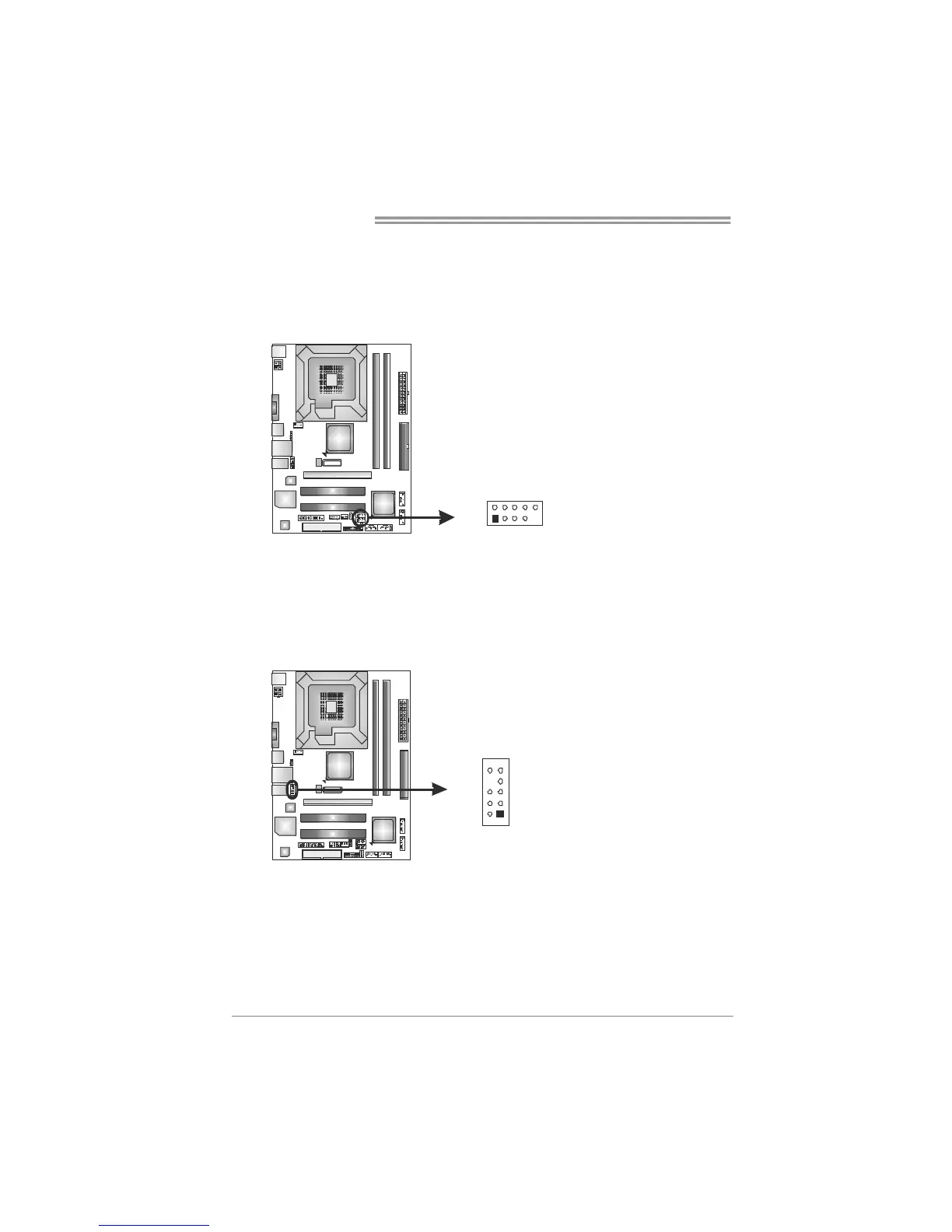

JUSB2/JUSB3: Headers for USB 2.0 Ports at Front Panel
This motherboard provides 2 USB 2.0 headers, which allows user to connect
additional USB cable on the PC front panel, and also can be connected with
internal USB devices, like USB card reader.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
19
2
10
JUSB2
JUSB3
10 NC
JAUDIOF1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. This header allows only HD audio front panel connector; AC’97 connector
is not acceptable.
Pin Assignment
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
10 Jack Sense
1
9
2
10

Biostar G41-M7 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
CPU Socket	LGA 775
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	8 GB
Integrated Graphics	Intel GMA X4500
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0
Video Outputs	1 x VGA
LAN	10/100 Mbps
Audio	Realtek ALC662 6-Channel
