Biostar G41-M7 Setup Manual

Motherboard Manual
16

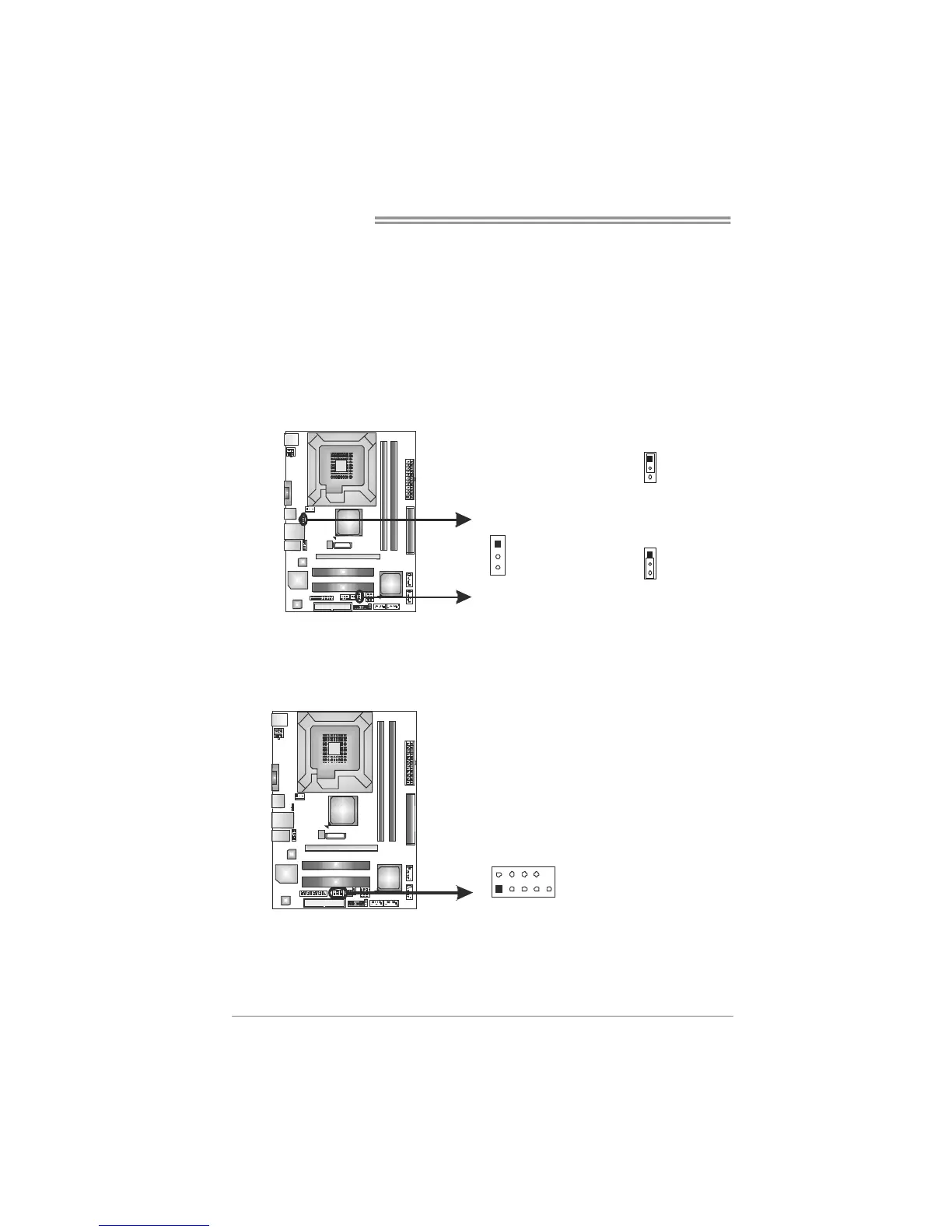

JUSBV1/JUSBV2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBV1: +5V for USB ports at USB1/JRJ45USB1.
JUSBV2: +5V for USB ports at USB2/USBB3.
Pin 2-3 Close:
JUSBV1: +5V STB for USB ports at USB1/JRJ45USB1.
JUSBV2: +5V STB for USB ports at USB2/USBB3.
3
1
Pin 1-2 close
3
1
JUSBV1
JUSBV2
3
1
Pin 2-3 close
JCOM1: Serial port Connector
The motherboard has a Serial Port Connector for connecting RS-232 Port.
Pin
Assignment
1 Carrier detect
2 Received data
3 Transmitted data
4 Data terminal ready
5 Signal ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator
10 Key
1
2
9
10

Biostar G41-M7 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
CPU Socket	LGA 775
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	8 GB
Integrated Graphics	Intel GMA X4500
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0
Video Outputs	1 x VGA
LAN	10/100 Mbps
Audio	Realtek ALC662 6-Channel
