Biostar G41-M7 Setup Manual

G41-M7
3
SPEC
Front Panel Connector x1 Supports front panel facilities
Front Audio Connector x1 Supports front panel audio function
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
System Fan Header x1 System Fan Power supply
Clear CMOS Head er x1 Restore CMOS dat a to factory default
USB Connector x2 Each connector supports 2 front panel USB ports
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
VGA port x1
LAN port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connect to D-SUB monitor
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size
182 (W) x 235 (L) mm
OS Support
Windows 2000 / XP / Vista 32 / Vista 64
Biostar reserves the right to add or remove support for
any OS with or without notice
1.4 R

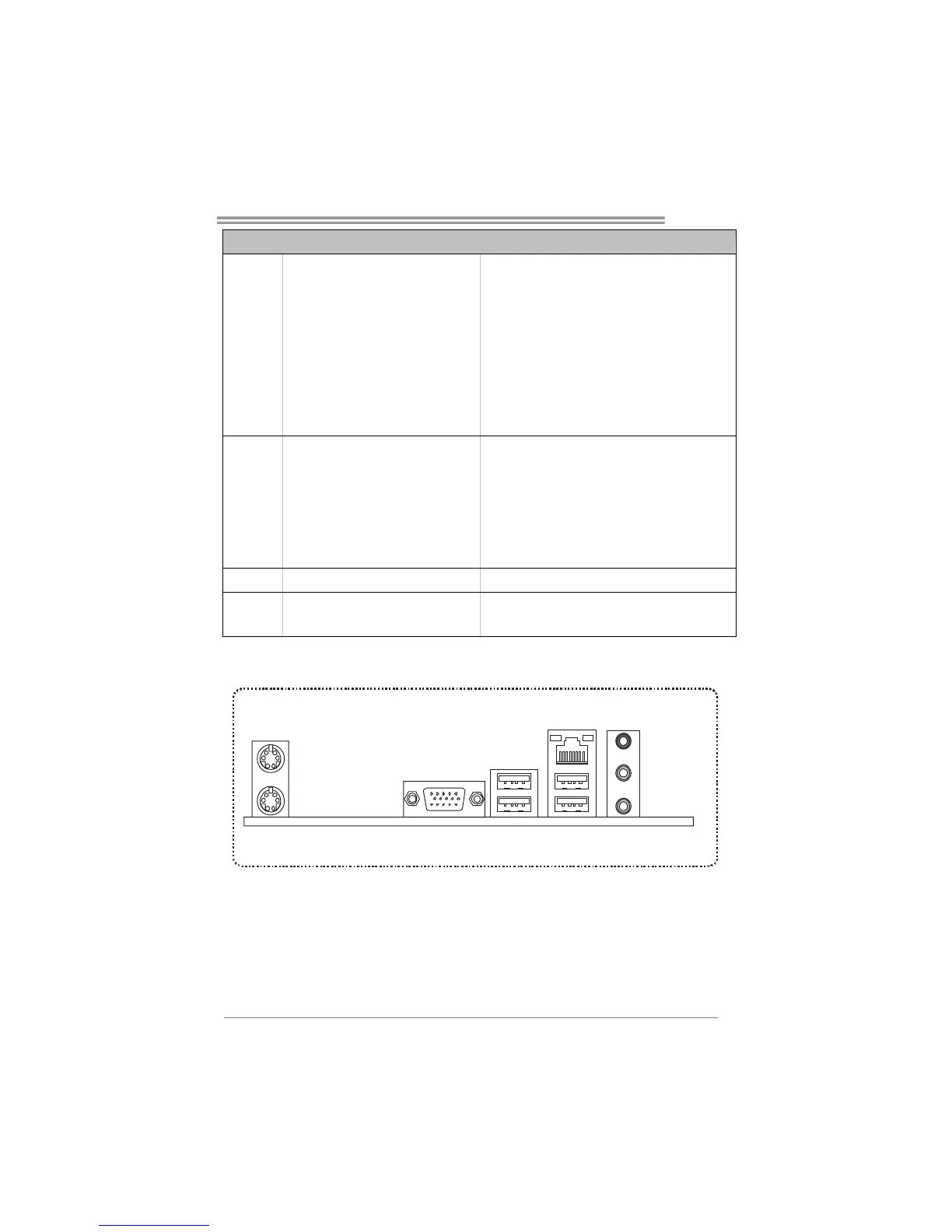

EAR PANEL CONNECTORS
PS/ 2
Mouse
PS/2
Keyboard
USBX2USBX2
LAN
VGA
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
Since the audio chip supports High Definition Audio Specification, the function of each audio
jack can be defined by software. The input / output function of each audio jack listed above
represents the default setting. However, when connecting external microphone to the audio port,
please use the Line In (blue) and Mic In (Pink) audio jack.

Biostar G41-M7 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
CPU Socket	LGA 775
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	8 GB
Integrated Graphics	Intel GMA X4500
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0
Video Outputs	1 x VGA
LAN	10/100 Mbps
Audio	Realtek ALC662 6-Channel
