Biostar G41-M7 Setup Manual

Name: Biostar G41-M7
Brand: Biostar
Rating: 4 (1 reviews)

Go to English

47 pages

To Next Page

To Previous Page

Motherboard Manual

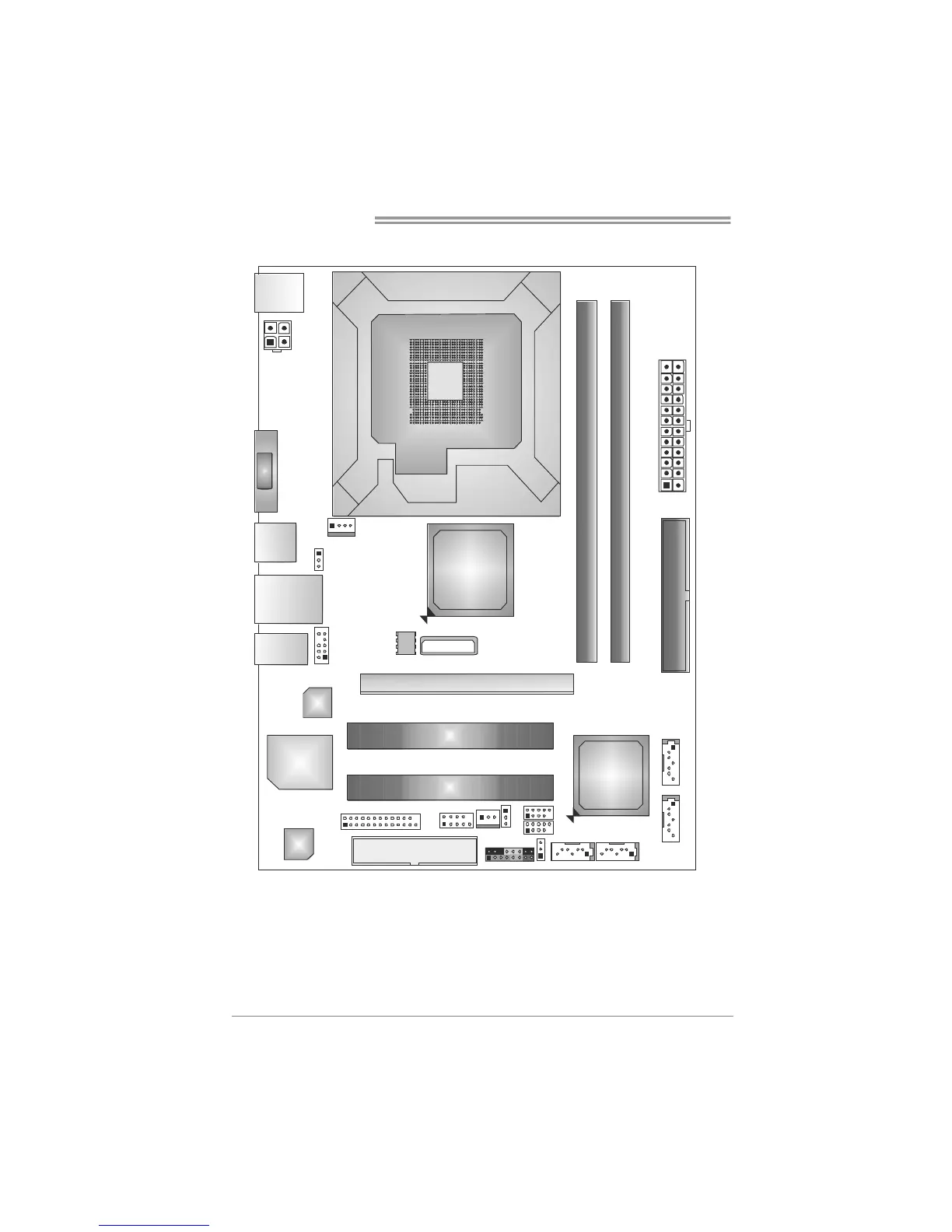

1.5 MOTHERBOARD LAYOUT

JKBMS1

JATXPWR1

JCFAN1

JUSBV1

JVGA1

JUSB1

JRJ45USB1

JAUDIO1

LAN

Super

I/O

Codec

FDD1

JPRNT1

JCOM1

PCI1

PCI2

PEX1 6_ 1

BATTERY

BIOS

JSFAN1

JUSBV2

JPAN EL 1 JCMO S1

JUSB3

JUSB2

SATA1 SATA2

SATA3

SATA4

Intel

ICH7

IDE1

JAT XPWR2

DDR2_B1

DDR2_A1

Intel

G41

JAUDIO F1

LGA775

CPU1

Note: ■ represents the 1

pin.

Other manuals for Biostar G41-M7

Bios Setup Manual35 pages

Bios Guide36 pages

Questions and Answers:

Need help?

Do you have a question about the Biostar G41-M7 and is the answer not in the manual?

Biostar G41-M7 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
CPU Socket	LGA 775
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	8 GB
Integrated Graphics	Intel GMA X4500
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0
Video Outputs	1 x VGA
LAN	10/100 Mbps
Audio	Realtek ALC662 6-Channel
