Biostar GF7050V-M7 SE

Motherboard Manual
10
2.4 CONNECT ORS AND SLOTS

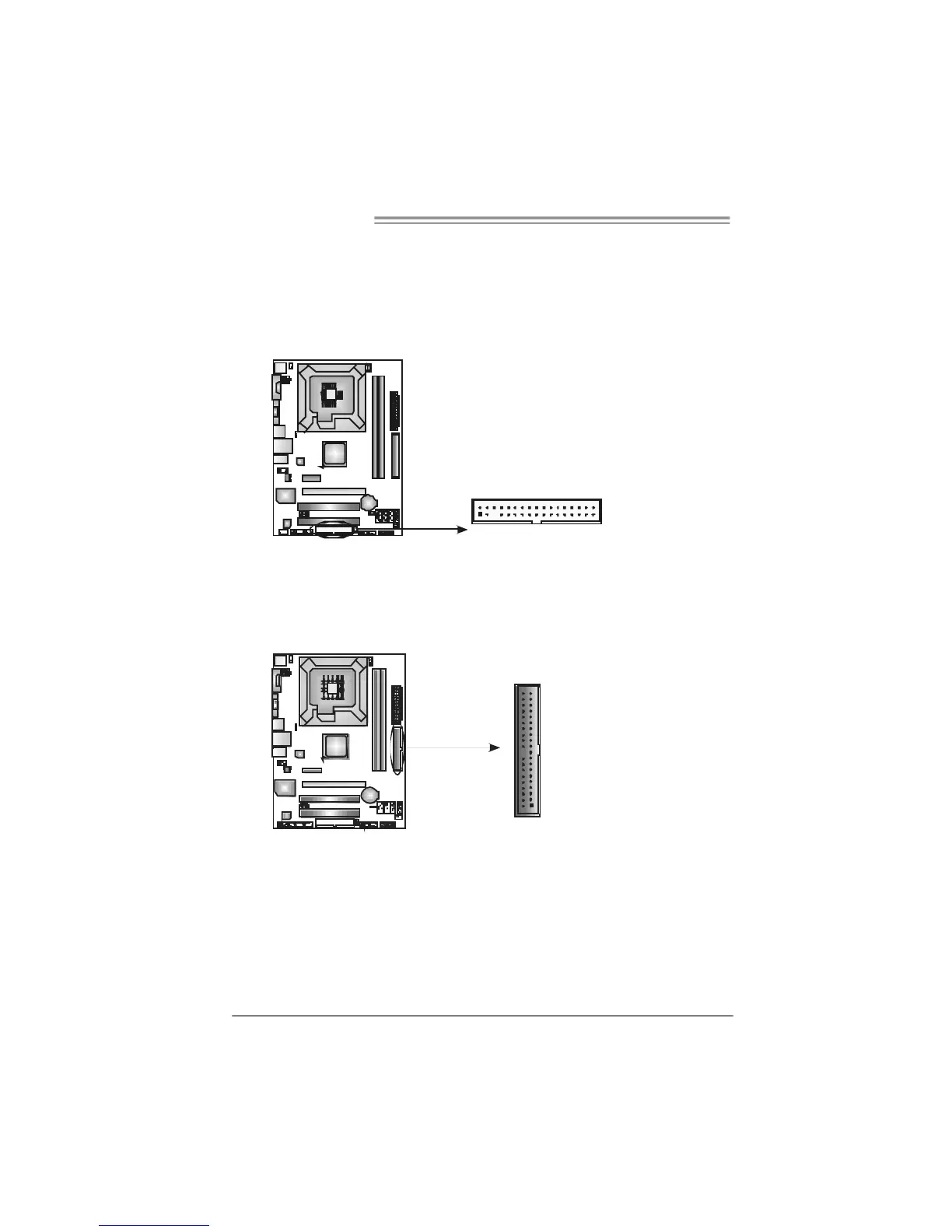

FDD1: Floppy Disk Conne ctor
The motherboard prov ides a standard floppy disk connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk ty pes. This connector supports the
prov ided f loppy drive ribbon cables.
1
234
33
ID E1: Hard Disk C onne ctor
The motherboard has a 32-bit Enhanced PCI IDE Controller that prov ides PIO
Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 f unctionality.
The IDE connector can connect a master and a slave drive, so y ou can connect
up to two hard disk driv es.
40
21
39
