Motherboard Manual
12
CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 H
OW T O SET UP JUMPERS

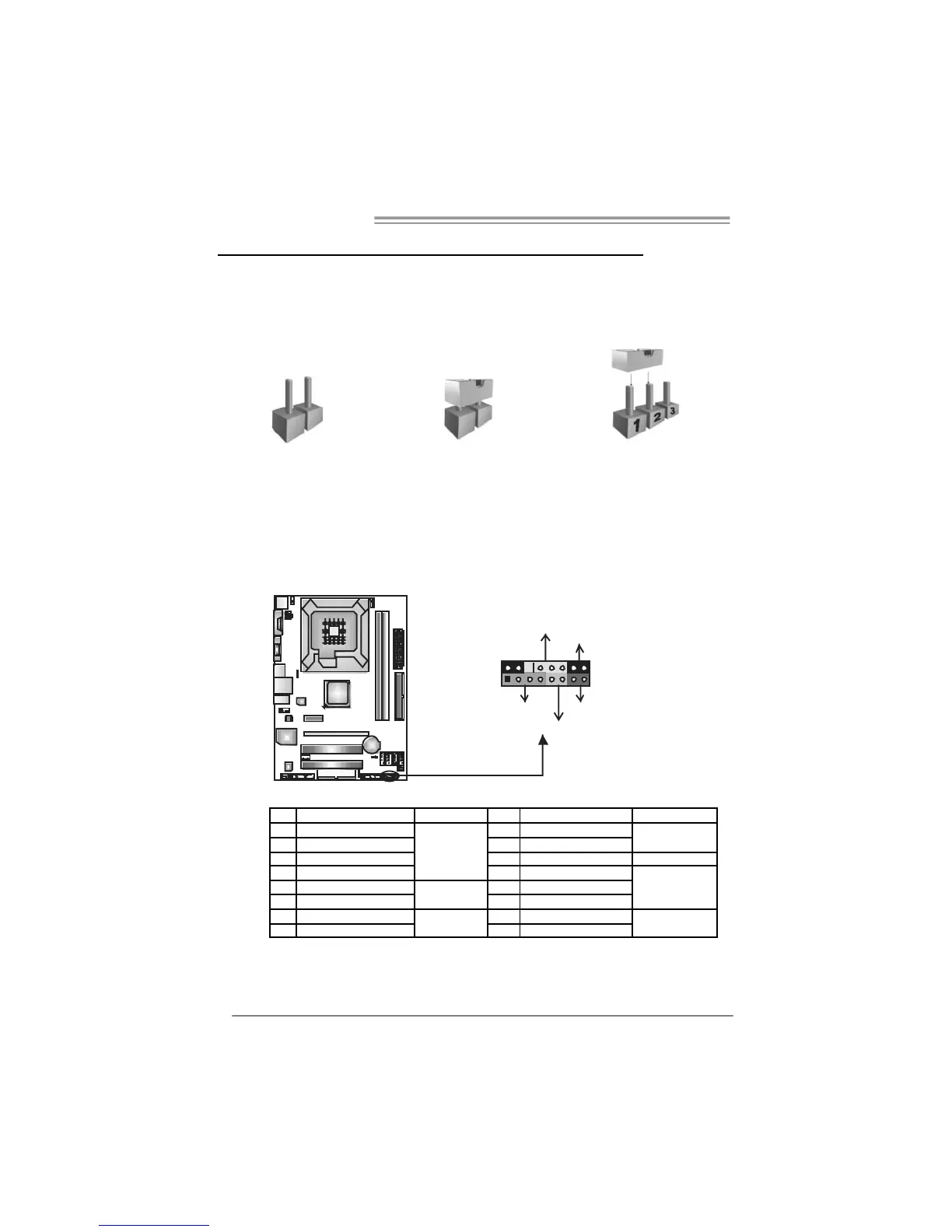

The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper isclose”, if not, that means the jumper is
open”.
Pin opened Pin closed Pin1-2 closed
3.2 DET AIL SET T ING S
JPANEL1: Front Panel Header
This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and
speaker connections. It allows user to connect the PC case’s f ront panel switch
functions.
1
PWR_LED
ON/OFF
RST
HL ED
SPK
++
+
9
-
-
8
16
Pin Assignment Function Pin Assignment Functio n
1 +5V 9 N/A
2 N/A 10 N/A
N/A
3 N/A 11 N/A N/A
4 Speaker
Speaker
Connector
12 Power LE D (+)
5 HDD LED (+) 13 Power LED (+)
6 HDD LED (-)
Hard drive
LED
14 Power LE D (-)
Power LED
7 Ground 15 Power button
8 Reset control
Reset button
16 Ground
Power-on button
