JSPDIF_OUT1: Digital Audio out Connectors

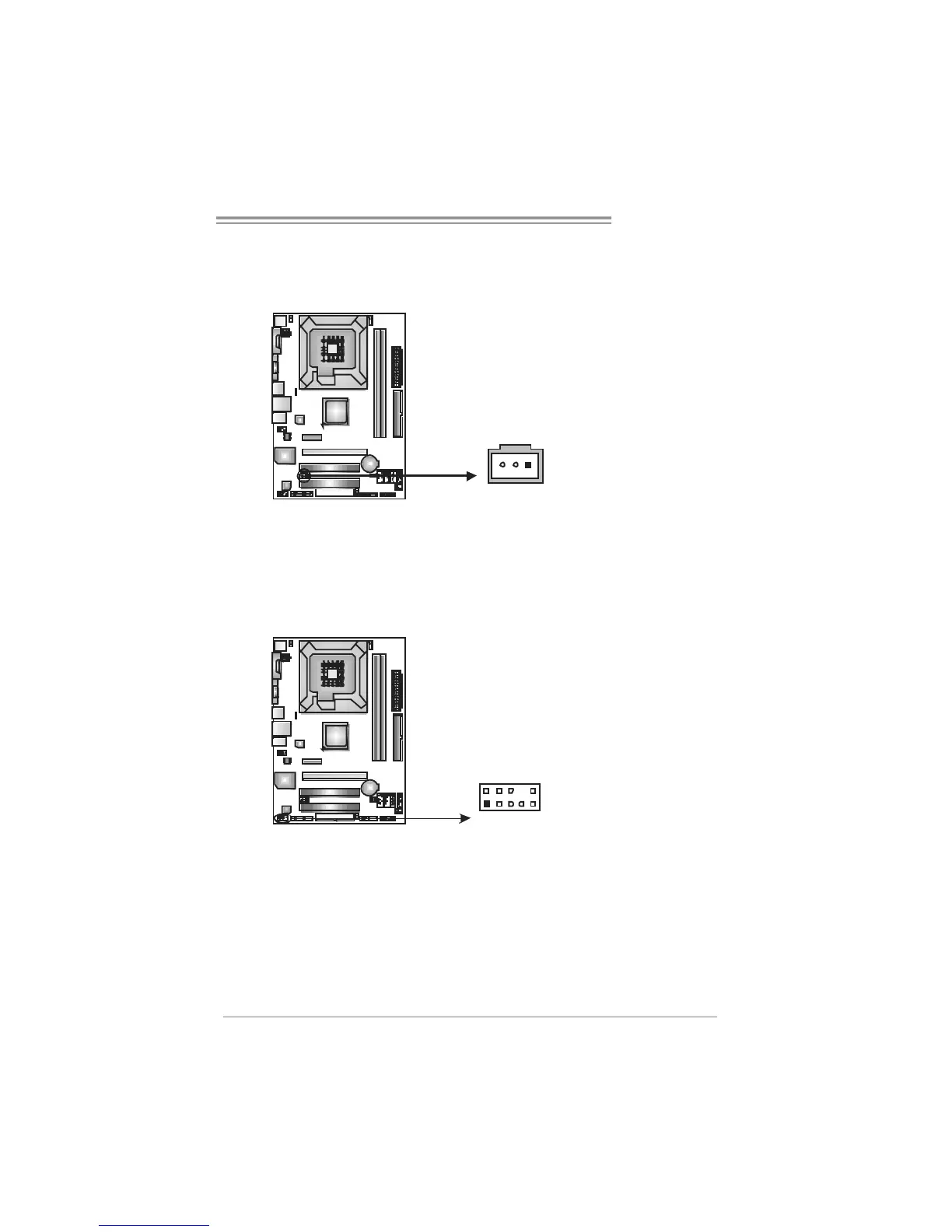

This connector allows user to connect the PCI bracket SPDIF output header.
Pin Assignment
1 +5V
2 SPDIF_OUT1
13
3 Ground
JAUDIO F1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC f ront
panel. This header allows only HD audio front panel connector; AC’97 connector
is not acceptable.
Pin Assignment
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
10 Jack Sense
19
2
10
