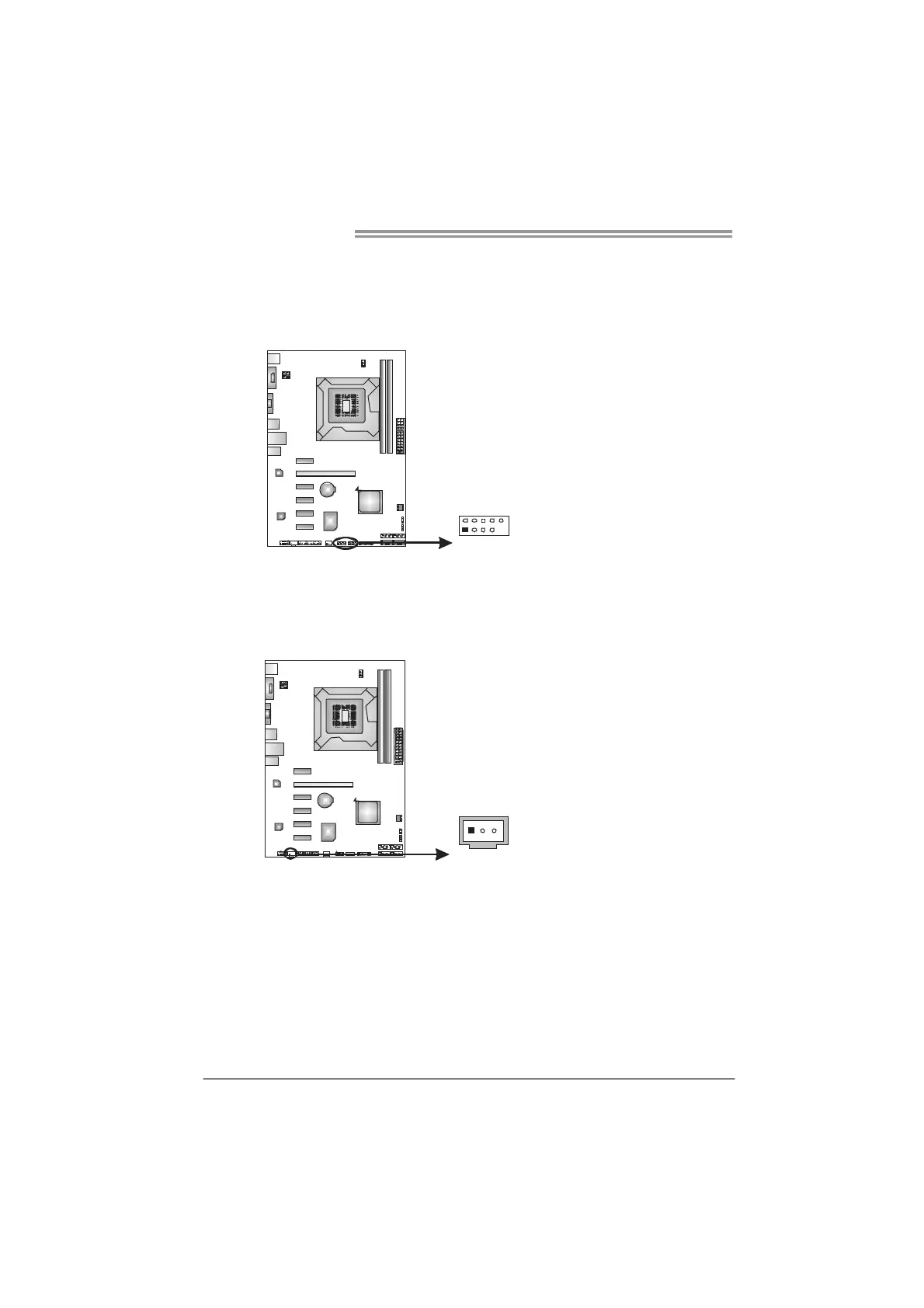

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel
These headers allow users to connect additional USB cable on the PC front
panel, and also can be connected with internal USB devices, like USB card
reader.
1
2
9
10
F_ USB1USB2 F_
Pin
Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
10 NC
JSPDIFOUT1: Digital Audio-out Connector
This connector allows users to connect the PCI bracket SPDIF output header.
31
Pin
Assignment
1 +5V
2 SPDIF_OUT
3 Ground
