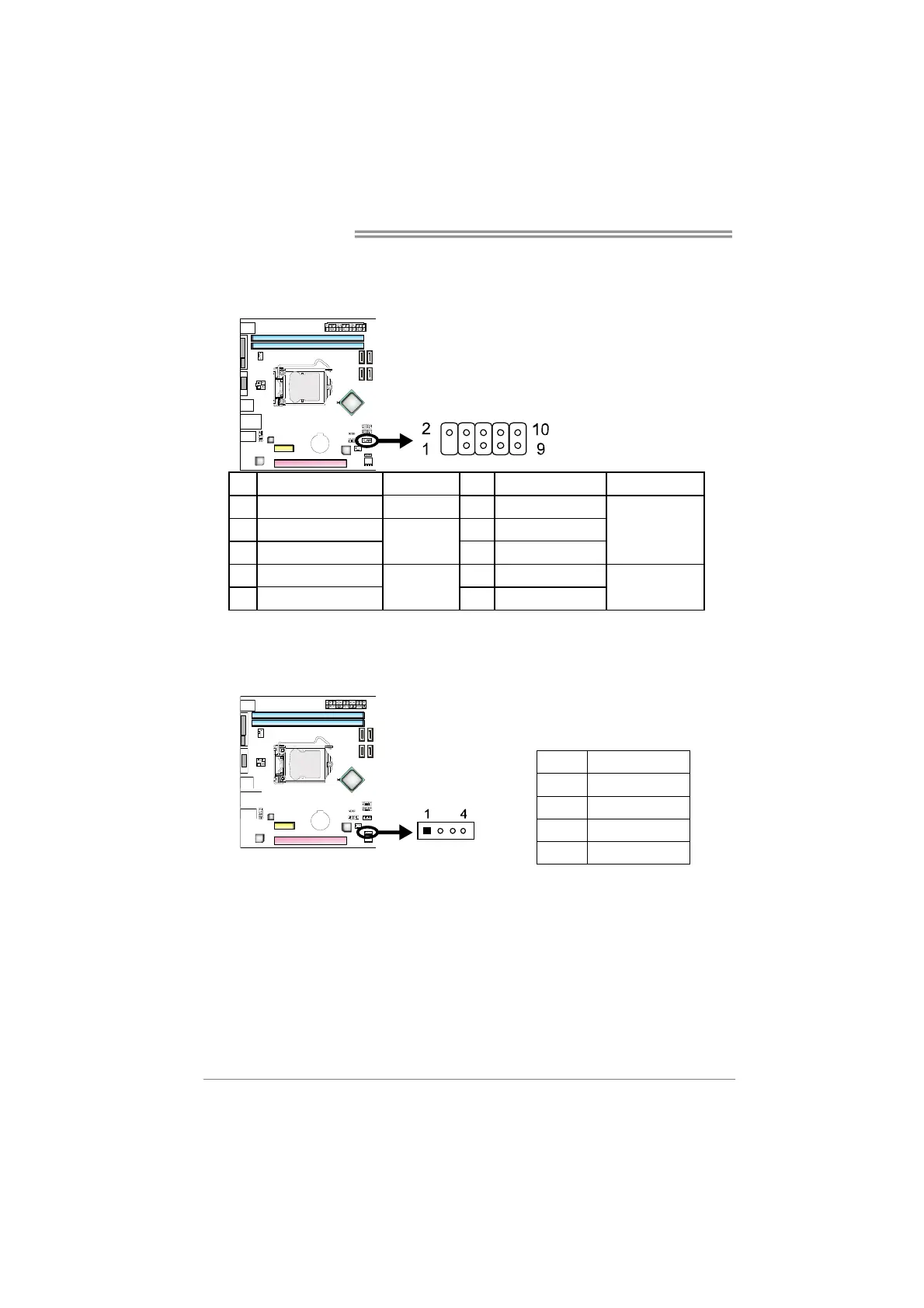

Motherboard Manual
16
JPANEL1: Front Panel Header
This connector includes Power-on, Reset, HDD LED and Power LED connections.
It allows user to connect the PC case’s front panel switch functions.
Pin Assignment Function Pin Assignment Function
1 N/A N/A 2 Power LED (+)
Power LED
3 HDD LED(+)
HDD LED
4 Power LED (+)
5 HDD LED(-) 6 Power LED (-)
7 Ground
Reset Button
8 Power Button
Power-On Button
9 Reset Control 10 Ground
JSPKR1: Chassis Speaker Header
Please connect the chassis speaker to this header.
Pin Assignment
1 +5V
2 N/A
3 N/A
4 Speaker
