H81MHV3/H81MDV3/H81MGV3/H81MLV3/H81MHV3L

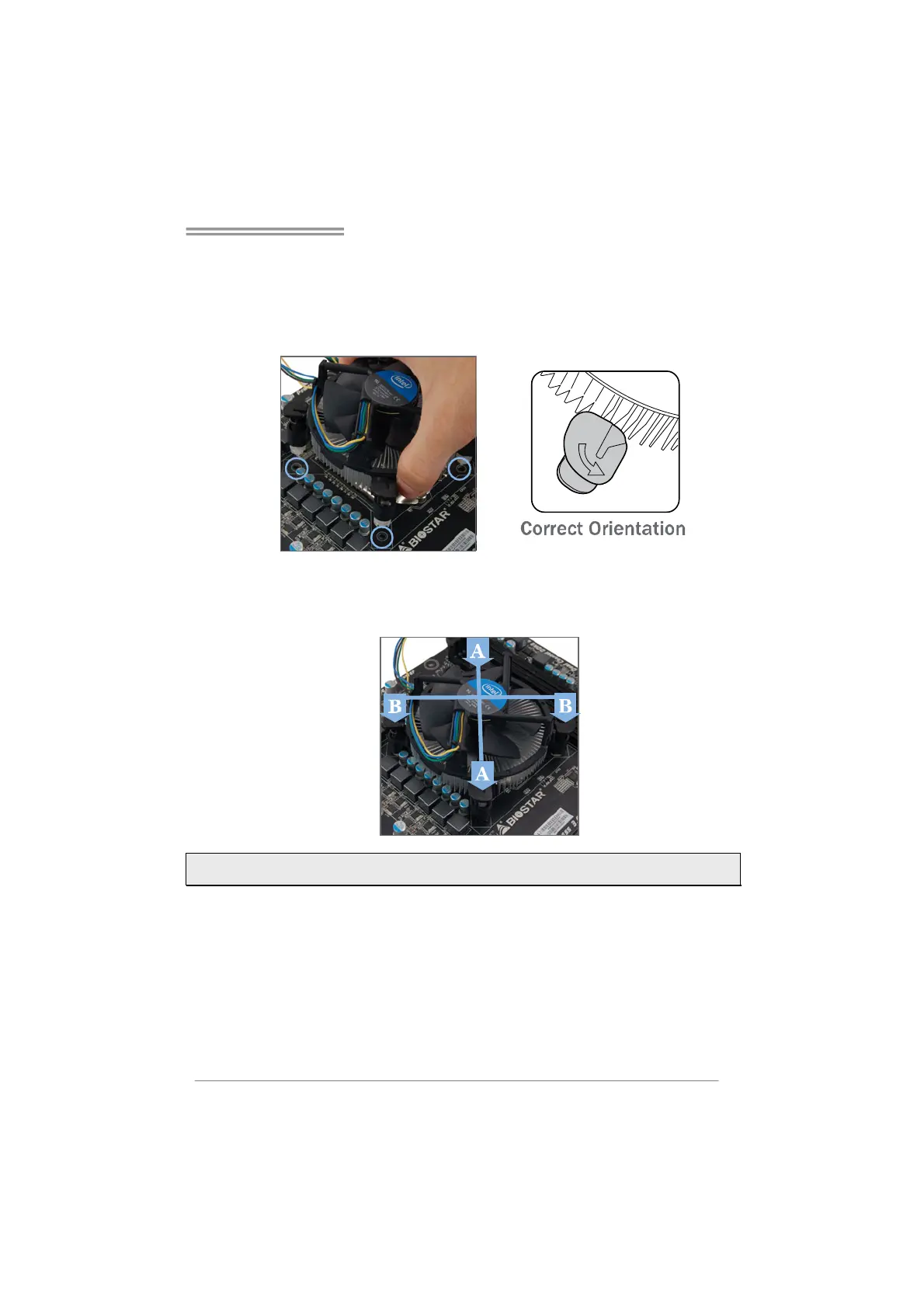

2.2 Install a Heatsink

Step 1: Place the CPU fan assembly on top of the installed CPU and make sure

that the four fasteners match the motherboard holes. Orient the assembly

and make the fan cable is closest to the CPU fan connector.

Ensure the fastener slots are pointing perpendicular to the heatsink.

Step 2: Press down two fasteners at one time in a diagonal sequence to secure

the CPU fan assembly in place. As each fastener locks into position a click

should be heard.

Note1: Do not forget to connect the CPU fan connector.

Note2: For proper installation, please kindly refer to the installation manual of your CPU heatsink.
