Biostar H81MHV3 User Manual

H81MHV3/H81MDV3/H81MGV3/H81MLV3/H81MHV3L
5
CHAPTER 2: HARDWARE INSTALLATION

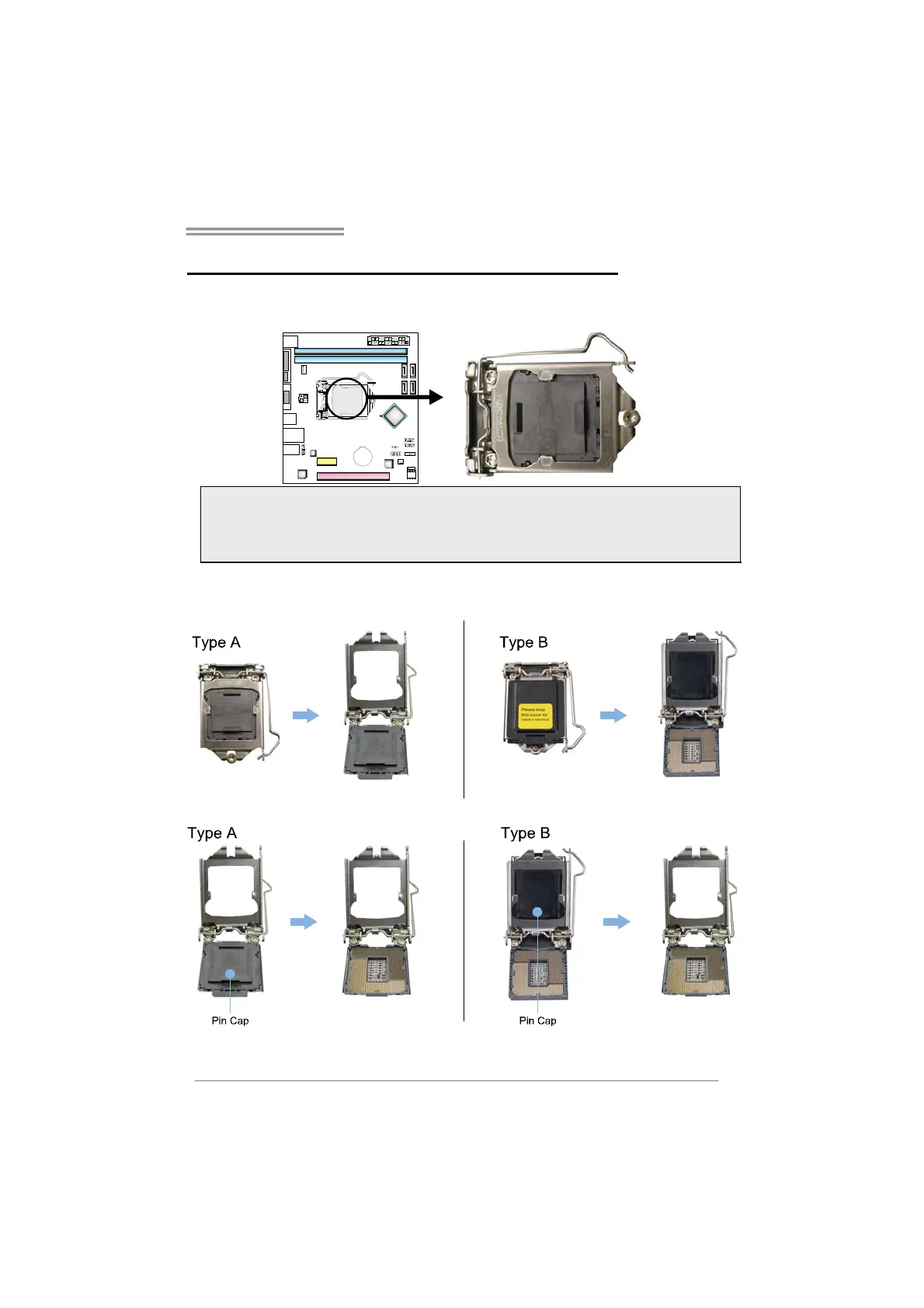

2.1 Install Central Processing Unit (CPU)
Step 1: Locate the CPU socket on the motherboard
Note1: Remove Pin Cap before installation, and make good preservation for future use. When
the CPU is removed, cover the Pin Cap on the empty socket to ensure pin legs won’t be
damaged.
Note2: The motherboard might equip with two different types of pin cap. Please refer below
instruction to remove the pin cap.
Step 2: Pull the socket locking lever out from the socket and then raise the lever
up.
Step 3: Remove the Pin Cap.

Biostar H81MHV3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H81
CPU Socket	LGA 1150
Memory Slots	2 x DIMM
Maximum Memory	16GB
Memory Standard	DDR3 1600/1333
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1
Storage Interface	2 x SATA 6Gb/s, 2 x SATA 3Gb/s
Audio	Realtek ALC662 6-Channel
LAN	Realtek RTL8111G - 10/100/1000 Mbps
Video Outputs	1 x VGA, 1 x HDMI
Power Connector	24-pin ATX, 4-pin ATX 12V
USB Ports	2 x USB 3.0, 4 x USB 2.0
