Biostar Hi-Fi Z77X Setup Manual

Hi-Fi Z77X
11
2.4 CONNECTORS AND SLOTS

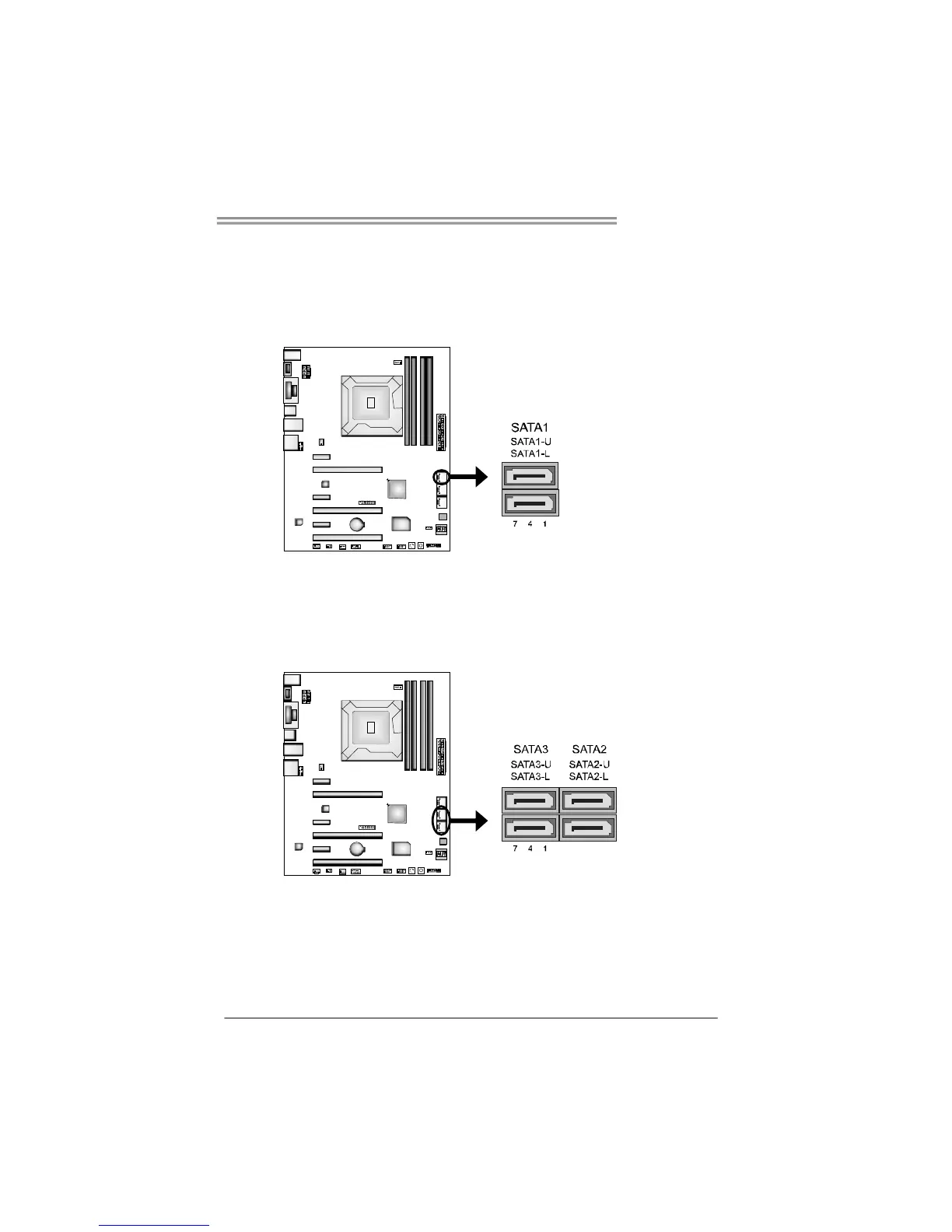

SATA1: Serial ATA3.0 Connectors
These connectors connect to SATA hard disk drives via SATA cables.
Those satisfy the SATA 3.0 spec and with transfer rate of 6.0Gb/s.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
SATA2/3: Serial ATA2.0 Connectors
These connectors connect to SATA hard disk drives via SATA cables.
Those satisfy the SATA 2.0 spec and with transfer rate of 3.0Gb/s.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
