Biostar HI-FI-Z87X-3D User Manual

Hi-Fi Z87X 3D
9

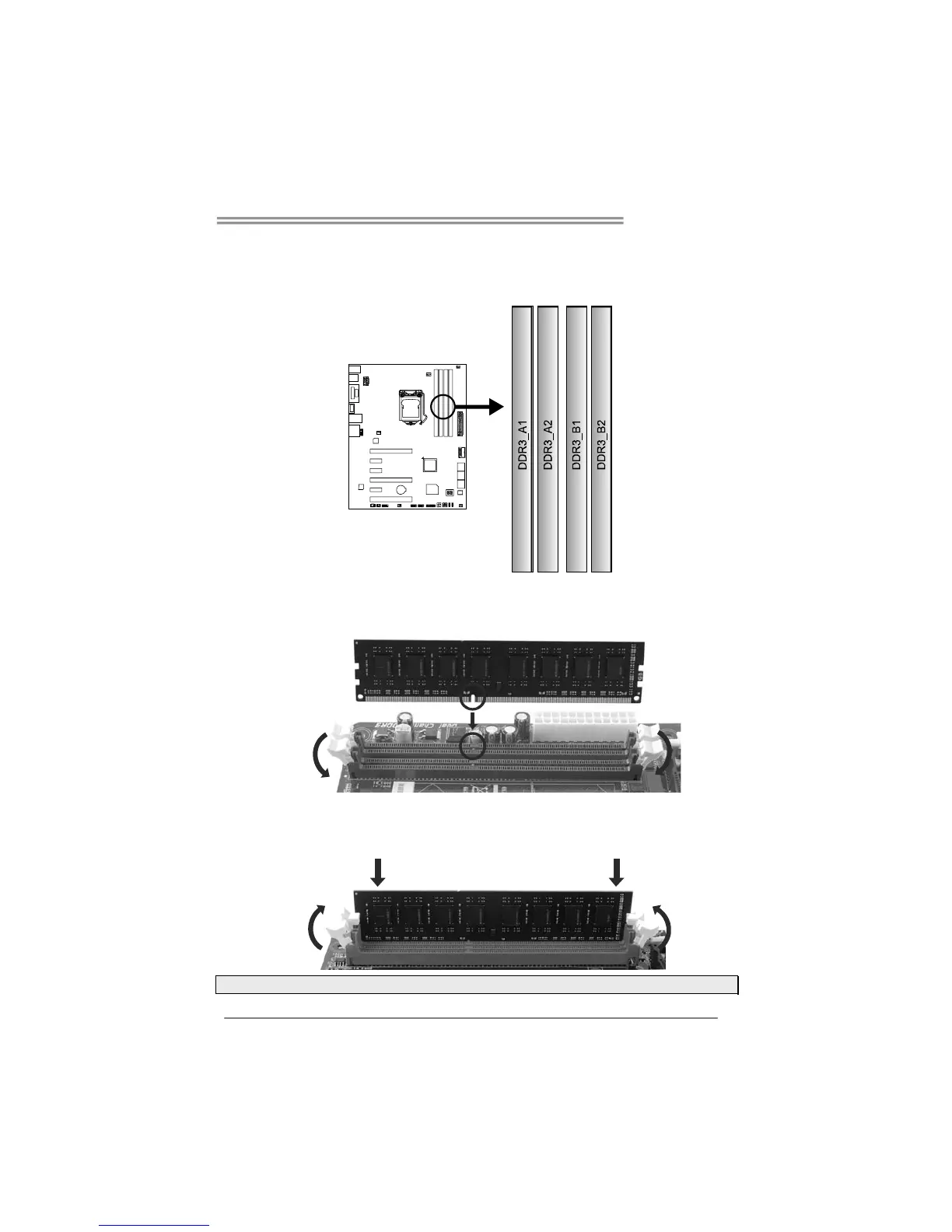

2.4 Install System Memory
DDR3 Modules
Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM
on the slot such that the notch on the DIMM matches the break on the slot.
Step 2: Insert the DIMM vertically and firmly into the slot until the retaining chip snap
back in place and the DIMM is properly seated.
Note: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Biostar HI-FI-Z87X-3D Specifications

General

Brand	Biostar
Model	HI-FI-Z87X-3D
Category	Motherboard
Language	English
