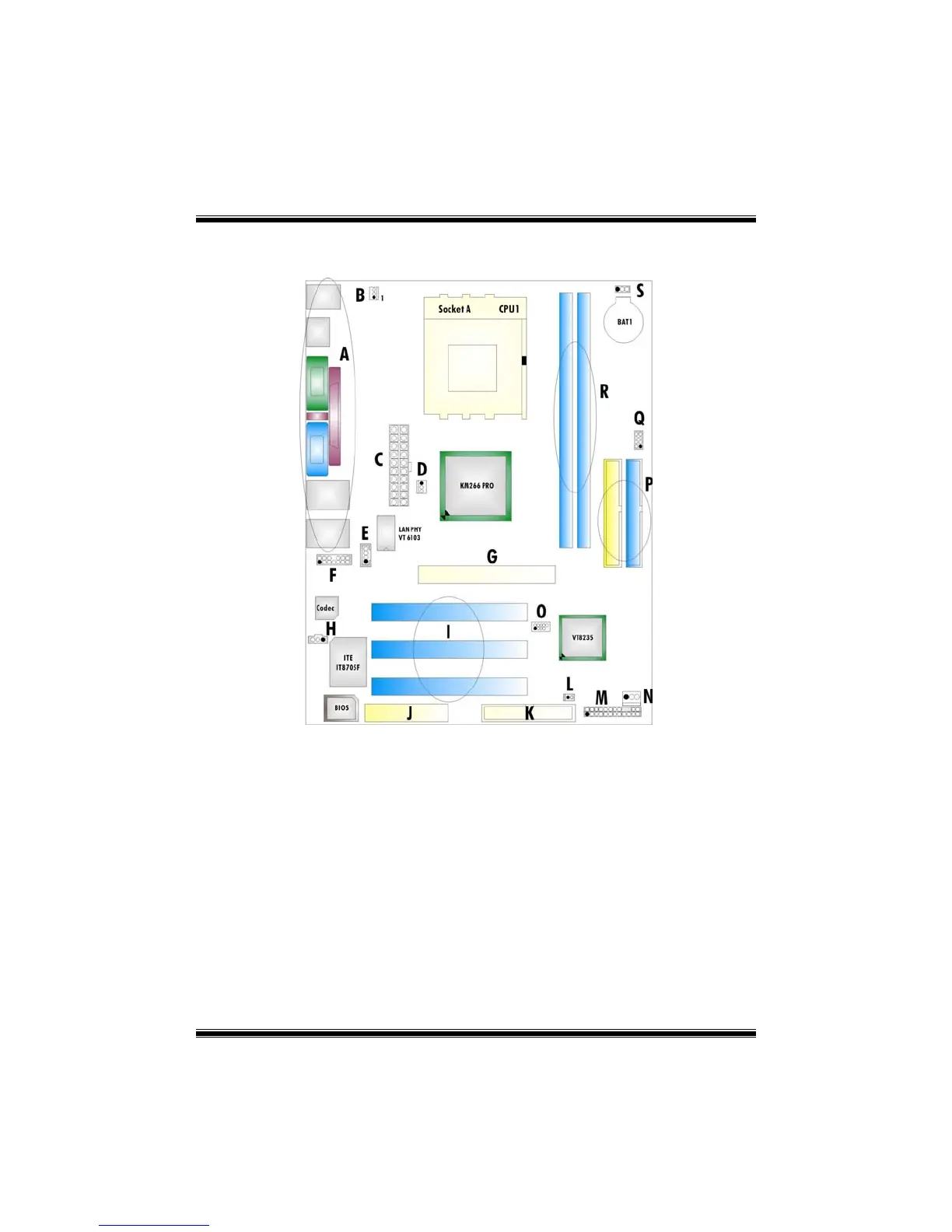

Components Index
A. Back Panel Connectors K. Floppy Disk Connector (FDD1)
B. CPU Fan Connector (JCFAN1) L. Case Open Connector (JCI1)*
C. ATX Power Connector (JATXPWER1) M. Front Panel Connector (JPANEL1)
D. North Bridge Fan Connector (JNFAN1)* N. System FAN Header (JSFAN1)
E. CD-ROM Audio-In Header (JCDIN1) O. Front USB Headers (JUSB2)
F. Front Audio Header (JF_AUDIO1) P. IDE Connectors (IDE1-2)
G. Accelerated Graphics Port Slot (AGP1) Q. Frequency Selection (JCLK1)
H. Digital Audio Connector (JSPDIF1)* R. DDR Modules (DDR1-2)
I. PCI BUS Slots (PCI 1-3) S. Clear CMOS Function (JCMOS1)
J. Communication Network Riser Slot
(CNR1)* * stands for “optional”.
