Biostar MCP6P M2 PLUS

Motherboard Manual
18

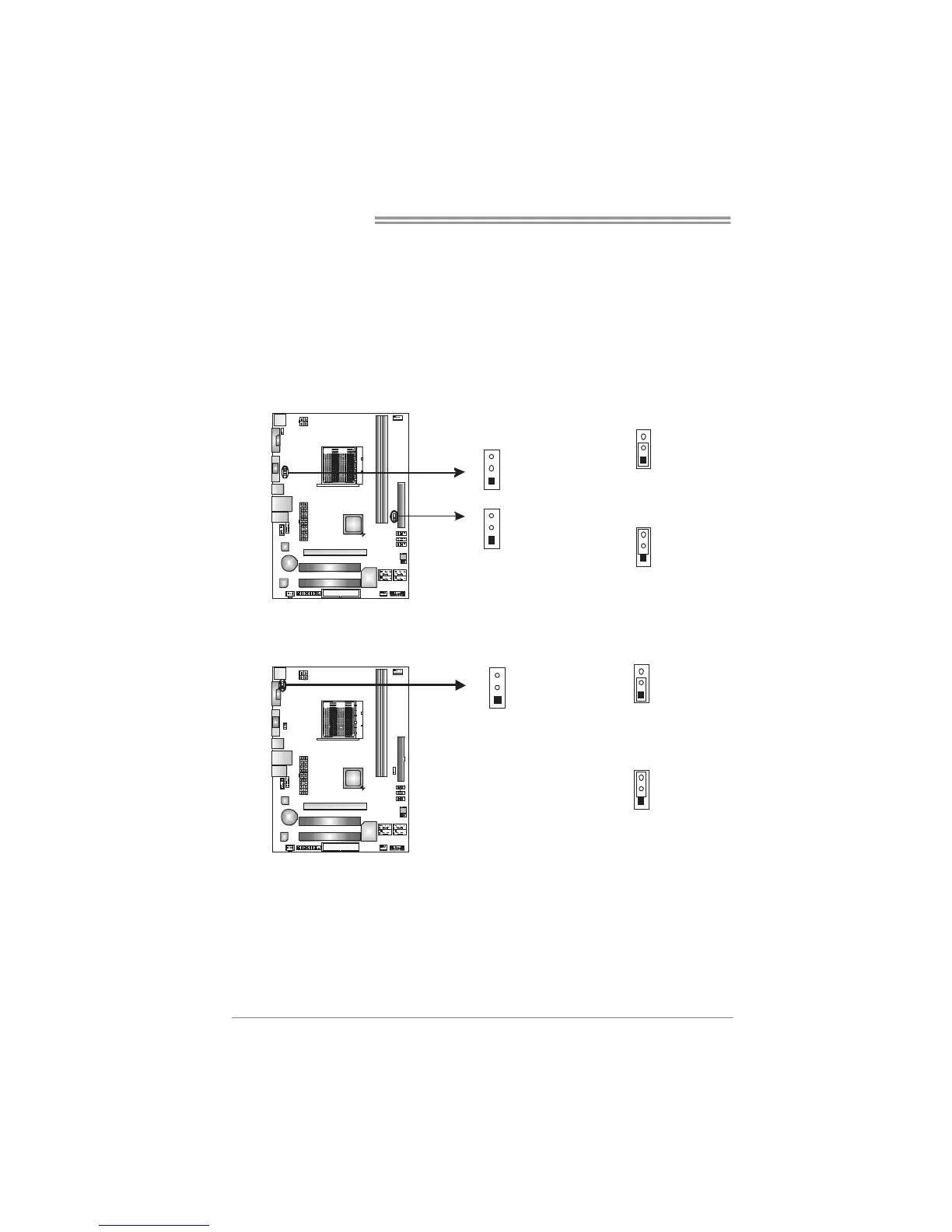

JUSBPWR1/JUSBPWR2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBPWR1: +5V for USB ports at JUSB1/JUSBLAN1.
JUSBPWR2: +5V for USB ports at front panel (JUSB2/JUSB3/JUSB4).
Pin 2-3 Close:
JUSBPWR1: +5V STB for USB ports at JUSB1/JUSBLAN1.
JUSBPWR2: +5V STB for USB ports at front panel (JUSB2/JUSB3/JUSB4).
1
3
Pin 1-2 close
1
3
JUSBPWR1
JUSBPWR2
1
3
1
3
Pin 2-3 close
JKB_PWR: Power Source Header for PS/2 Keyboard and Mouse
1
3
Pin 1-2 close
+5V for PS/2 keyboard and
mouse.
1
3
1
3
Pin 2-3 close
+5V STB for PS/2 keyboard and
mouse.
