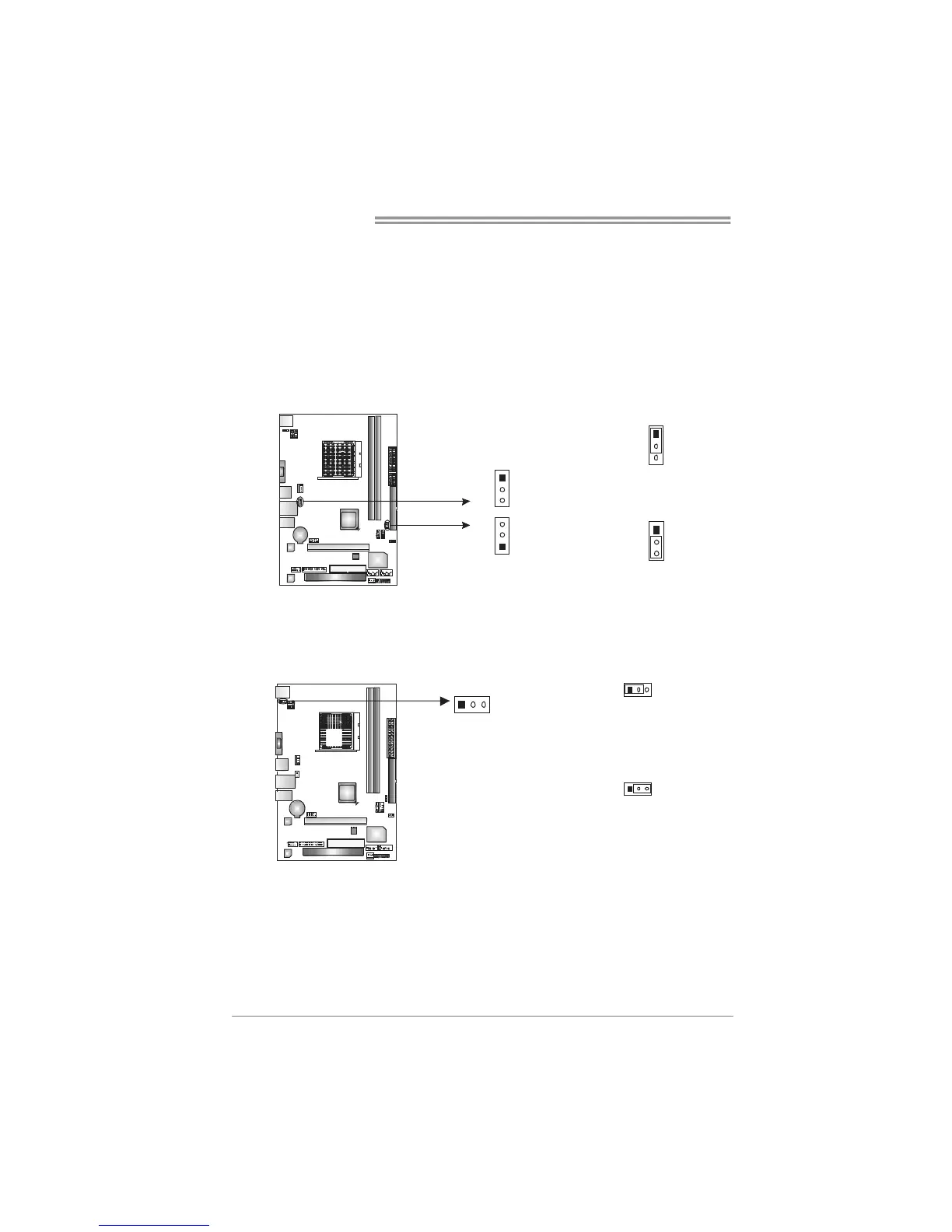

JUSBPWR1/JUSBPWR2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBPWR1: +5V for USB ports at JUSB1/JUSBLAN1.
JUSBPWR2: +5V for USB ports at front panel (JUSB2/JUSB3).
Pin 2-3 Close:
JUSBPWR1: +5V STB for USB ports at JUSB1/JUSBLAN1.
JUSBPWR2: +5V STB for USB ports at front panel (JUSB2/JUSB3).
1
3
Pin 1-2 close
1
3
JUSBPWR1
1
3
JUSBPWR2
1
3
Pin 2-3 close
JKB_PWR: Power Source Header for PS/2 Keyboard and Mouse
31
Pin 1-2 close
+5V for PS/2 keyboard and
mouse.
31
31
Pin 2-3 close
+5V STB for PS/2 keyboard
and mouse.
