P4M900-M4
18
AGP & P2P Bridge Control
Highlight “Press Enter” next to the “AGP & P2P Bridge Control” label and
pressing the enter key will take you a submenu with the following options:

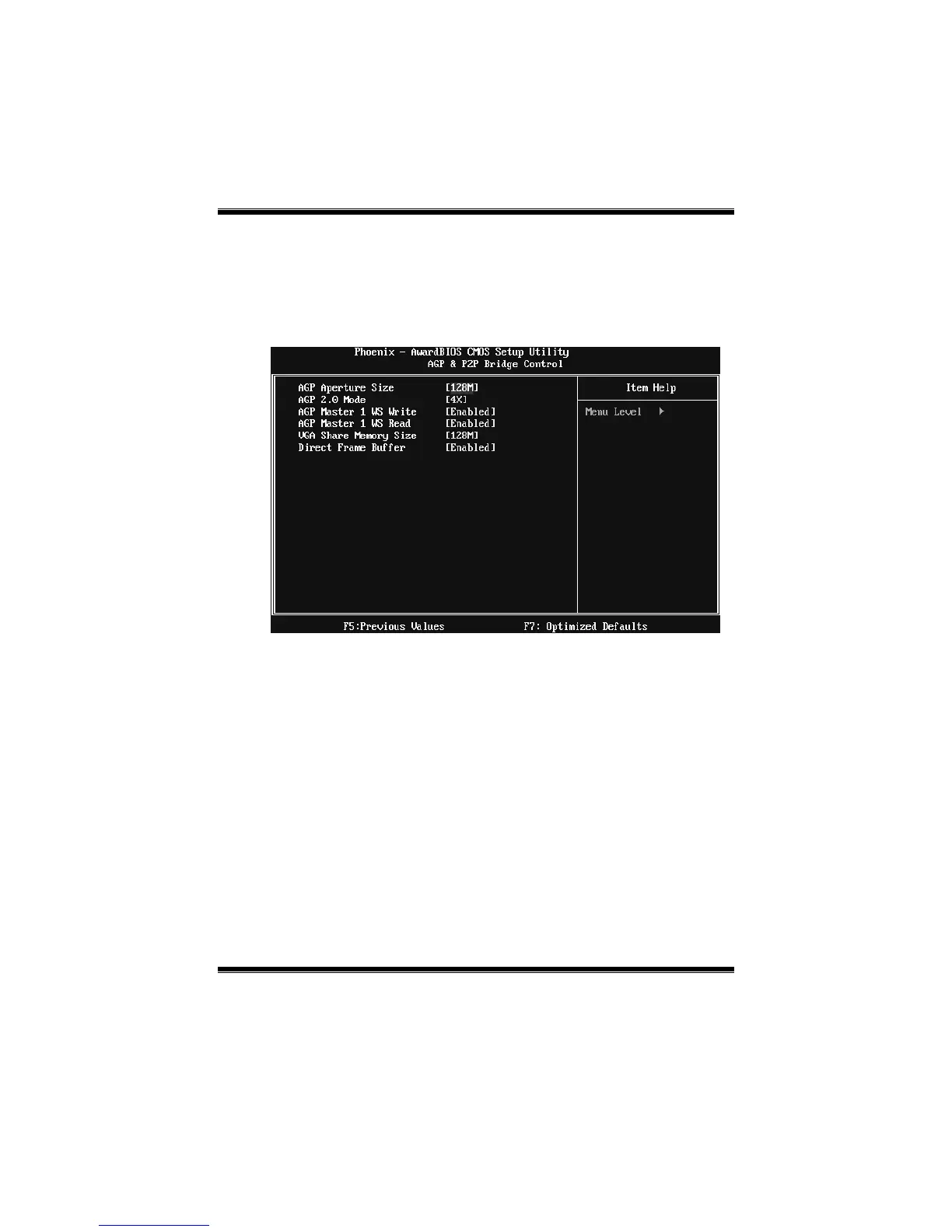

Figure 4.1: AGP & P2P Bridge Control
AGP Aperture Size
Select the size of the Accelerated Graphics Port (AGP) aperture. The aperture
is a portion of the PCI memory address range dedicated for graphics memory
address space. Host cycles that hit the aperture range are forwarded to the AGP
without the need of translation.
The Choices: 32M, 64M, 128M (default), 256M.
AGP 2.0 Mode
T his item allows you to select the AGP Mode.
The Choices: 4X (default), 8X.
AGP Mast er 1 WS Wr ite
When enabled, writes to the AGP (Accelerated Graphics Port) are executed
with one wait states.
The Choices: Enabled (default), Disabled.
