Motherboard Manual

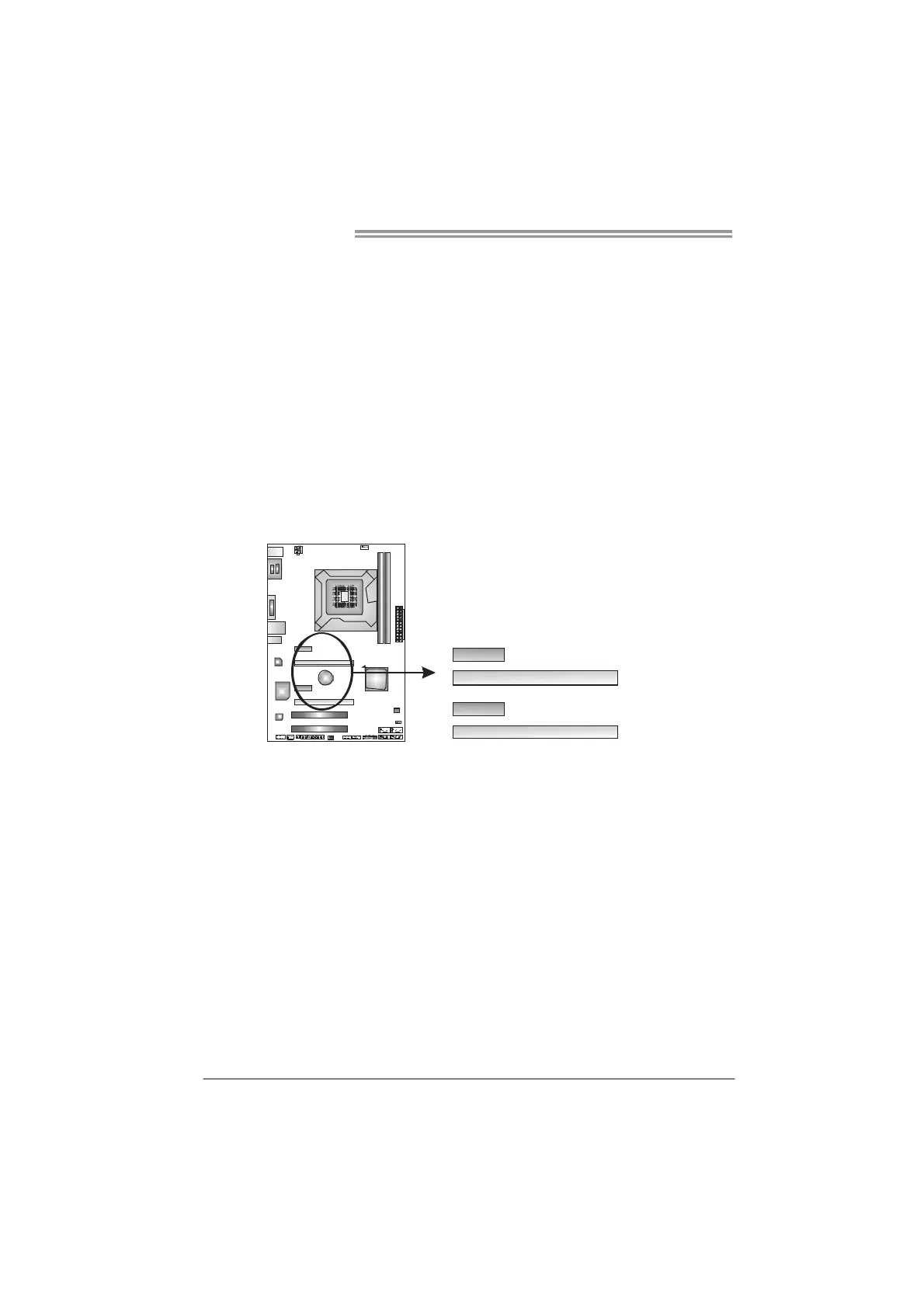

PEX16_1: PCI-Express Gen3 x16 Slot

- PCI-Express 3.0 compliant.

- Maximum theoretical realized bandwidth of 16GB/s simultaneously per

direction, for an aggregate of 32GB/s totally.

- PCI-E 3.0 is supported by Core i7-3xxx / i5-3xxx CPU.

PEX16_2: PCI-Express Gen2 x1 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 500MB/s simultaneously per

direction, for an aggregate of 1GB/s totally.

PEX1_1/PEX1_2: PCI-Express Gen2 x1 Slots

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.

- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.

PEX16_1

PEX1_2

PEX1_1

PEX16_2

Biostar TH61A User Manual
