TH61A
3
SPEC
System Fan Header x1 System Fan Power supply
Clear CMOS Head er x1 Restore CMOS dat a to factory default
USB2.0 Connector x2 Each connector supports 2 front panel USB2.0 ports
Consumer IR Connector x1 Supports infrared function
S/PDIF out Connector x1 Supports digital audio out function
Printer Port Connector x1 Each connector supports 1 Printer port
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Rear Panel
I/O
PS/2 Keyboard / Mouse x1
VGA Port x1
DVI-D Port x1
Serial Port x1
LAN port x1
USB2.0 Port x4
Audio Jack x3
Connects to PS/2 Keyboard / Mouse
Connect to D-SUB monitor
Connect to DVI monitor
Provide RS-232 Serial connection
Connect to RJ-45 ethernet cable
Connect to USB2.0 devices
Provide Audio-In/Out and Mic. connection
Board Size
210 (W) x 305 (L) mm
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove support
for any OS with or without notice

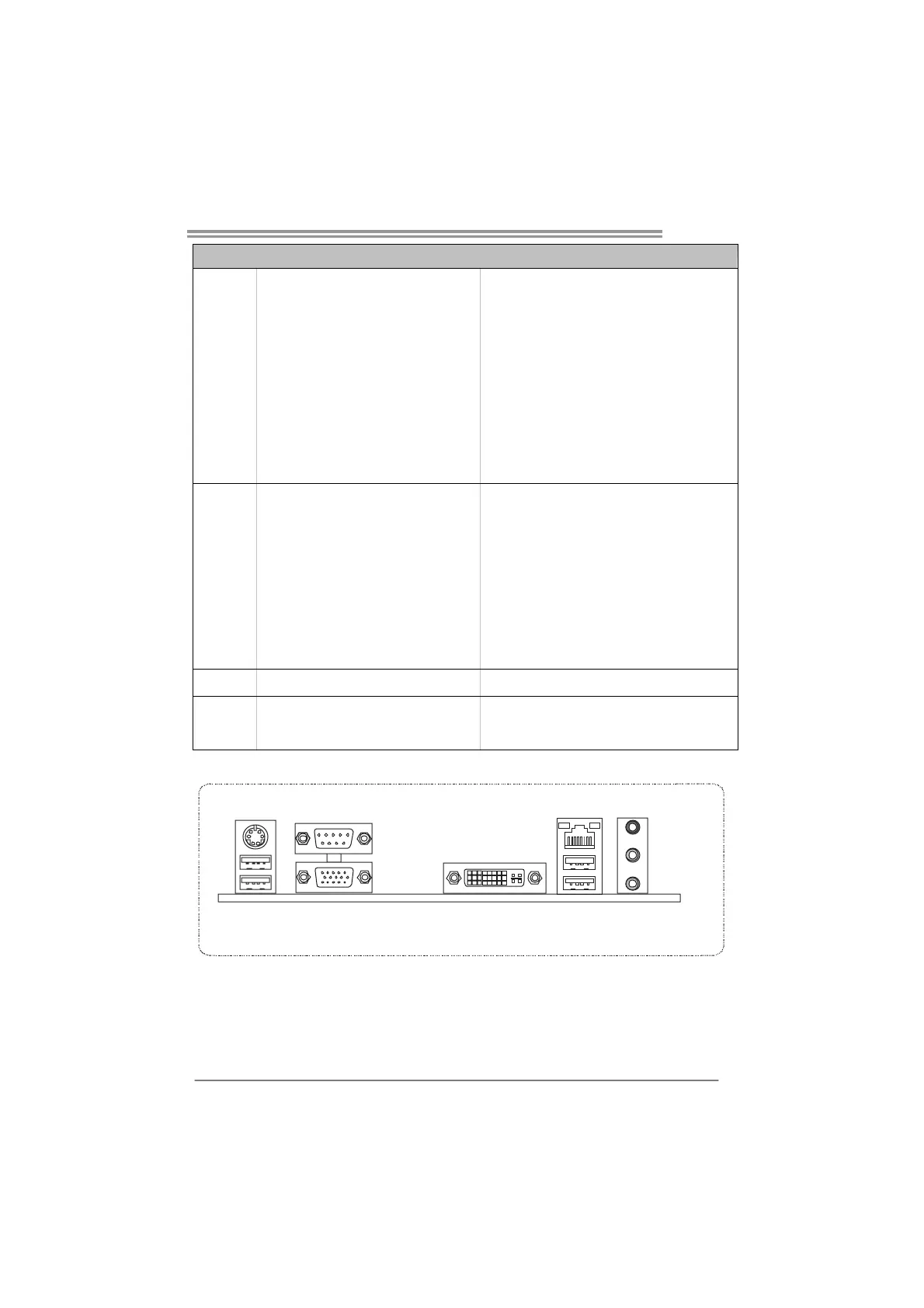

1.4 REAR PANEL CONNECTORS
USB2.0X2
LAN
DVI-D
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
PS/2
Keyboard / Mouse
USB2.0X2
V GA
COM Port
NOTE: Since the audio chip supports High Definition Audio Specification, the function of each
audio jack can be defined by software. The input / output function of each audio jack listed
above represents the default setting. However, when connecting external microphone to
the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.
