Biostar TZ75A User Manual

TZ77XE3/TZ75XE3 UEFI BIOS Manual
10

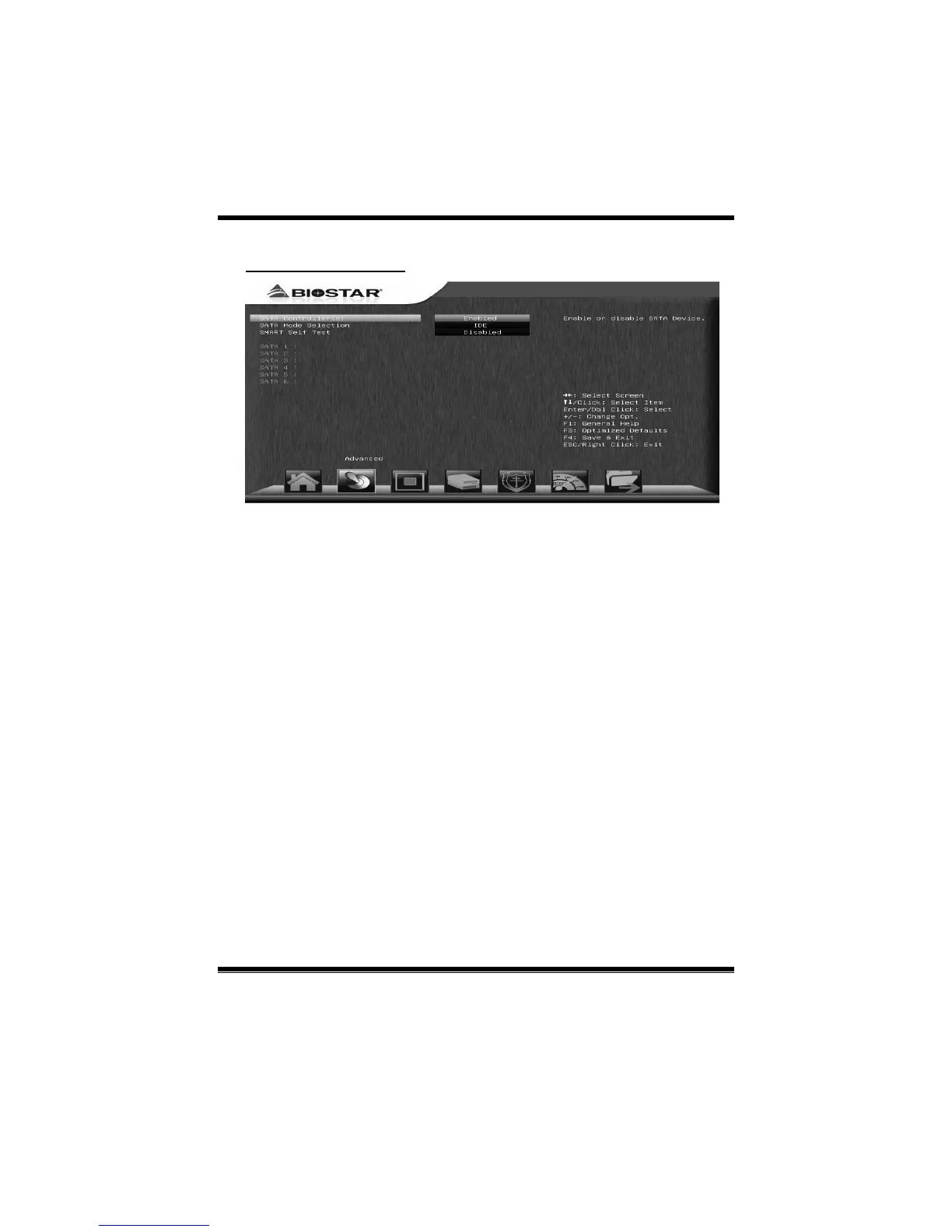

SATA Configuration
SATA Controller(s)
This item enables /disables Serial ATA Device.
Options: Enabled (Default) / Disabled
SATA Mode Selection
This item determines how SATA controller(s) operate.
Options: IDE (Default) / AHCI / RAID
SMART Self Test
This item runs SMART Self Test on all HDDs during POST.
Options: Disabled (Default) / Enabled
Aggressive LPM Support
This item enables PCH to aggress ively enter link power state.
Options: Enabled (Default) / Disabled
SATA Controller Speed
This item indicates the maximum speed the SATA controller can support.
Options: Gen3 (Default) / Gen1 / Gen2

Biostar TZ75A Specifications

General

Form Factor	ATX
Socket	LGA 1155
Chipset	Intel Z75
Memory Type	DDR3
Memory Slots	4
Max Memory	32GB
PCIe 3.0 x16	1
PCIe 2.0 x16	1
PCIe x1	2
PCI	1
SATA 3Gb/s	4
SATA 6Gb/s	2
USB 2.0 ports	8
USB 3.0 ports	2
Audio Chipset	Realtek ALC892
Audio Channels	7.1
LAN	Realtek RTL8111E
Video Outputs	HDMI, DVI, VGA
