SATA Connectors:

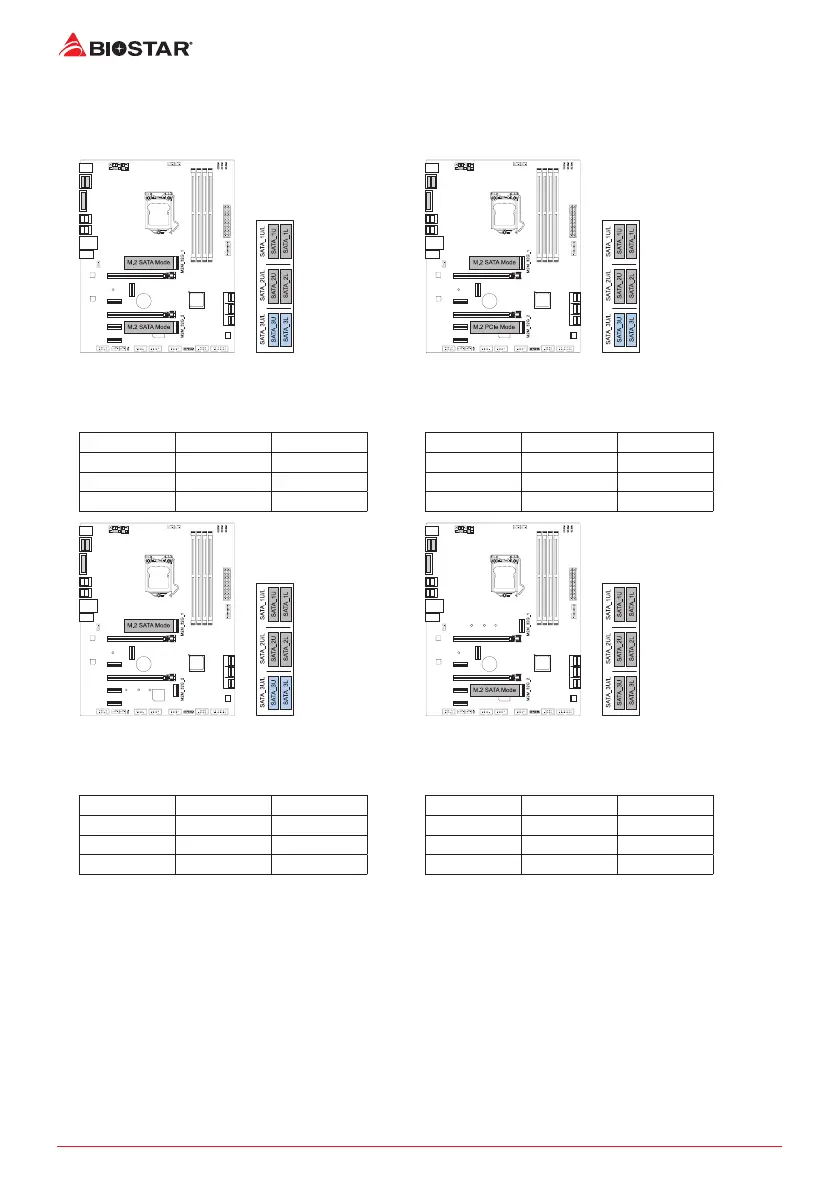

When M.2 Slot is installed with PCIe or SATA SSD mode interface, the usage status of SATA
connector. (O means SATA connector enables, X means SATA connector disables.)
2x M.2 SATA SSD Slot -- 4x SATA HDDs
SATA_1U SATA_2U SATA_3U
O O X
SATA_1L SATA_2L SATA_3L
O O X
1x M.2 SATA SSD Slot + 1x M.2 PCIe SSD Slot
-- 4x SATA HDDs
SATA_1U SATA_2U SATA_3U
O O X
SATA_1L SATA_2L SATA_3L
O O X
1x M.2 SATA SSD Slot -- 4x SATA HDDs
SATA_1U SATA_2U SATA_3U
O O X
SATA_1L SATA_2L SATA_3L
O O X
1x M.2 SATA SSD Slot -- 6x SATA HDDs
SATA_1U SATA_2U SATA_3U
O O O
SATA_1L SATA_2L SATA_3L
O O O
