Chapter 2: Hardware installaon | 17
Z490A-SILVER

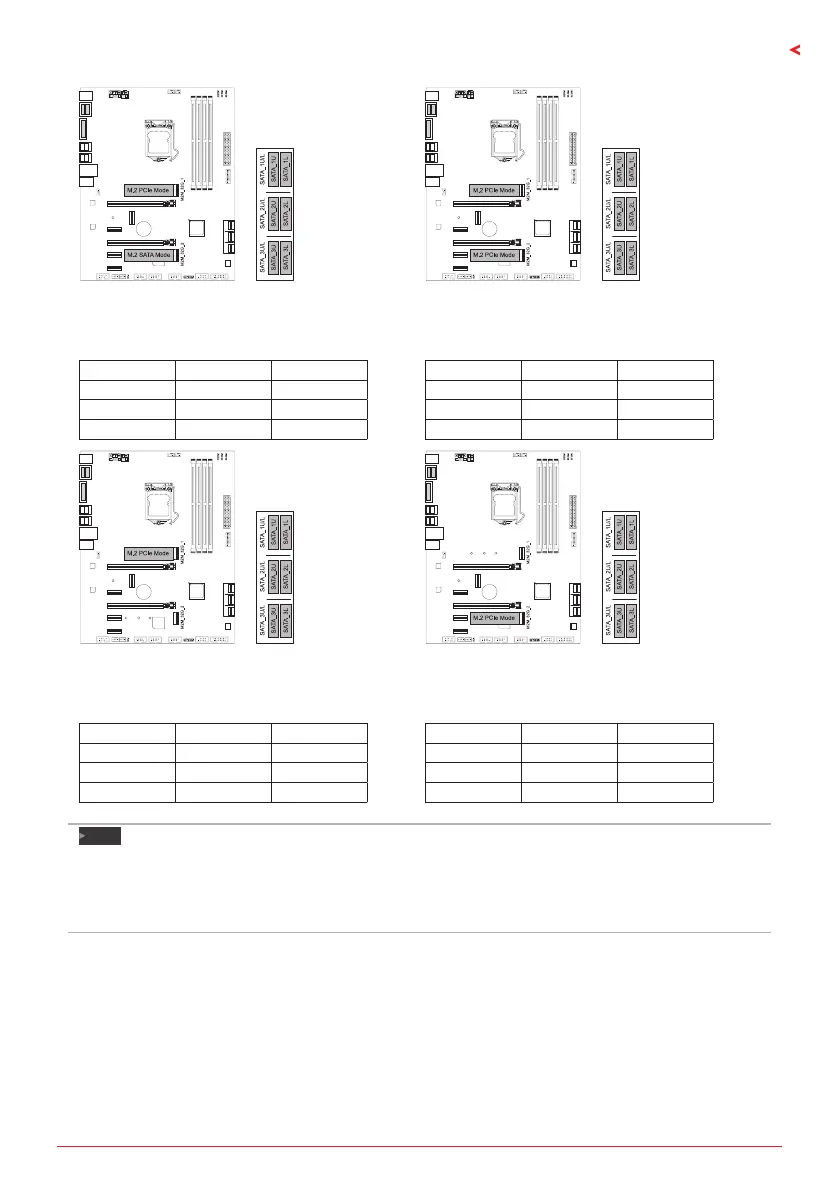

1x M.2 PCIe SSD Slot + 1x M.2 SATA SSD Slot
-- 6x SATA HDDs
SATA_1U SATA_2U SATA_3U
O O O
SATA_1L SATA_2L SATA_3L
O O O
2x M.2 PCIe SSD Slot -- 6x SATA HDDs
SATA_1U SATA_2U SATA_3U
O O O
SATA_1L SATA_2L SATA_3L
O O O
1x M.2 PCIe SSD Slot -- 6x SATA HDDs
SATA_1U SATA_2U SATA_3U
O O O
SATA_1L SATA_2L SATA_3L
O O O
1x M.2 PCIe SSD Slot -- 6x SATA HDDs
SATA_1U SATA_2U SATA_3U
O O O
SATA_1L SATA_2L SATA_3L
O O O
Note

»
WhenusingSATASSDmoduleonM.2(M2M_32G_1)slot,theSATA(SATA_3U/SATA_3L)connector
willbedisabled.

»
WhenusingNVMe/AHCIPCIeSSDmoduleonM.2(M2M_32G_1)slot,allofSATAconnectorswillbe
enabled.
