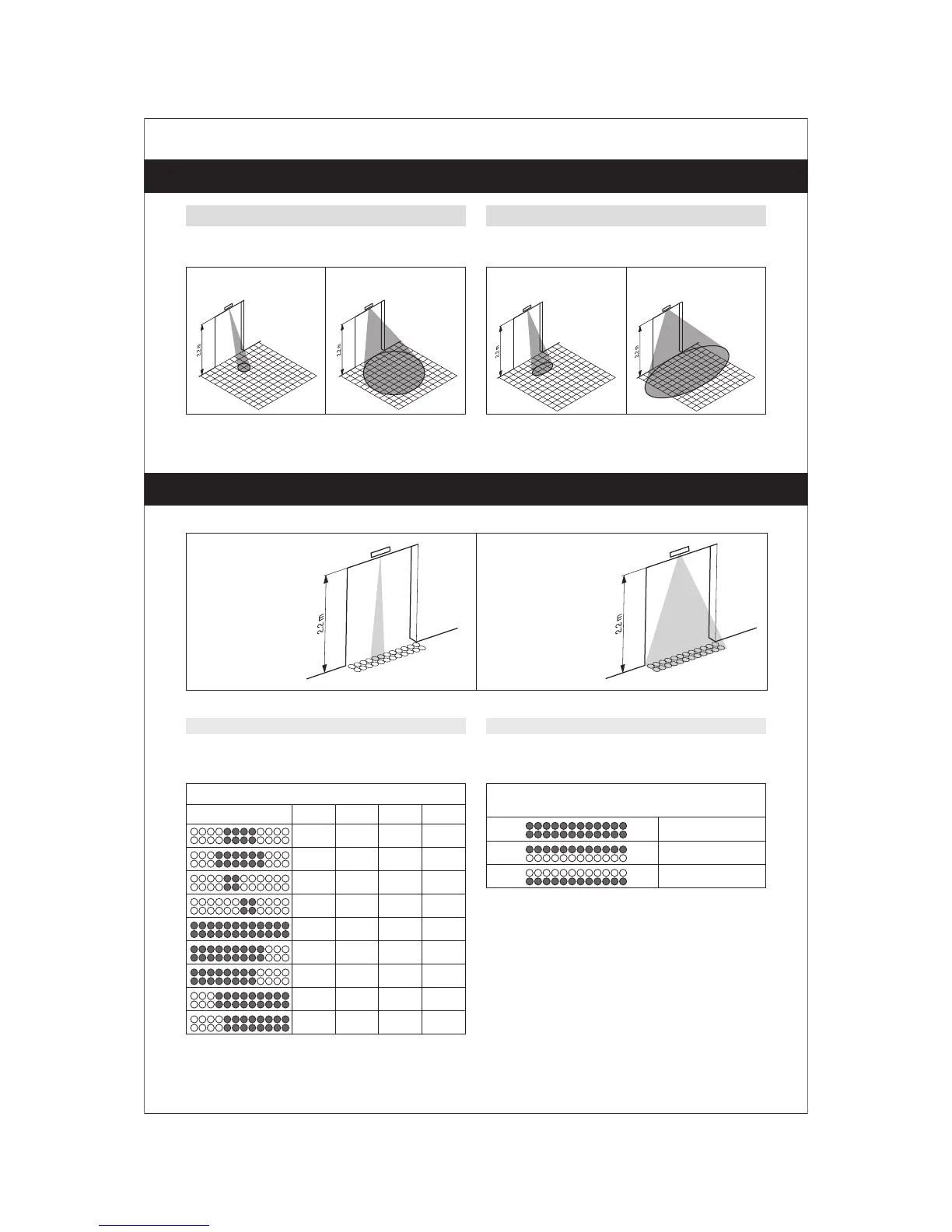

Dimensions
at installation height 2.2 m (7.2'). All data are
appoximate values.
min. 0.5 m x 0.5 m max. 2.5 m x 2.5 m
(1.6' x 1.6') (8.2' x 8.2')
Dimensions
at installation height 2.2 m (7.2'). All data are
appoximate values.
min. 1.0 m x 0.5 m max. 4.0 m x 2.0 m
(3.3' x 1.6') (13.1' x 6.6')
Field without clip Field with clip
Active infrared field: width Active infrared field: depth
The field of the presence detector is adjustable in
9 levels by covering parts of the optical lens.
Mounting height in m (feet)
field width 1.80 (5.90) 2.20 (7.22) 2.60 (8.53) 3.00 (9.84)
0.65 (2.13) 0.80 (2.62) 0.95 (3.12) 1.10 (3.61)
1.00 (3.28) 1.20 (3.94) 1.40 (4.59) 1.65 (5.41)
0.35 (1.15) 0.40 (1.31) 0.45 (1.48) 0.55 (1.80)
0.35 (1.15) 0.40 (1.31) 0.45 (1.48) 0.55 (1.80)
1.90 (6.23) 2.30 (7.50) 2.70 (8.86) 3.15 (10.34)
1.40 (4.59) 1.70 (5.58) 2.00 (6.56) 2.30 (7.55)
1.25 (4.10) 1.50 (4.92) 1.75 (5.74) 2.05 (6.73)
1.40 (4.59) 1.70 (5.58) 2.00 (6.56) 2.30 (7.55)
1.25 (4.10) 1.50 (4.92) 1.75 (5.74) 2.05 (6.73)
The depth of detection area can be set. First, second or both
rows can be activated.
depth of detection
area in m (feet)
0.2 (0.66)
0.1 (0.33)
0.1 (0.33)
Field dimensions, motion detector
Field dimensions, presence detector
Dimensions
at installation height 2.2 m (7.2'). All data are appoximate values.
Field width: min. 0.4 m (1.31') Field width: max. 2.3 m (7.55')
Field depth: min. 0.1 m (0.35') Field depth: max. 0.2 m (0.66')
