DISASSEMBLY
AND
REASSEMBLY
INSTRUCTIONS
SECTION
6:
DISASSEMBLY AND REASSEMBELY INSTRUCTIONS

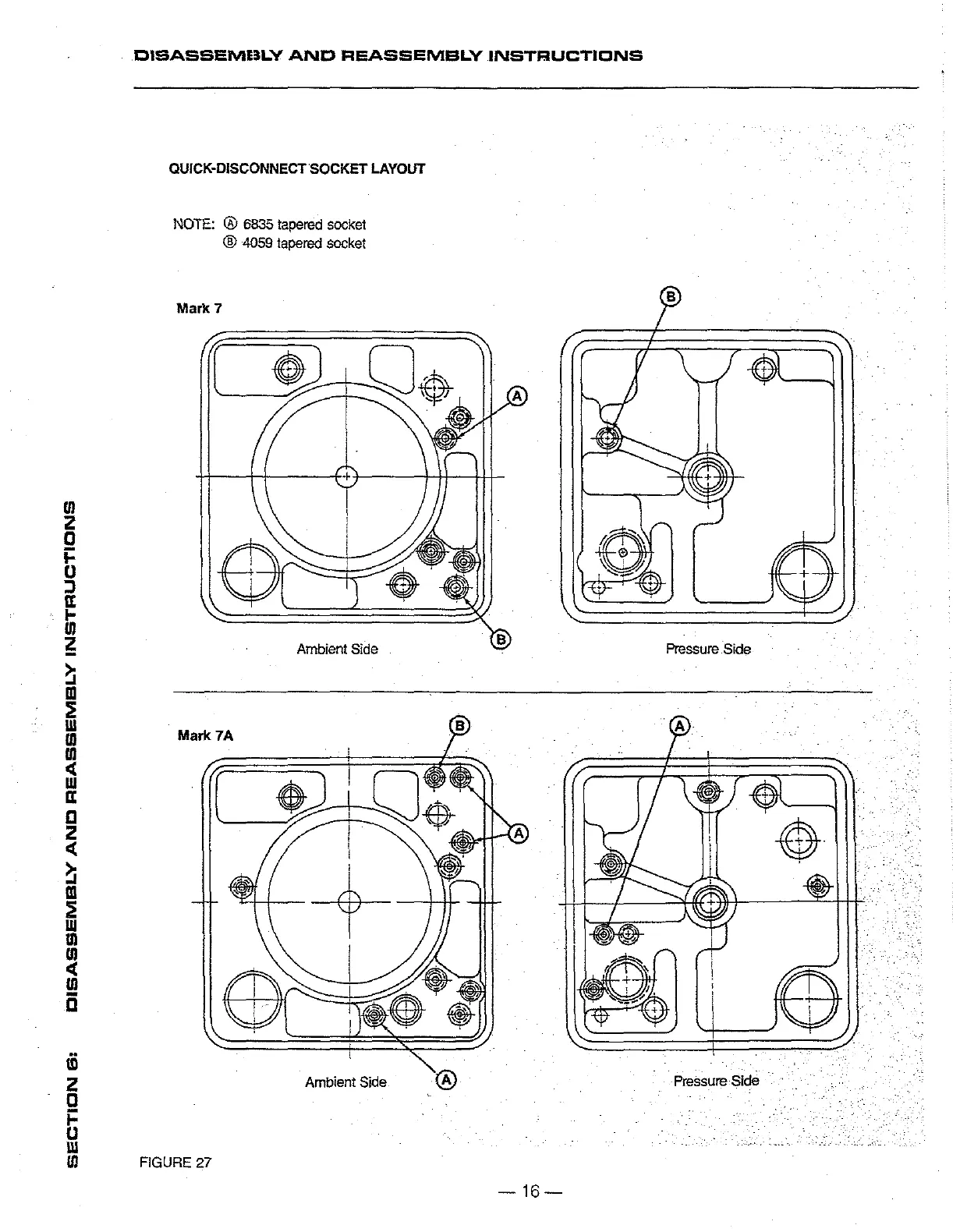

QUICK-DISCONNECT SOCKET LAYOUT
NOTE: ® 6835 tapered socket
4059 tapered socket
Ambient Side Pressure Side
Ambient Side A Pressure-Side
FIGURE 27
— 16 —
