BIRO 109PCM - Page 21

17
14. PCM574-1 Handle casting, product pusher
15. PCM577 Pin, feed screw, product pusher
16. PCM569 Mounting bracket, product pusher
17. PCM585 Pivot pin, product pusher
18. PCM586 Split ring, pivot pin, product pusher
19. PC032 Product deector release pin
20. PC034 Fastener plate, product deector
21. LW10S Lock washer ¼ SS
22. HN15S Hex nut ¼-20 SS
23. PC033 Product deector key hole stud
24. PC103 Side product deector
25. HHS010S Hex head screw 10-32 x ⅜ SS
26. PCM560 Actuator limit switch
27. PCM587 Guide bushing, product pusher
handle
7
6
5
2
10
2
24
11
9
8
1214 13
22
21
20
19
23
17
16
Fig. Item Number Description
15
18
3
4
1

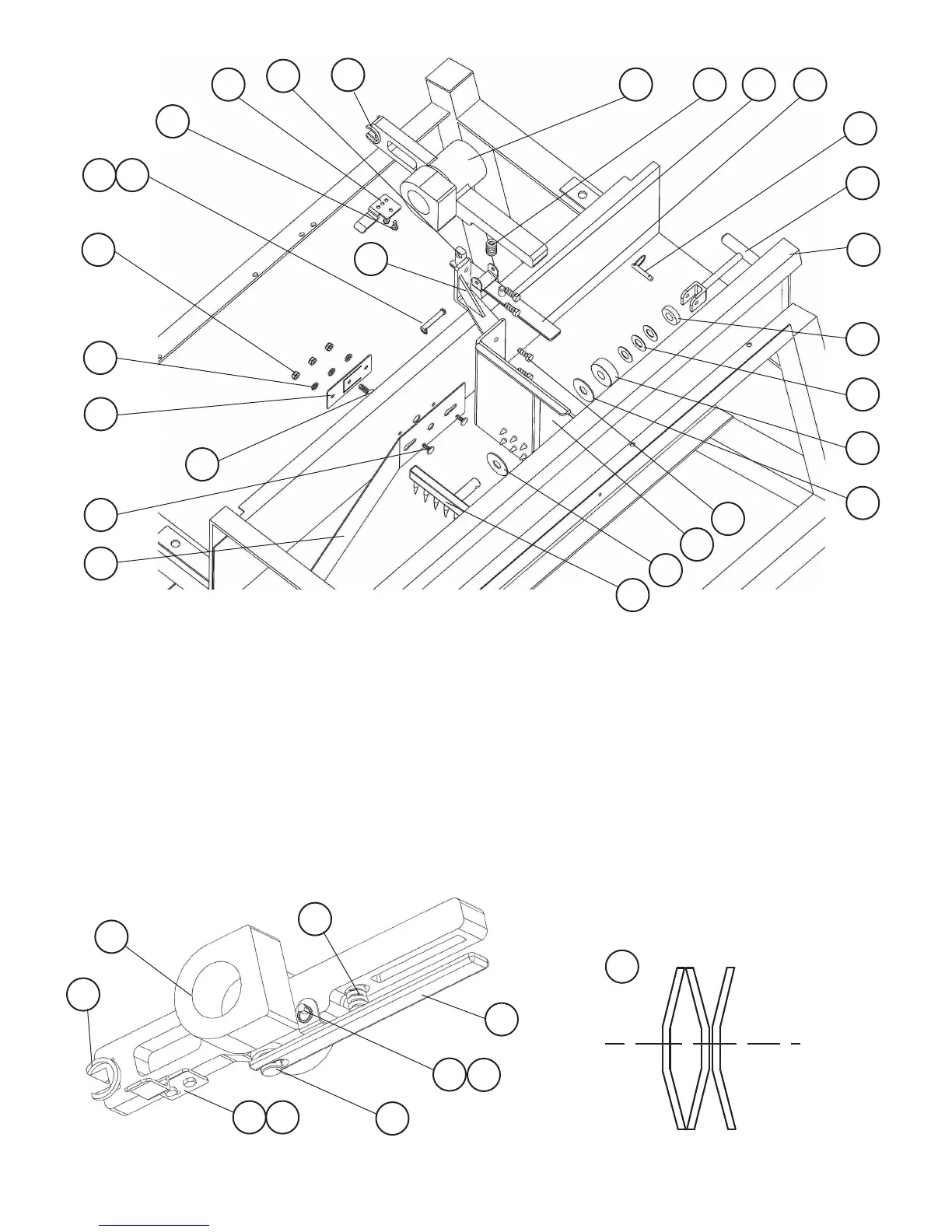

Product Pusher Handle Assemblied Bellevile Disc Spring Assembly
13
14
17
15
11
6
26
25
25 26
27
27
1. PC080 Gripper
2. PC005 Slide washer
3. PCM619 Product pusher
4. HHS049S Hex head screw
5
/16-18 x ½ SS
5. PC003 Spring housing
6. PC132 Belleville disc spring
7. PC024 Thrust washer
8. PC086 Handle
9. PC025 Faspin
10. PCM508 Frame w/ loading tray/frame door
11. PCM579 Lever assembly, product pusher
12. HHS055S Hex head screw
5
/16-18 x ¾ SS
13. PCM584 Lever spring, product pusher
18
