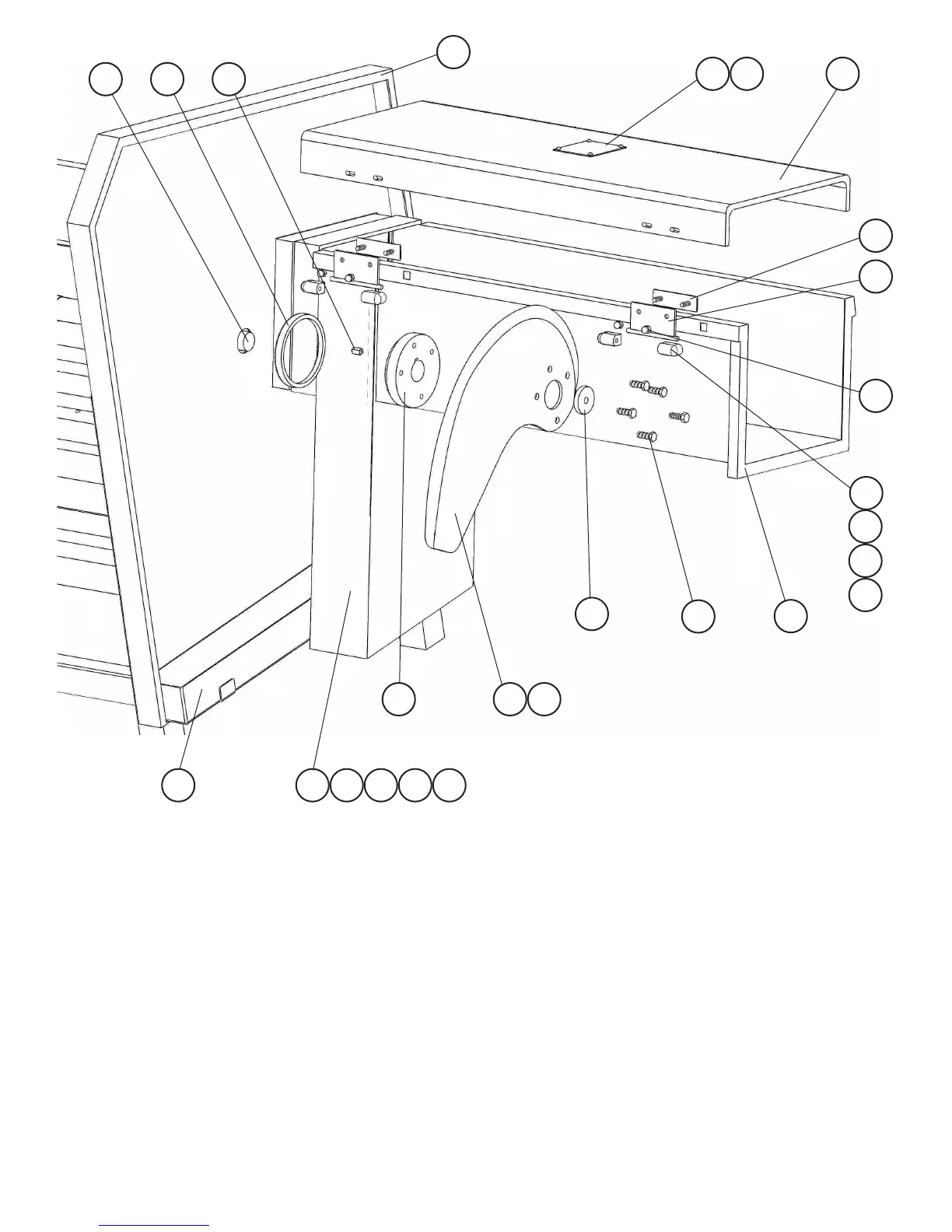

1. PCM572 Shaft, knife drive
2. PC078 Blade shaft seal
3. PC018 Key,
5
/16 x
5
/16 x ¾, blade
mounting plate
4. PC050 Blade mounting plate
5. PC124 Blade, Smooth
6. PC125 Blade, Serrated
7. PC023 Cap, blade mounting plate
8. HHS070S Hex head screw ⅜-16 x 1 SS
9. PCM524 LH door & recv chamber
10. T3067 Safety cover hinge
11. FW06S Flat washer, ¼ SS
12. LW10S Lock washer, ¼ SS
13. HN15S Hex nut ¼-20 SS
14. AN15S Acorn Nut ¼-20 SS
15. PC035 Chamber cover hinge & hinge pin
16. PC038-1 Connecting plate
17. PC229 Receiving chamber cover assembly
18. PC270 Warning label, sharp knife blade
19. 375 Drive screw SS
20. PCM508 Frame w/loading tray & frame door
21. PC071 Surplus catch tray
22. PCM525 Support bracket, receiving chamber
23. PC161 Strain relief tting
24. 241-LN Lock nut, ½ conduit
22 12 13 23 2421
4 5
7
8
9
14
15
16
171918
20
321
Fig. Item Number Description
6
11
12
10
13
