5
INSTALLATION
There is an alignment pin on the lower shaft.
And a mating alignment groove in the hub
of the lower wheel. Align the two as the
wheel is being installed on the tapered shaft.
NOTE:
TO ENSURE PROPER SAW
WHEEL ALIGNMENT, WHEEL
MUST BE REINSTALLED
ON SAME MACHINE FROM
WHICH IT WAS REMOVED.
Replace the T-Handle Lock
HAND TIGHTEN ONLY
Reassemble the machine.
14746
T-Handle
Lock
T-Handle
Loosened
Using thumbs for leverage, pull wheel toward you with
an even-smooth motion. Wheel is mounted in slip t
fashion on a tapered shaft. When the wheel is loose,
complete removing T-handle lock and wheel.
14746
T-Handle
Lock

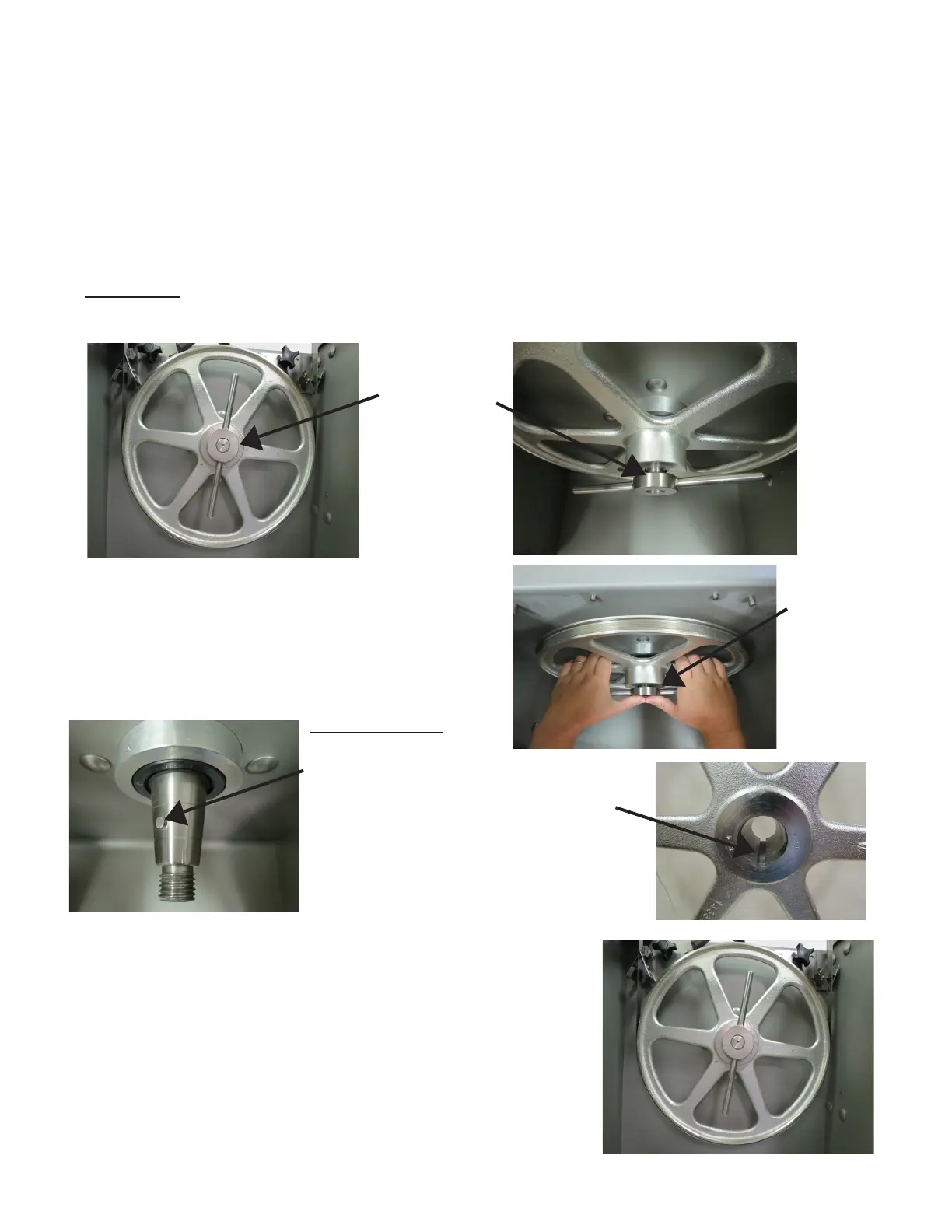

REMOVAL and INSTALLATION INSTRUCTIONS
for TAPERED BORE LOWER WHEELS
14560 and 14560DF
ALWAYS Turn off, unplug Machine From Power Source and Perform Lockout/Tagout Procedure
to the Machine BEFORE Cleaning or Servicing.
Follow Disassembly Procedures in the Cleaning Section of the Operating and Service Manual.
Removal of the Lower Wheel will be the last procedure.
REMOVAL
Loosen the Item No. 14746 T-Handle lock, DO NOT REMOVE COMPLETELY FROM SHAFT.
To Next Page
