30

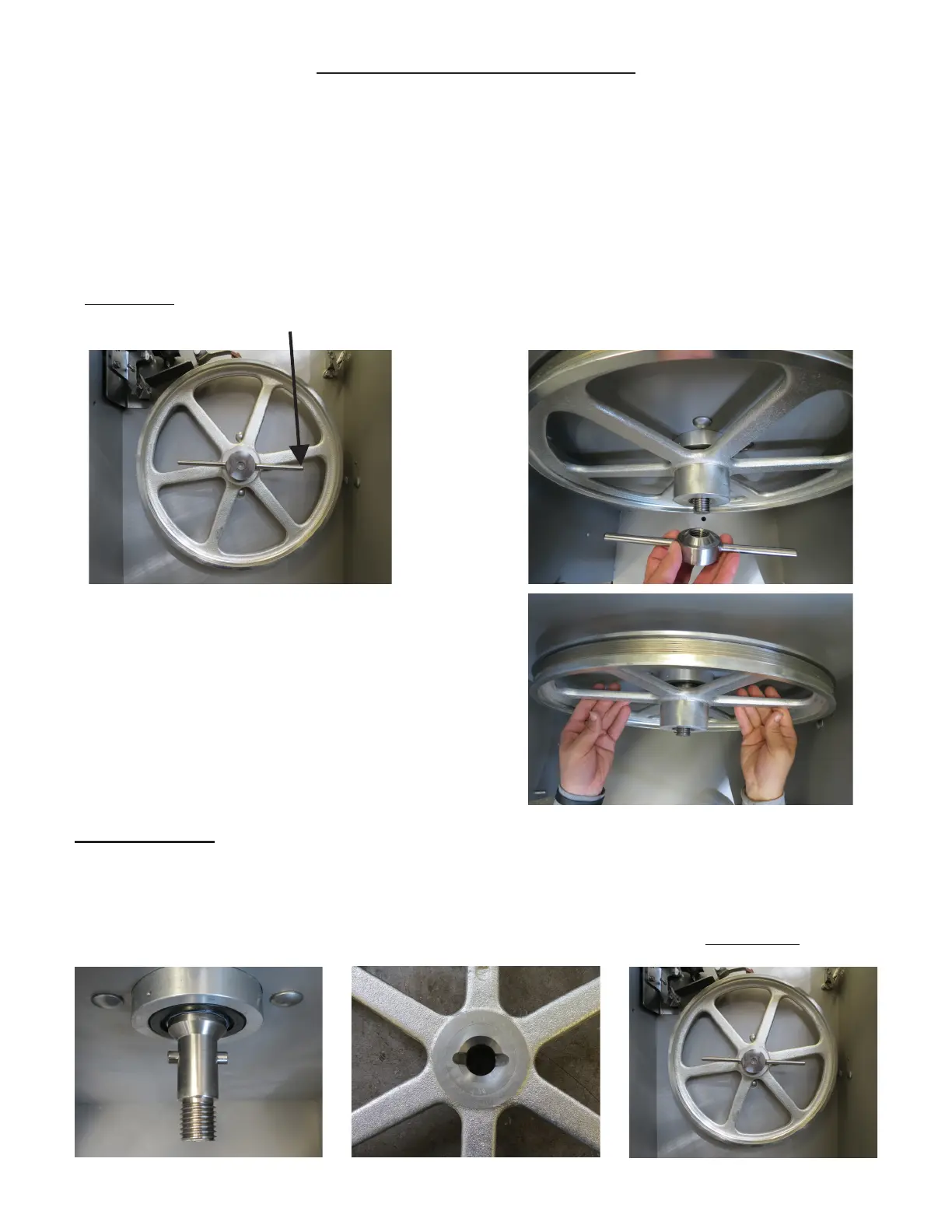

REMOVAL and INSTALLATION
for Self-Centering Lower Removable Wheels
Using both hands @ 3 and 9 o-clock
positions, Pull wheel towards you with
an even smooth motion.
INSTALLATION
There is an anti-rotation pin located on the lower shaft, there is an
anti-rotation groove located on the back side of the lower wheel.
Align and engage the groove of the lower wheel and the
anti-rotation pin as the wheel is being installed.
Install T-handle Lock onto
Lower Shaft, Hand Tighten
SECURELY
REMOVAL
Loosen Item No. 14746-2, T-Handle Lock and Remove from lower shaft.
ALWAYS Turn Off, Unplug Machine From Power Source and Perform Lockout/Tagout Procedure to the
Machine BEFORE Cleaning or Servicing.
Follow disassembly procedures in the Cleaning Section of the Operating and Service Manual.
Removal of the Lower Wheel will be the last procedure.
