BITMAIN ANTMINER S19j User Manual

- 13 -
S19j Server Installation Guide
2. Setting up the Server

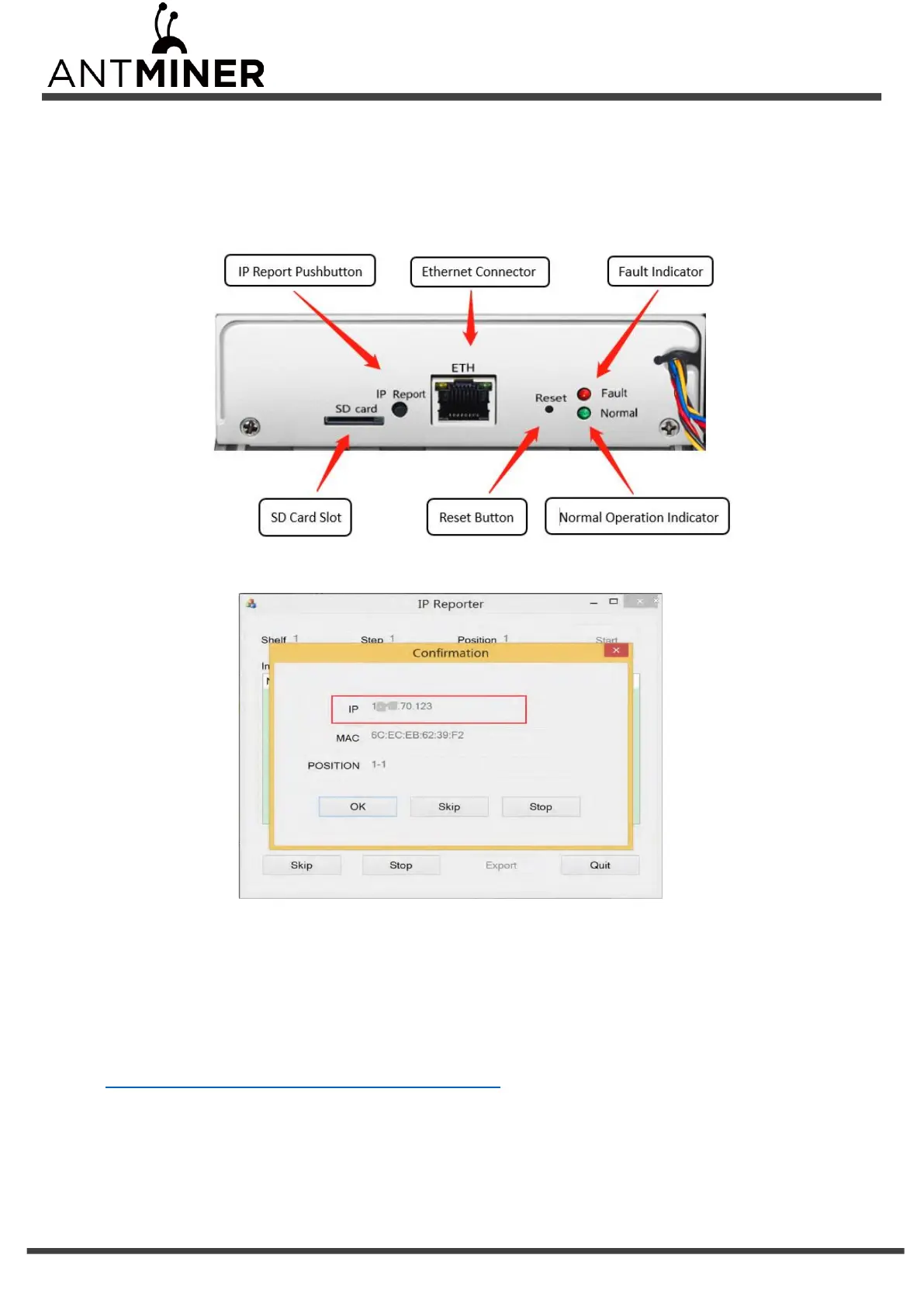

7. On the controller board, click the IP Report button. Hold it down until it beeps (about 5 seconds).
The IP address will be displayed in a window on your computer screen.
7. In your web browser, enter the IP address provided.
8. Proceed to login using root for both the username and password.
9. In the Protocol section, you can assign a Static IP address (optional).
10. Enter the IP address, Subnet mask, gateway and DNS Server.
11. Click “Save”.
12. Click https://support.bitmain.com/hc/en-us/articles/360018950053 to learn more about gateway and DNS Server.

BITMAIN ANTMINER S19j Specifications

General

Hash Rate	90 TH/s
Noise Level	75 dB
Weight	13.2 kg
Network Connection	Ethernet
Algorithm	SHA-256
Efficiency	34.5 J/TH
Operating Temperature	0°C to 40°C
Voltage	220V - 240V
Power Consumption	3250 W
Dimensions	370 x 195.5 x 290 mm
Chip	BM1362
