Step 3

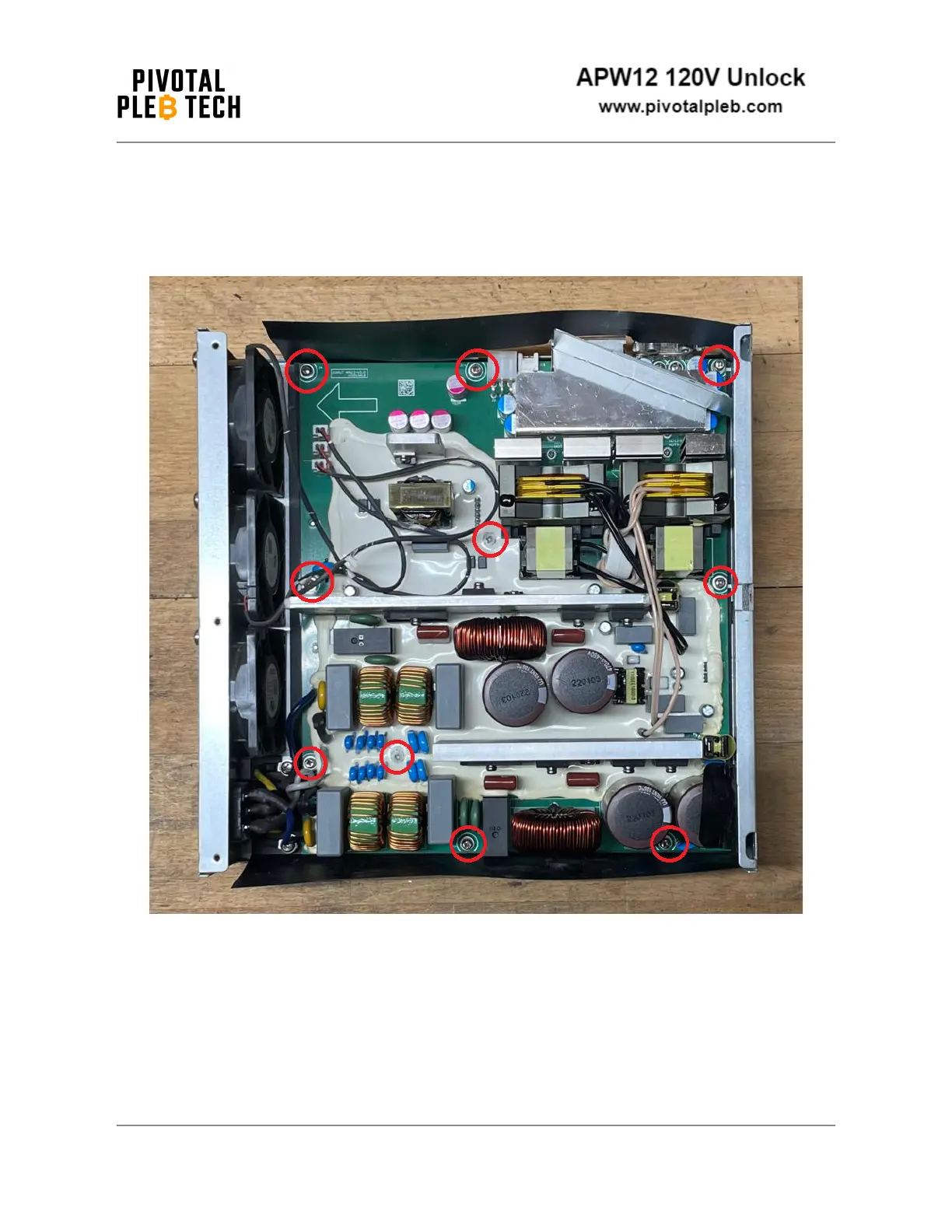

Remove the 10 PCB mounting screws (circled in red below). Note that a few of the
screws may be covered by the white, silicone conformal coating.
Document Revision 3
2024-02-01 8
