ESB-130-826
4 Mounting
4.1 Transporting the compressor
Either transport the compressor screwed onto the pallet
or lift it using the eyebolts.
DANGER
Suspended load!
Do not step under the machine!

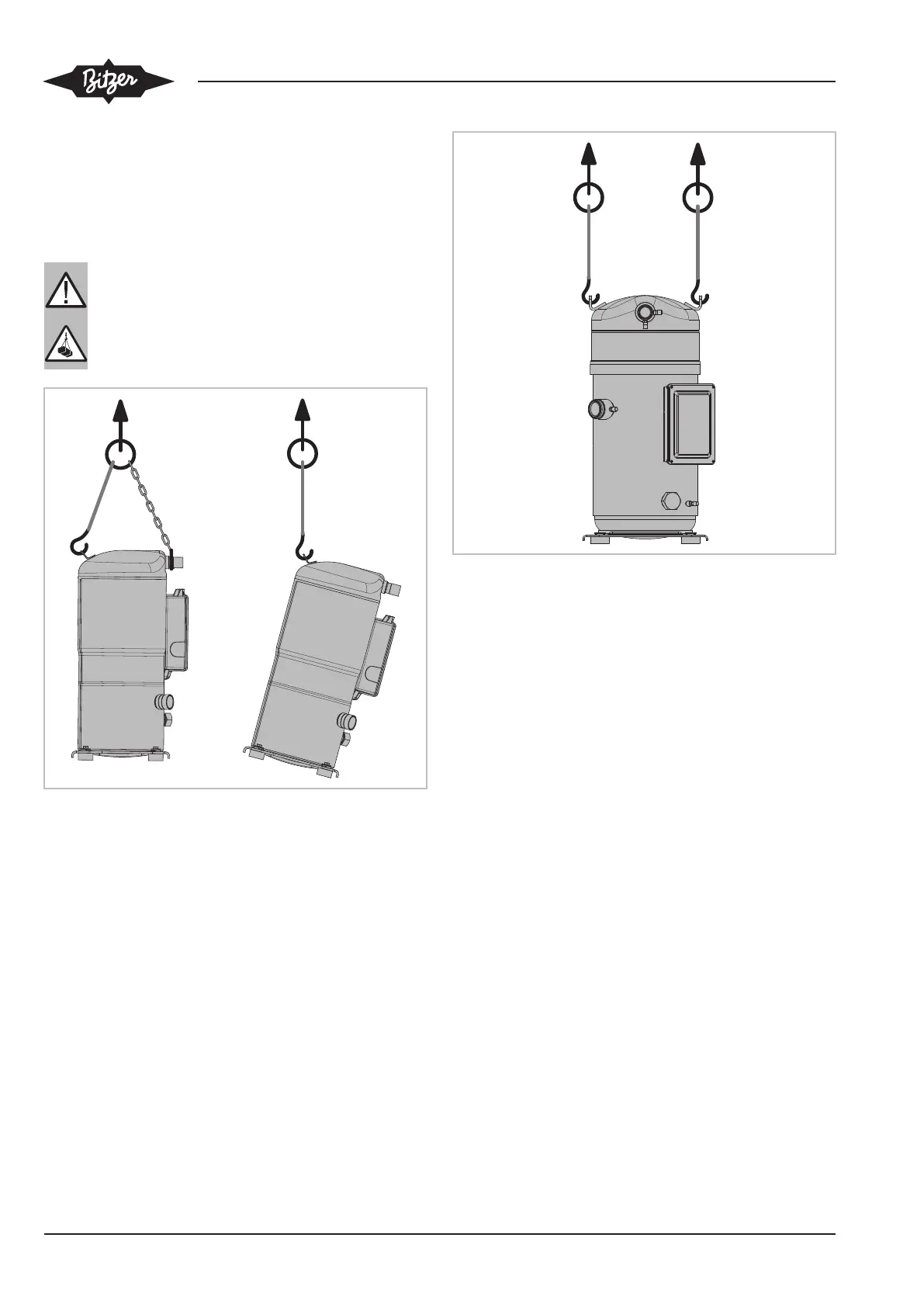

Fig.1: Lifting the ORBIT 6
Fig.2: Lifting the ORBIT 8
4.2 Installing the compressor
4.2.1 Installation location
Install the compressor vertically. Maximum allowable
lateral tilt: 3°. For marine applications, please contact
BITZER.
For outdoor installation, take suitable measures to pro-
tect the compressor against corrosion (e.g. caused by
seawater or aggressive atmosphere) and low outside
temperatures. Lifting lugs and pipe connection points
should be coated with touch-up paint or suitable anti-
corrosion coasting after handling and installation to
minimize potential for unsightly surface rust. Consulta-
tion with BITZER is recommended.
4.2.2 Vibration dampers
To avoid noise and vibration transmission to the envir-
onment, it is recommended mounting all compressors
with damper elements.
For compound compressor units, the compressors
must be solidly mounted (without vibration damper) on
the fixing rails. Mount the vibration damper below the
fixing rails.
