BIXOLON SPP-R310PLUS - Quad Battery Charger Usage

Rev. 1.03
- 14 -
SPP-R310/L310

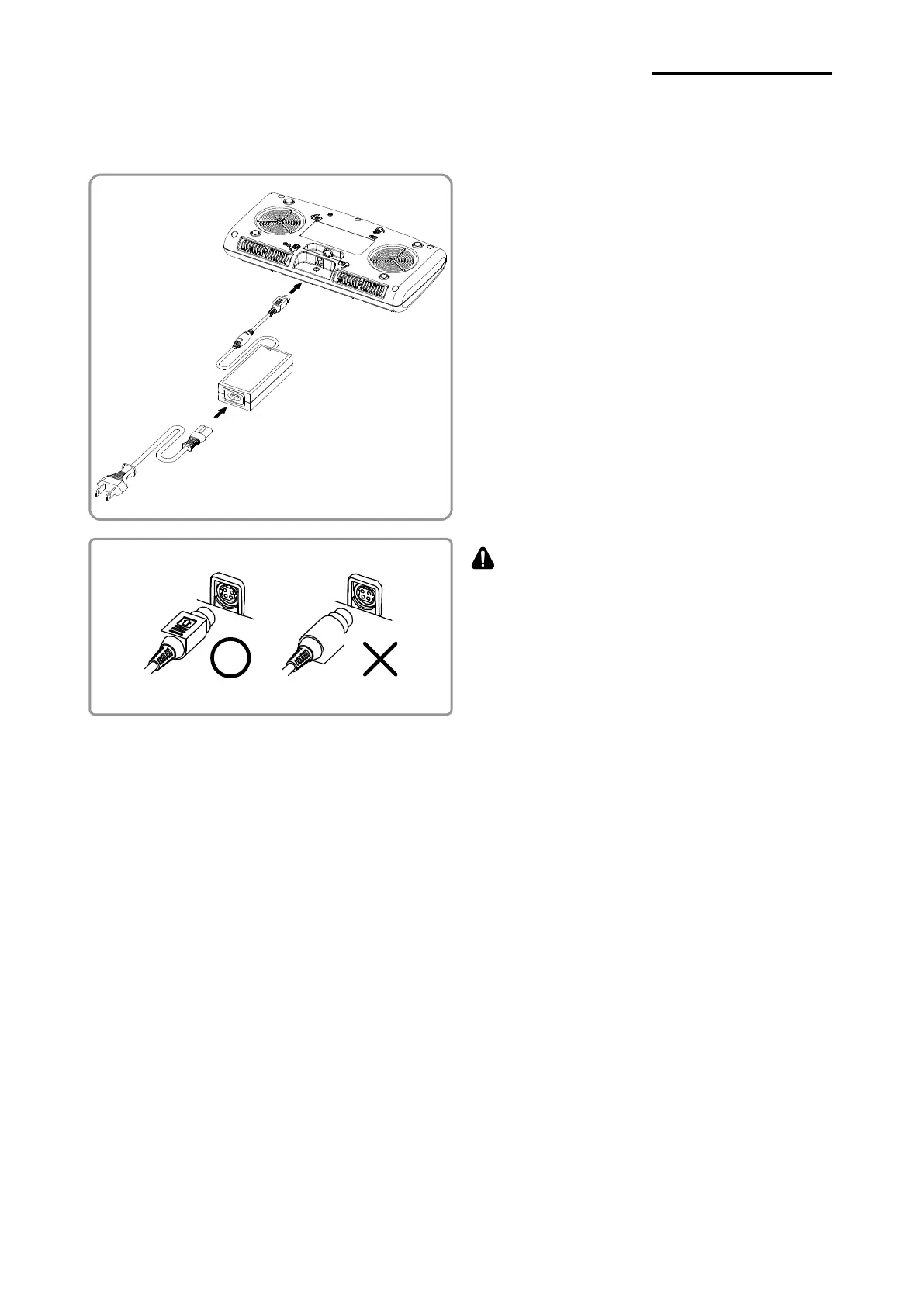

3-2-4 Using Quad Battery Charger (Optional)
3-2-4-1 Connecting the cables
1) Connect the power cord to the adaptor,
and Connect the adaptor to the power
connector of the quad battery charger.
2) Plug the power cord into a power Outlet.
Input power is 100 ~ 240VAC, 50/60Hz,
1.0A.
3) When the power is supplied, the yellow,
green and red LEDs are on for three
seconds and do the self-test.
WARNING
Use only designated AC/DC adaptor.
(12VDC, 3A)
