BIXOLON SRP-350plus User Manual

SRP-350plus
Rev. 2.04
- 6 -

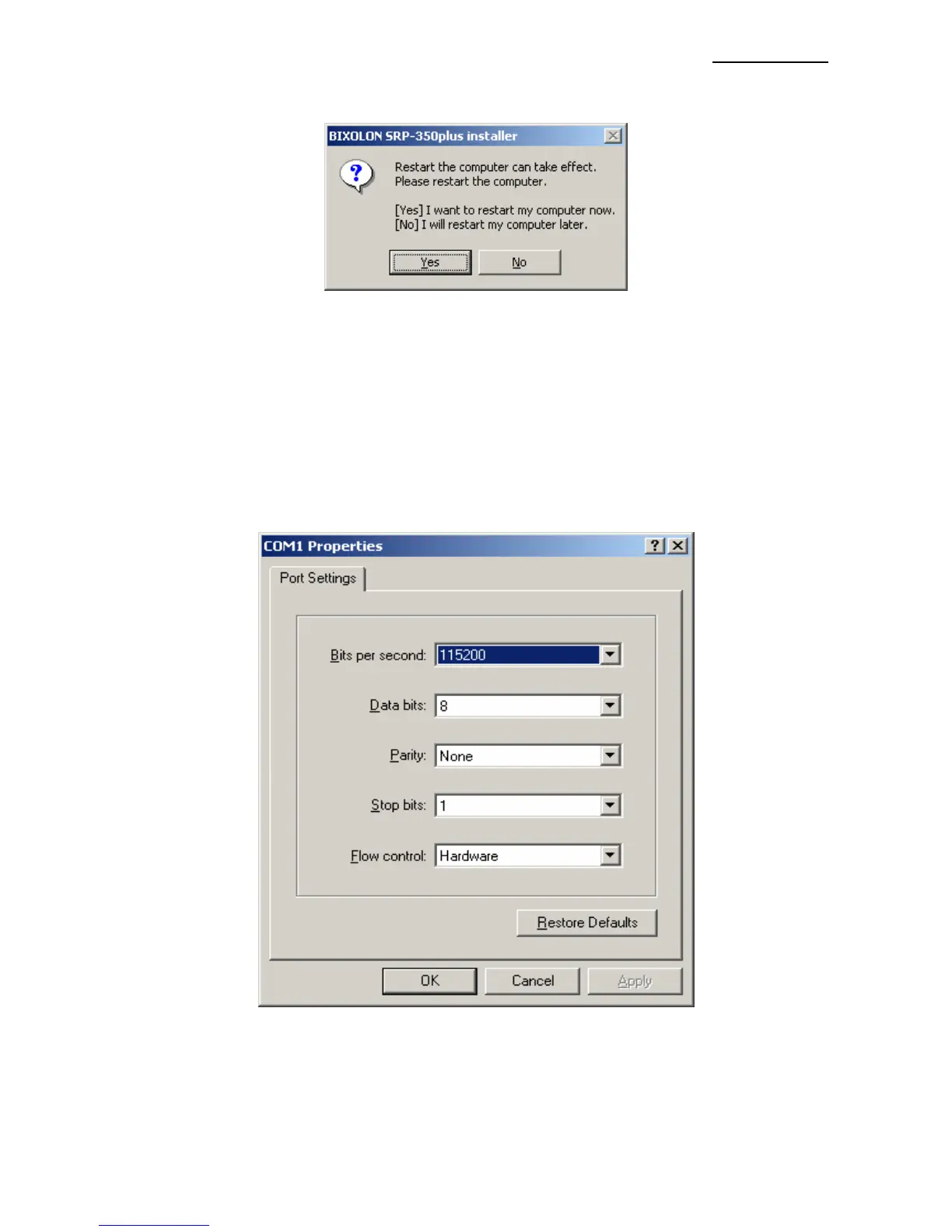

5) Clicking the ”Yes” button will reboot the PC.
6) Open the printer properties window in the Windows OS.
7) Click the “Port Settings” button in the ”Ports” tab.
8) Match the communication settings to those of the printer.
(The communication settings of the printer can be performed by conducting a self-test.)

BIXOLON SRP-350plus Specifications

General

Print Method	Direct Thermal
Resolution	180 dpi
Paper Width	80 mm
Auto Cutter	Yes
Interface	USB, Serial, Parallel, Ethernet
Power Supply	AC 100-240V, 50/60Hz
Print Speed	Up to 250 mm/sec
