Carriage

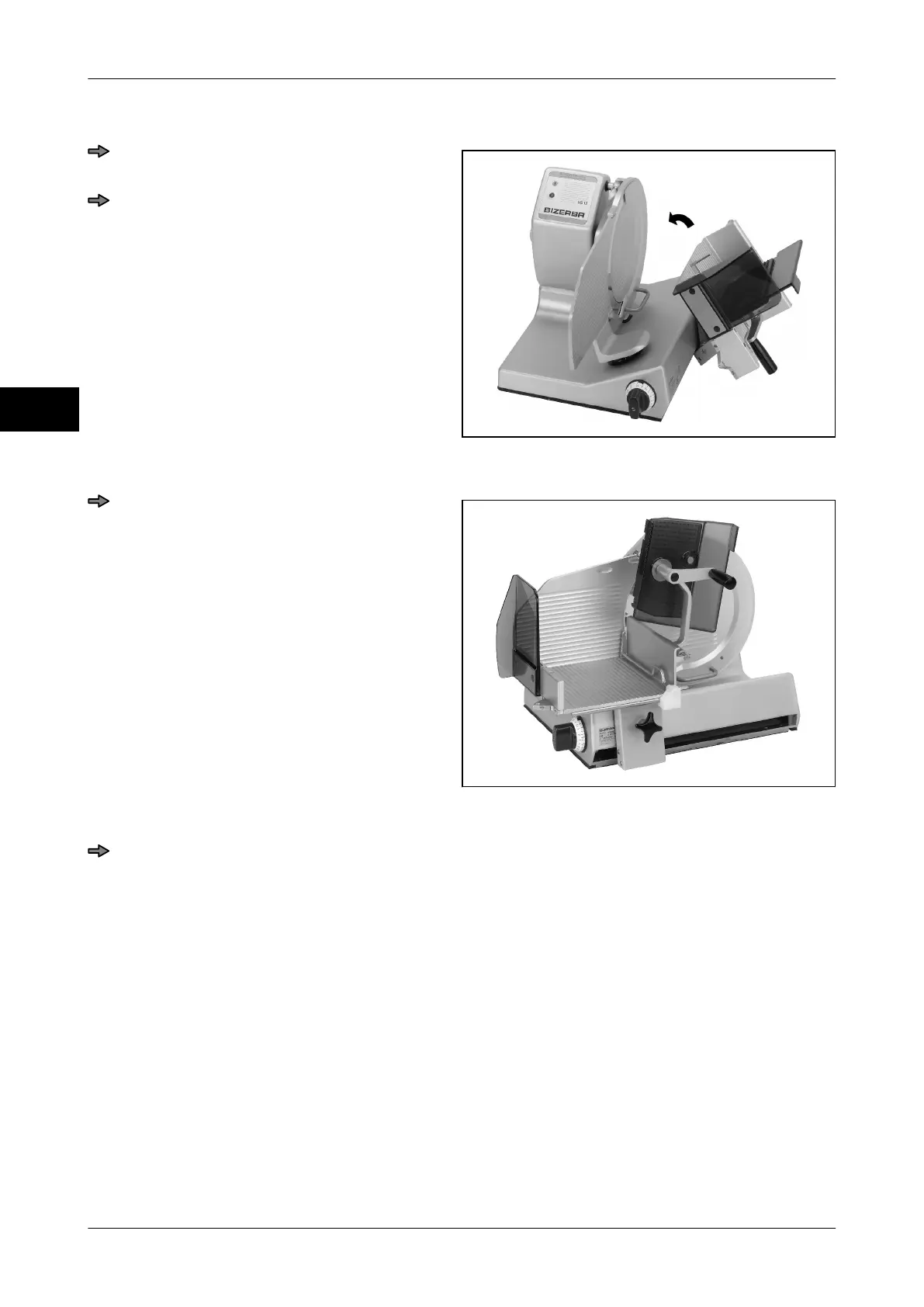

Fig. 51: Tilting carriage
Tilt the carriage in the direction of the ar-
row.
Using the handle screw into place on
the carriage foot.
Product fixation device VS12, VS12W (option)
Fig. 52: Product fixation device
On the operator side, place product
holder fixation device horizontally on to
the guide shaft and move on guide
shaft.
Bias cut plate VS12, VS12W
Insert bias cut plate.
