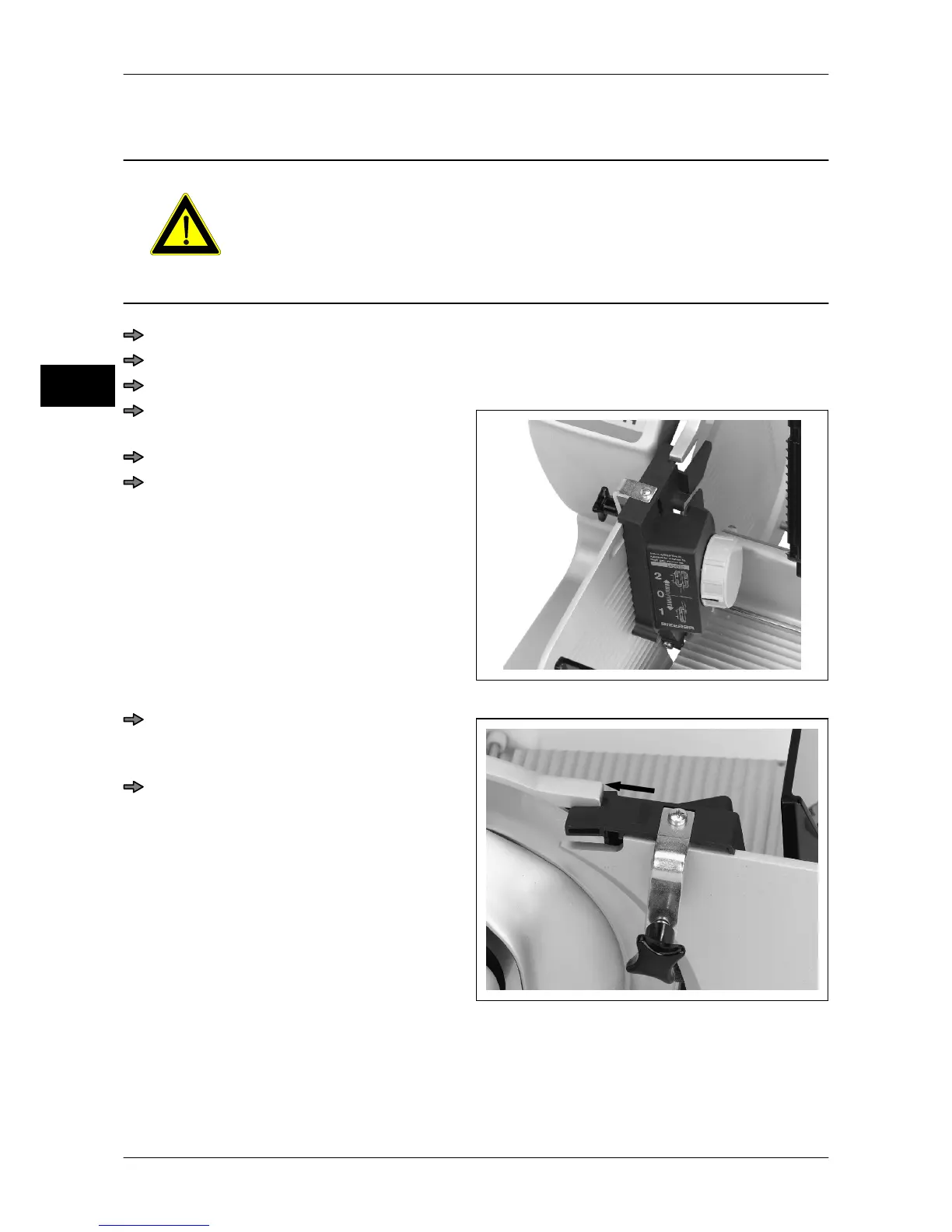

8.6.3 Attaching the sharpener
WARNING Unprotected blade!
Coming in contact with the sharp blade can lead to serious inju-
ries.
– Wear cut-proof gloves when cleaning and sharpening.
– Do not clean the blades when operating the machine.
Unlock slice thickness limit, see chapter 5.4.
Set slice thickness to "24" or open until stop.
Set locking lever to MANUAL (VS12D).
Fig. 62: Attaching the sharpener
Set handwheel marking on sharpener to
"0".
Move carriage to relevant position.
Mount sharpener to gauge plate from
the top.
Fig. 63: Tightening sharpener
Push the sharpener and carriage to-
wards the blade until the adapter con-
tacts the front of the blade guard ring.
Keep the sharpener in this position and
use the star knob to screw it to the
gauge plate.
