3.2 Rear Panel

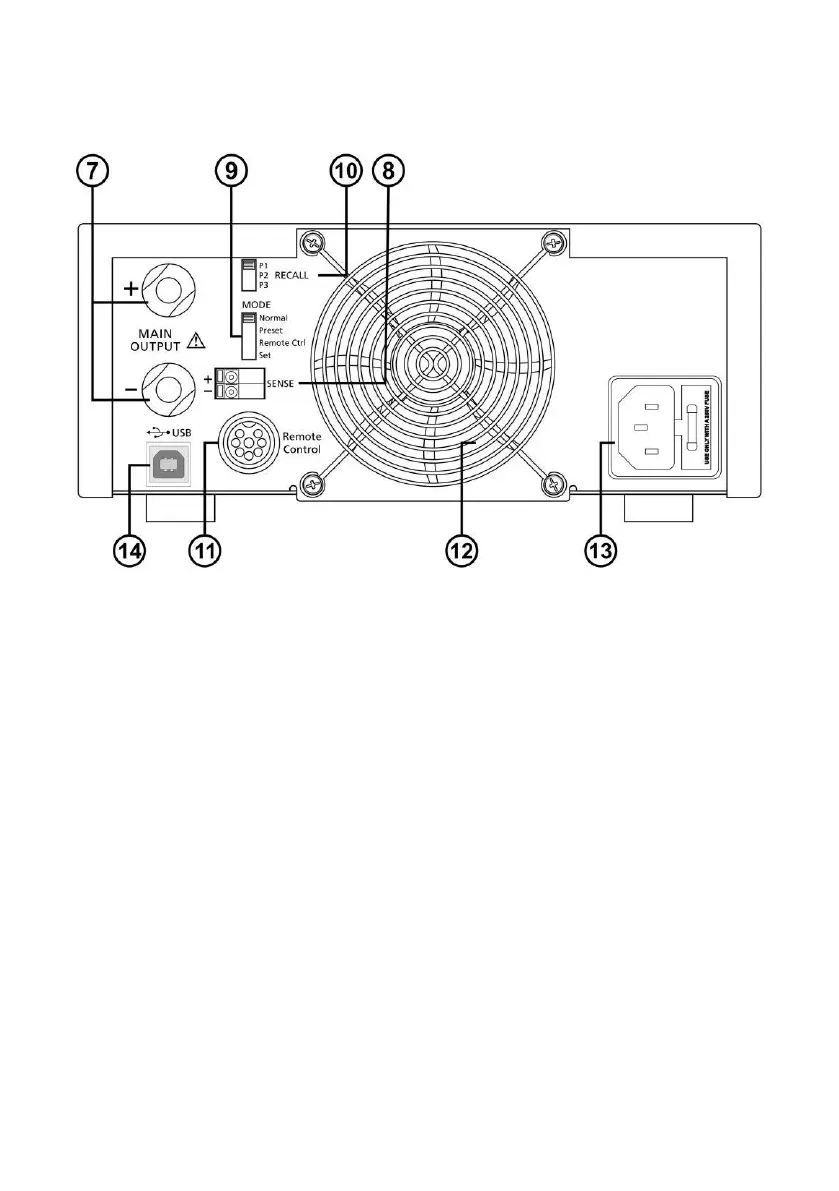

Figure 2 - Rear Panel
(7) Main Output Terminal (max 60 A for 1900B / 30 A for 1901B / 15 A for 1902B)
Note: Please see Section 4.1.5 for more details on using both main and
auxiliary output terminals together.
(8) Remote Sense Terminal (model 1900B only)
(9) Mode Selection Switch (Normal, Preset, Remote Control, Set Modes)
(10) Recall Preset Selection Switch
(11) Analog Remote Control Terminal
(12) Cooling Fan Air Intake Grille
(13) AC Input Plug and Fuse Compartment
(14) USB Port (for PC remote control)
