8 BK Radio

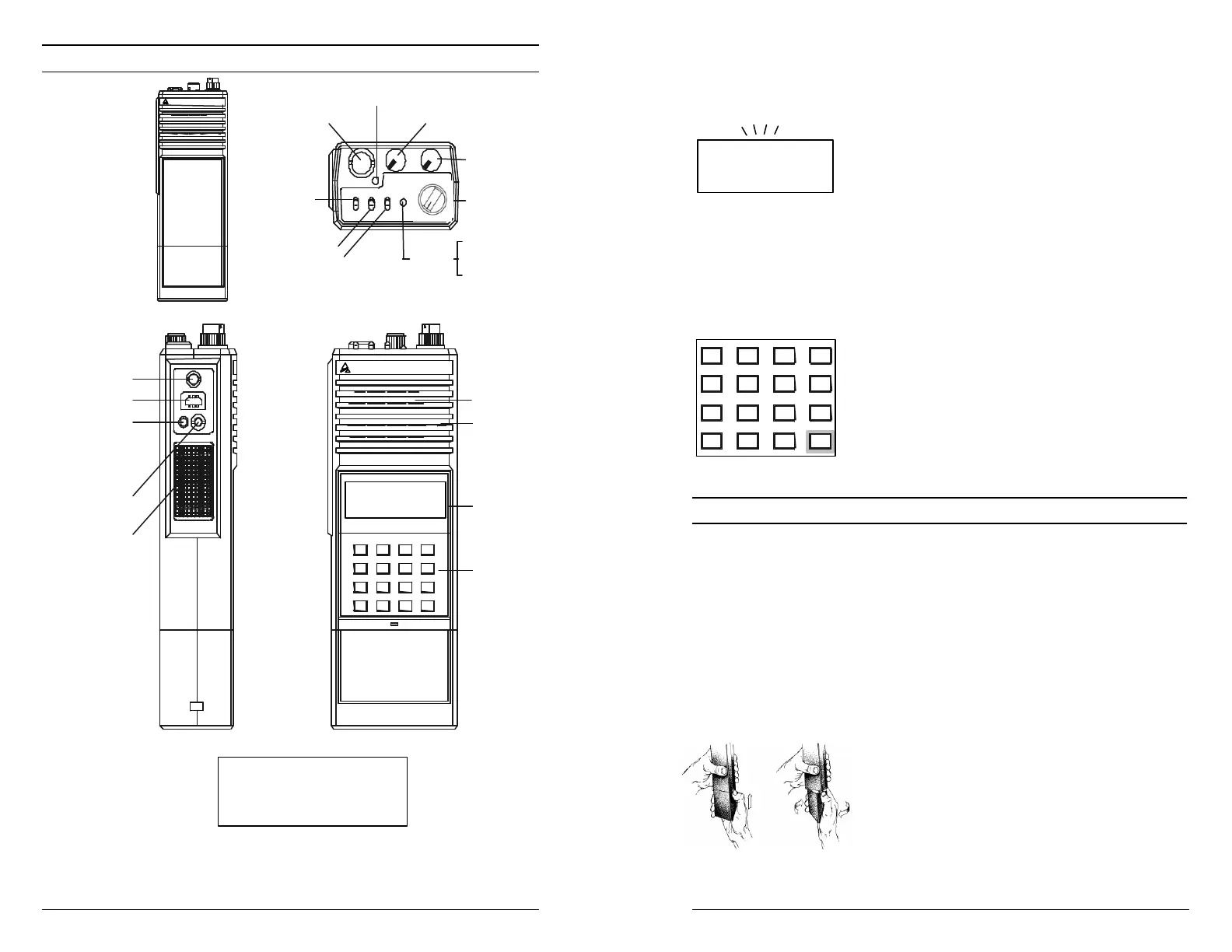

RADIO CONTROLS
1
2
3
4
5
6
7
8
9
CLR
FCN
PRI
ENT
BUSY CHANNEL
LOW BATTERY
INDICATOR
TRANSMIT
INDICATOR
ANTENNA
HI/LO
TRANSMIT
POWER
SCAN
PRIORITY
ANTENNA
MOUNT
PTT
(PUSH TO TALK)
MICROPHONE
LCD DISPLAY
CHANNEL
SELECT
SQUELCH
CODE GUARD
G
PRG
TX
RX
SCN
ID
CG
DPH RADIO WITH
KEYBOARD/DISPLAY
COVERED OR
(REDUCED VIEW)
BK RADIO
CG -
OFF-
SQ
VOL
16
1
2
3
4
7
9
11
14
15
home channel
Tone 32
SQUELCH
KEYPAD/DISPLAY
COVERED
(REDUCED VIEW)
HI/LO
PROG TX RX SCN ID CG CMND
home channel
GPH-CMD Owner’s Manual 29
• If cloning is finished, turn off the Clone
and disconnect the cloning cable.
Normal radio operation will occur
when you turn on the Clone.
11. If the download was not successful, the
master will flash ‘FAILURE’ and multiple
beeps will follow. Failure of downloading
can be due to:
• Improper connection
• Failure to turn on the clone
• Setting the clone in Programming
Mode
• Target radio’s group ‘locked’ by PC
Programming
NOTE: To stop the ‘FAILURE’ Mode,
press [CLR], turn off both
radios, and try again, starting
with Step 1 on the previous
page.
BATTERY INSTALLATION AND REMOVAL
BK Radio battery packs are available in a variety of sizes and types for
special applications. Rechargeable battery packs can be charged
separately or while attached to a radio.
NOTE: For safety reasons, rechargeable battery packs are shipped
uncharged or only partially charged. Therefore, a rechargeable
battery pack should be properly charged before use.
INSTALLING THE BATTERY
1. Locate the center hub on the radio base
and place it in the recess of the battery
pack.
2. Position the battery pack at the 30° offset,
seating the two metal studs in their recess.
3. Apply upward pressure to the pack while
twisting the pack to its final (in line with the
radio) position. The metal tab will click,
locking the pack in position.
FAILURE
Group 01
To Next Page
