7
PREPARING YOUR TOOL FOR USE
WARNING:
Read and understand all
instructions. Failure to follow all instructions
listed below may result in electric shock, fire
and/or serious personal injury.
ASSEMBLY
WARNING: To prevent accidental
operation, ensure that the tool is
unplugged before performing the
following operations. Failure to do this
could result in serious personal injury.
FITTING THE AUXILIARY HANDLE
Twist the auxiliary handle knob (20) to
remove it and slide the handle lock (18)
out of the auxiliary handle.
Push the auxiliary handle (17) onto the
lower tube (23) of the pole.
Slide the handle lock (18) into position
on the auxiliary handle ensuring the
semicircular side faces the tube and the
key feature on the auxiliary handle is in the
groove on the tube as shown in figure A.
Insert the handle bolt (19) through hex
shaped bolt hole (24) in the auxiliary handle.
Push the bolt through the handle assembly
and thread the auxillary handle knob (20)
onto the bolt as shown in figure B.
Note: The auxiliary handle can be adjusted
along the tube. Simply loosen the auxillary
handle knob and position the handle as
desired. Retighten the knob to secure the
auxiliary handle.
FITTING AND REMOVING THE BLADE
WARNING: To prevent accidental
operation, ensure that the tool is
unplugged before performing the
following operations. Failure to do this
could result in serious personal injury.
The grass shear blade (15) has been
designed for trimming grass and weeds.
The shrubber blade (16) has been designed
for trimming bushes and shrubs.
1. Lock-off button
2. Trigger switch
3. Power cord
4. Blade release button
5. Blade cover
6. Guard
7. Pole
8. Pole trigger switch
9. Pole lock-off button
10. Pole power cord
11. Tool basket
12. Angle adjustment lever
13.
Pole extension coupling
14. Cord retainer
15. Grass Shear blade
16. Shrubber blade
17. Auxillary handle
18. Handle lock
19. Handle bolt
20. Auxillary handle knob
21. Pole plug
22. Adapter

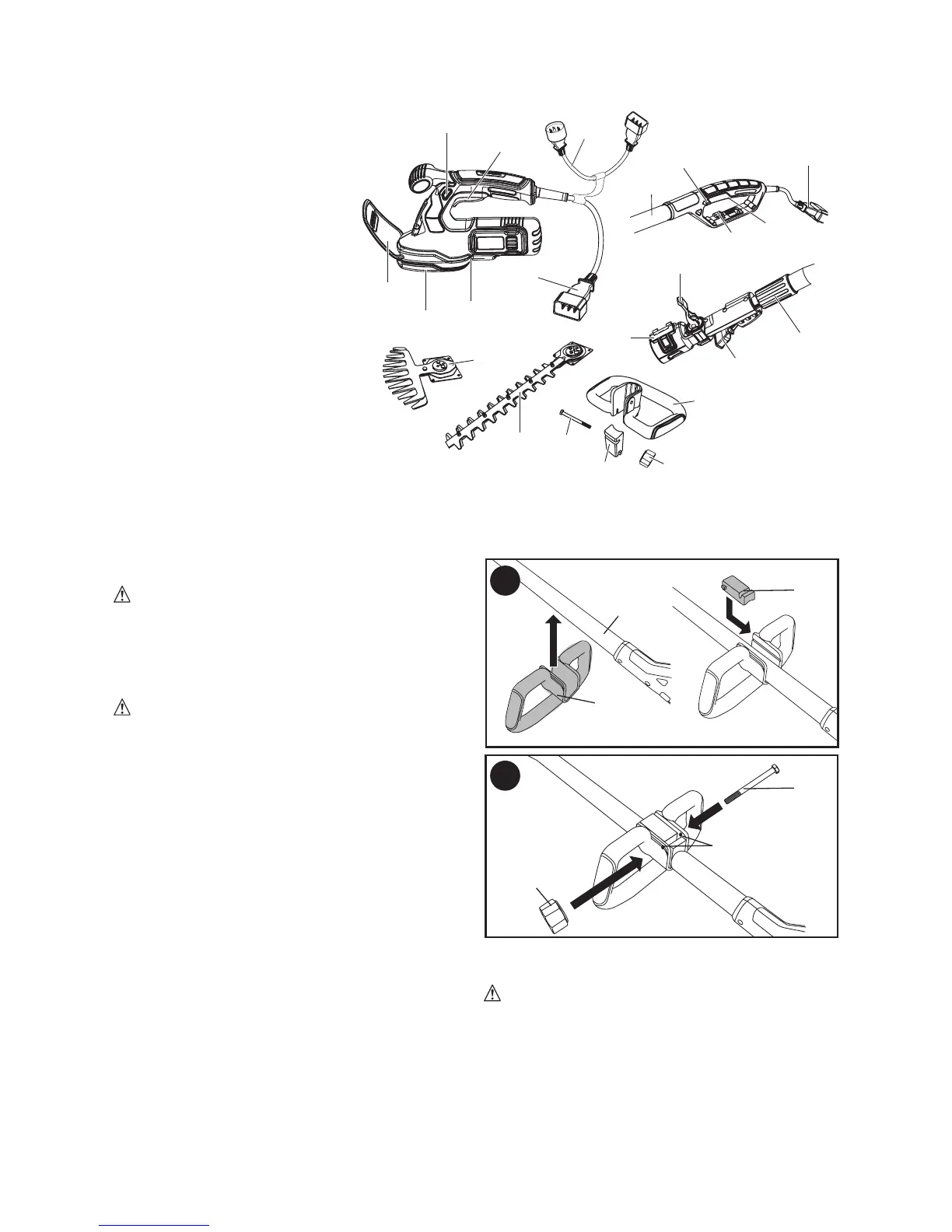

FUNCTIONAL DESCRIPTION
11
13
12
8
9
10
1
6
4
2
3
5
7
14
15
16
19
18
20
17
21
22
A
B
17
18
23
20
19
24
