CHAPTER 2: OVERVIEW

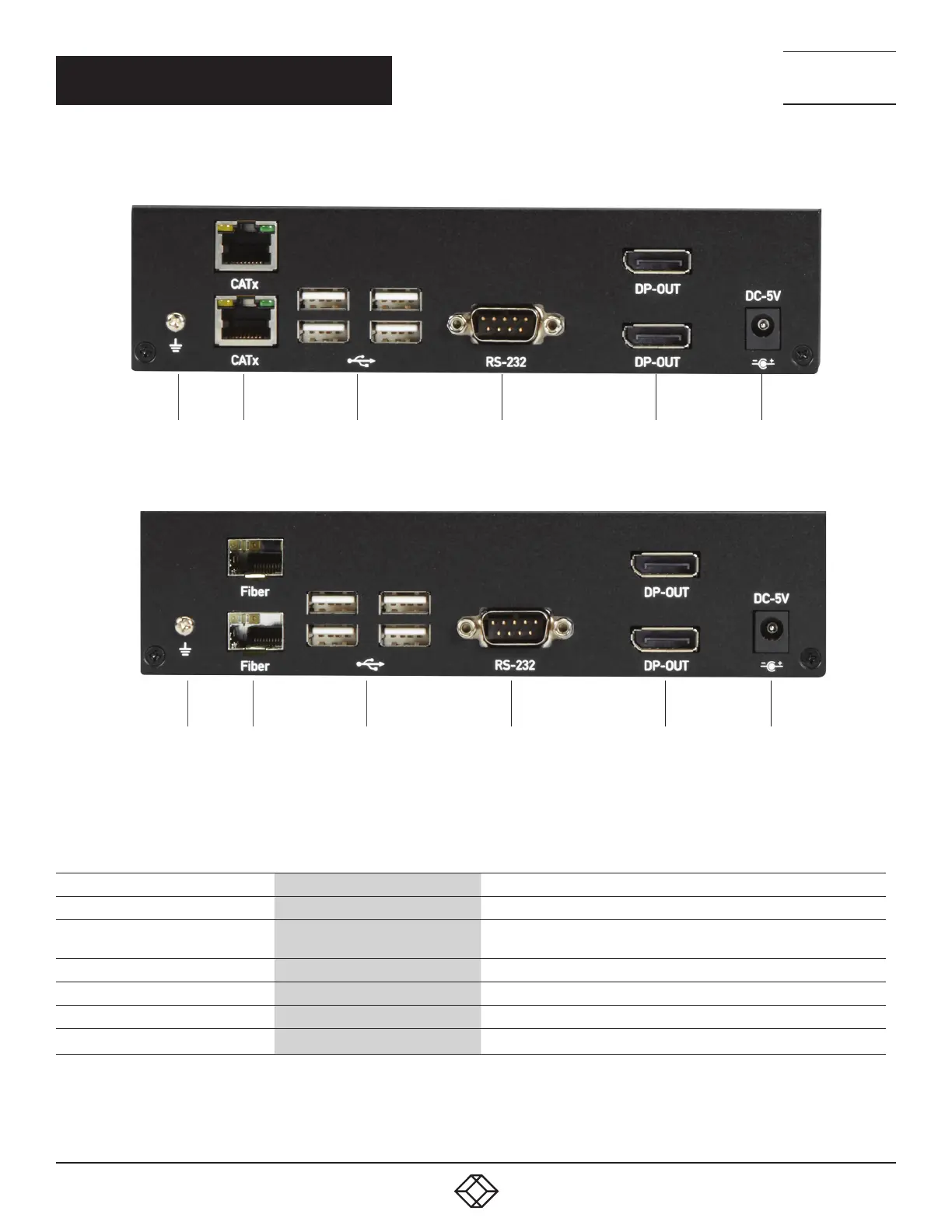

Figures 2-11 and 2-12 show the back panels of the dual-head CATx and fiber receivers. Table 2-6 describes their components.
1 2 3 4 5 6
FIGURE 2-11. DUAL-HEAD CATX RECEIVER BACK PANEL
1 2 3 4 5 6
FIGURE 2-12. DUAL-HEAD FIBER RECEIVER BACK PANEL
TABLE 2-6. DUAL-HEAD RECEIVER BACK-PANEL COMPONENTS
NUMBER IN FIGURE 2-11 OR 2-12 COMPONENT DESCRIPTION
1 Ground screw Links to ground
2
For CATx model: RJ-45 connector
For Fiber model: SFP cage
For CATx Model: CATx link
For Fiber model: Install fiber SFP module here
3 (4) USB 2.0 Type A ports Connect to USB device ports
4 DB9 connector Connects to sink device’s RS-232 port for serial extension
5 (2) DisplayPort Out ports Connects to sink devices' signals for DisplayPort video extension
6 Power connector Links to 5-VDC power supply
