CHAPTER 2: OVERVIEW
2.4.2 RECEIVER
FRONT PANEL

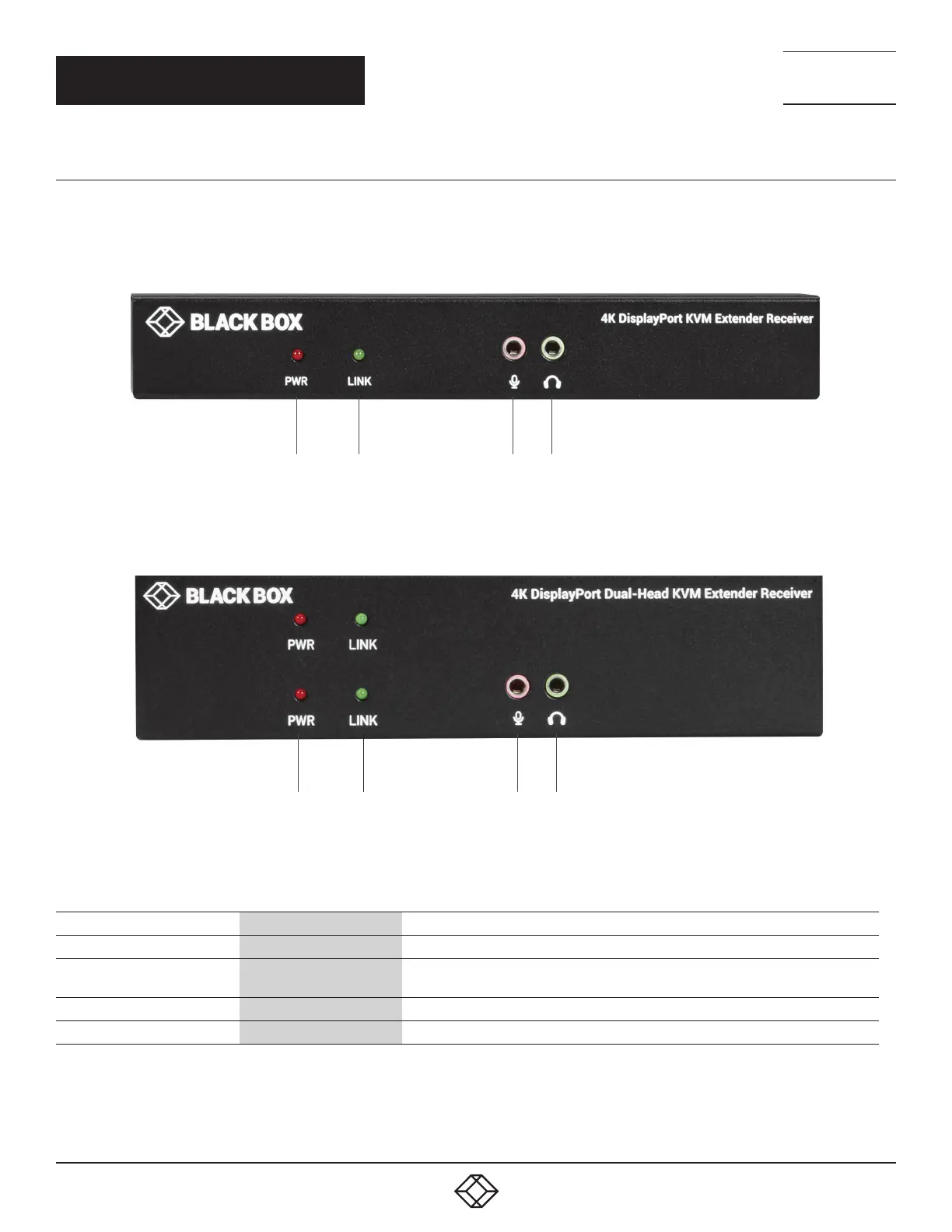

Figure 2-7 shows the front panel that is common to the single-head CATx and fiber receivers. Table 2-4 describes its components.
1 2 3 4
FIGURE 2-7. SINGLE-HEAD RECEIVER FRONT PANEL
Figure 2-8 shows the front panel that is common to the dual-head CATx and fiber receivers. Table 2-4 describes its components.
1 2 3 4
FIGURE 2-8. DUAL-HEAD RECEIVER FRONT PANEL
TABLE 2-4. RECEIVER FRONT-PANEL COMPONENTS
NUMBER IN FIGURE 2-4 COMPONENT DESCRIPTION
1 PWR LED Lights when power to the receiver is ON
2 Link LED
Lights when the link between transmitter and receiver units is ON;
OFF when the link between transmitter and receiver units is OFF
3 Audio jack Links to analog audio input for audio extension
4 Audio jack Links to analog audio output for audio extension
