CHAPTER 2: OVERVIEW

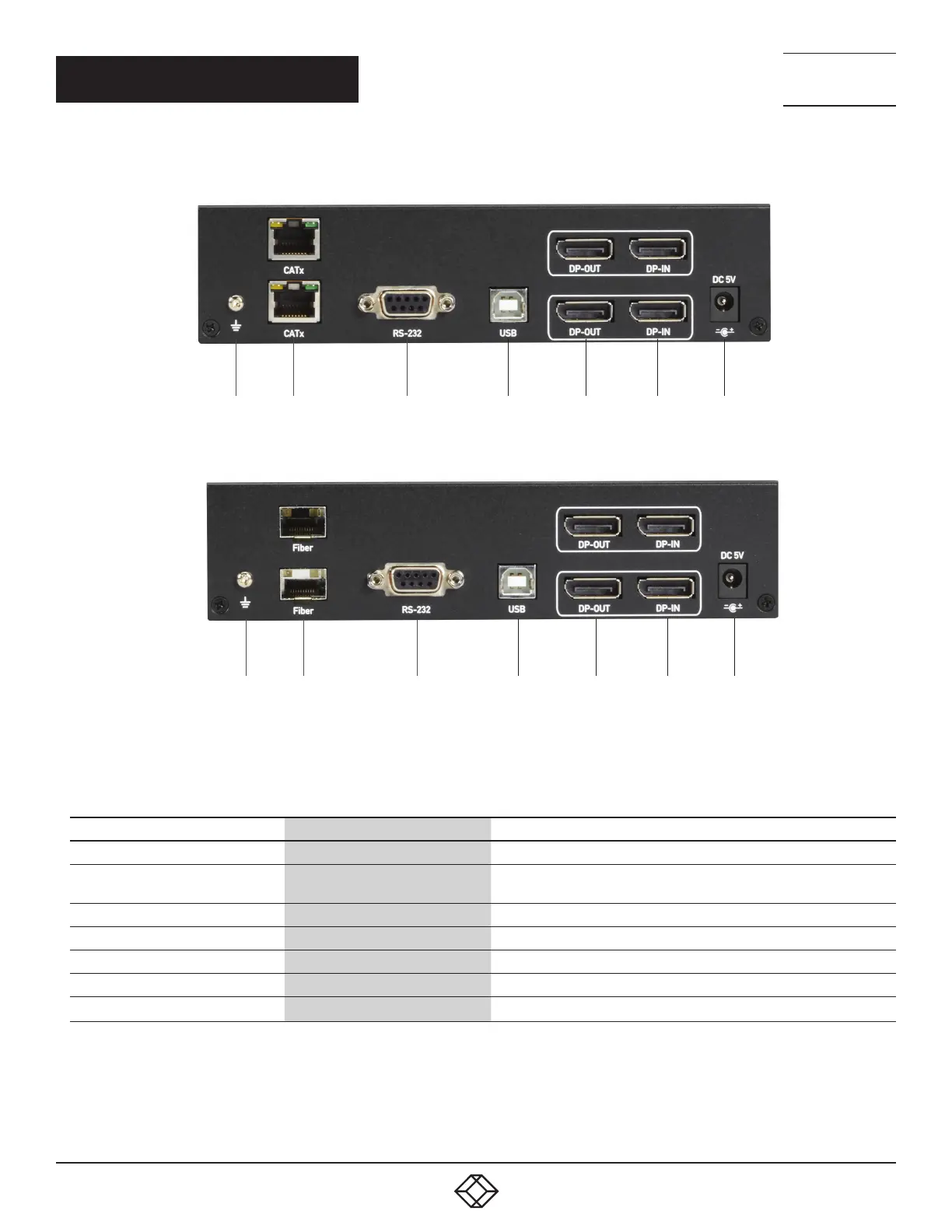

Figures 2-5 and 2-6 show the back panels of the dual-head CATx and fiber transmitters. Table 2-3 describes their components.
1 2 3 4 5 6 7
FIGURE 2-5.DUAL-HEAD CATX TRANSMITTER BACK PANEL
1 2 3 4 5 6 7
FIGURE 2-6. DUAL-HEAD FIBER TRANSMITTER BACK PANEL
TABLE 2-3. DUAL-HEAD TRANSMITTER BACK-PANEL COMPONENTS
NUMBER IN FIGURE 2-5 OR 2-6 COMPONENT DESCRIPTION
1 Ground screw Links to ground
2
For CATx model: RJ-45 connector;
For Fiber model: SFP cage
For CATx Model: CATx link;
For Fiber model: Install fiber SFP module here
3 DB9 connector Connects to source device’s RS-232 port for serial extension
4 USB Type B connector Connects to source device’s USB port
5 (2) DisplayPort Out ports Connects to local outputs
6 (2) DisplayPort In ports Connects to source devices’ signals for DisplayPort extension
7 Power connector Links to 5-VDC power supply
