CHAPTER 2: OVERVIEW
BACK PANEL

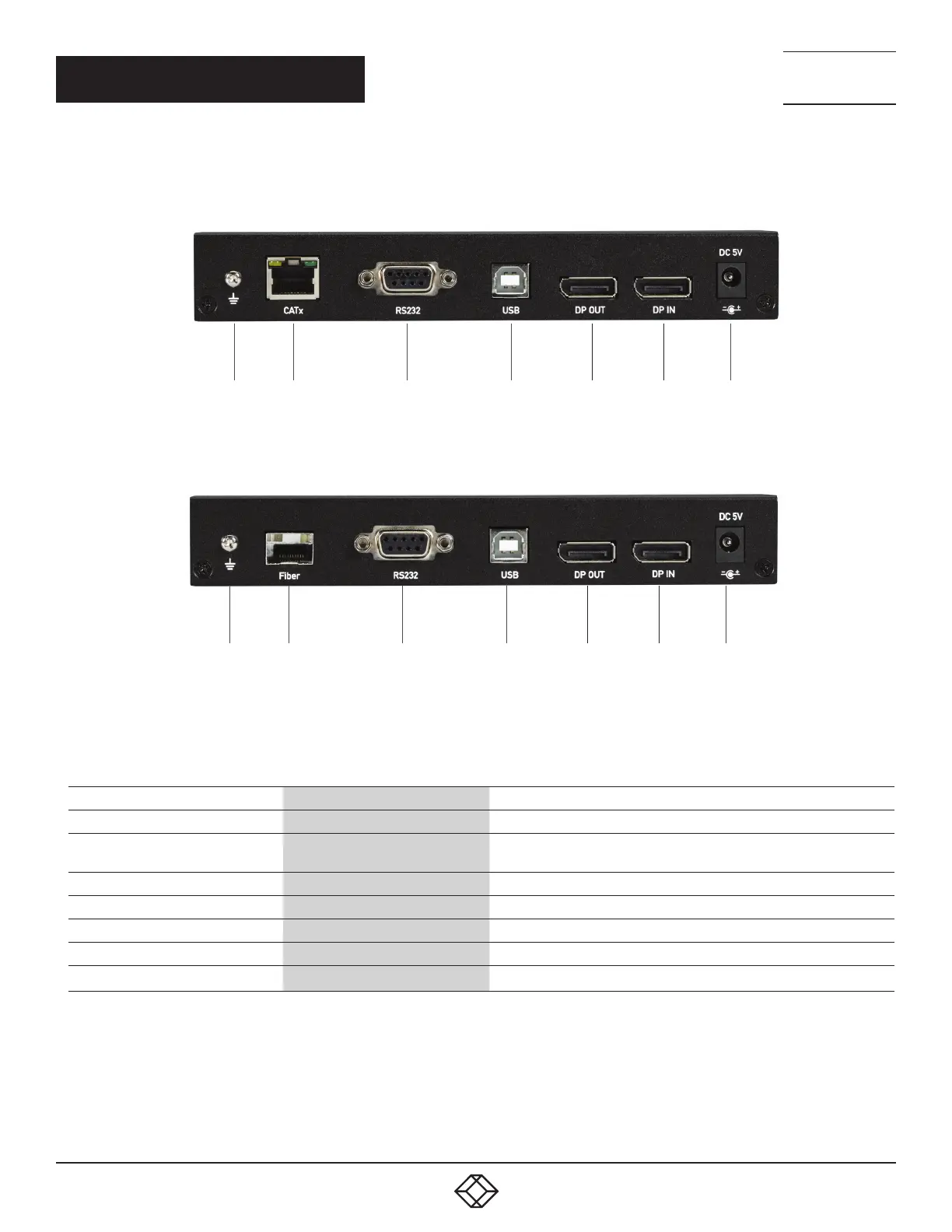

Figures 2-3 and 2-4 show the back panels of the single-head CATx and fiber transmitters. Table 2-2 describes their components.
1 2 3 4 5 6 7
FIGURE 2-3. SINGLE-HEAD CATX TRANSMITTER BACK PANEL
1 2 3 4 5 6 7
FIGURE 2-4. SINGLE-HEAD FIBER TRANSMITTER BACK PANEL
TABLE 2-2. SINGLE-HEAD TRANSMITTER BACK-PANEL COMPONENTS
NUMBER IN FIGURE 2-3 OR 2-4 COMPONENT DESCRIPTION
1 Ground screw Links to ground
2
For CATx model: RJ-45 connector;
For Fiber model: SFP cage
For CATx Model: CATx link;
For Fiber model: Install fiber SFP module here
3 DB9 connector Connects to source device’s RS-232 port for serial extension
4 USB Type B connector Connects to source device’s USB port
5 DisplayPort Out port Connects to local out
6 DisplayPort In port Connects to source device’s signal for DisplayPort extension
7 Power connector Links to 5-VDC power supply
