16
RISC ROUTER EXPANDABLE
3.3.3 RS-232 I
NTERFACE
The female RS-232 connector and cable, shown in Figure 3-5, connects to the
male RS-232 connector on the RISC Router Expandable. The connector must
conform to the RS-232 EIA specification. See Table 2-2 for pin assignments.
3.3.4 RS-449 I
NTERFACE
The Wide Area Network port on the RISC Router Expandable is configured
to support RS-449 communications. The RS-449 WAN connector and cable,
shown in Figure 3-6, connects to the RS-449 WAN connector on the RISC
Router Expandable. This connector has a spring clip on each side that must
be pinched for the two connectors to attach. This port can be configured to
support RS-232, EIA-530, and V.35 communications. See Table 2-1 for the pin
assignments.

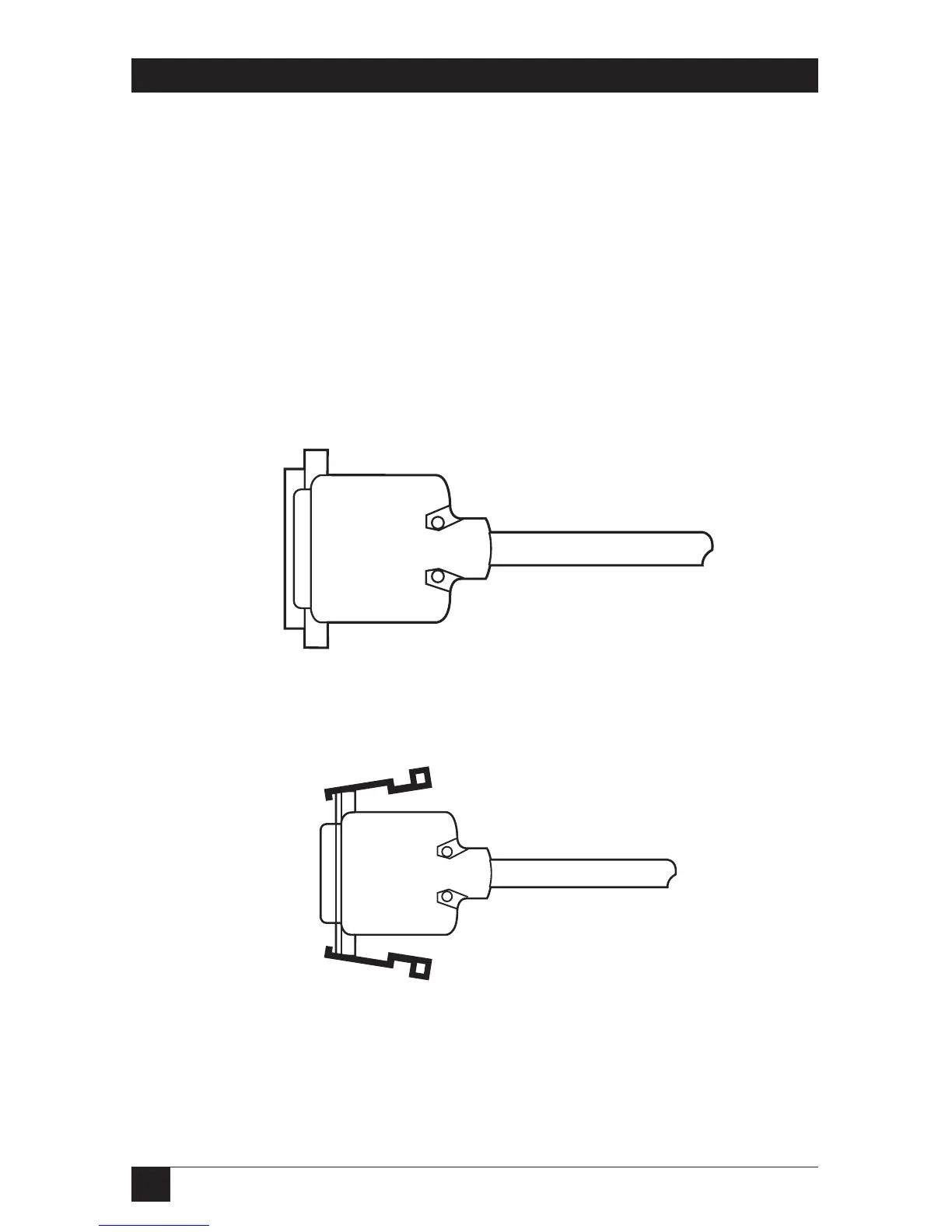

Figure 3-5. RS-232 Connector and Cable (Female).
Figure 3-6. RS-449 (WAN) Connector and Cable.
