CHAPTER 3: Installation

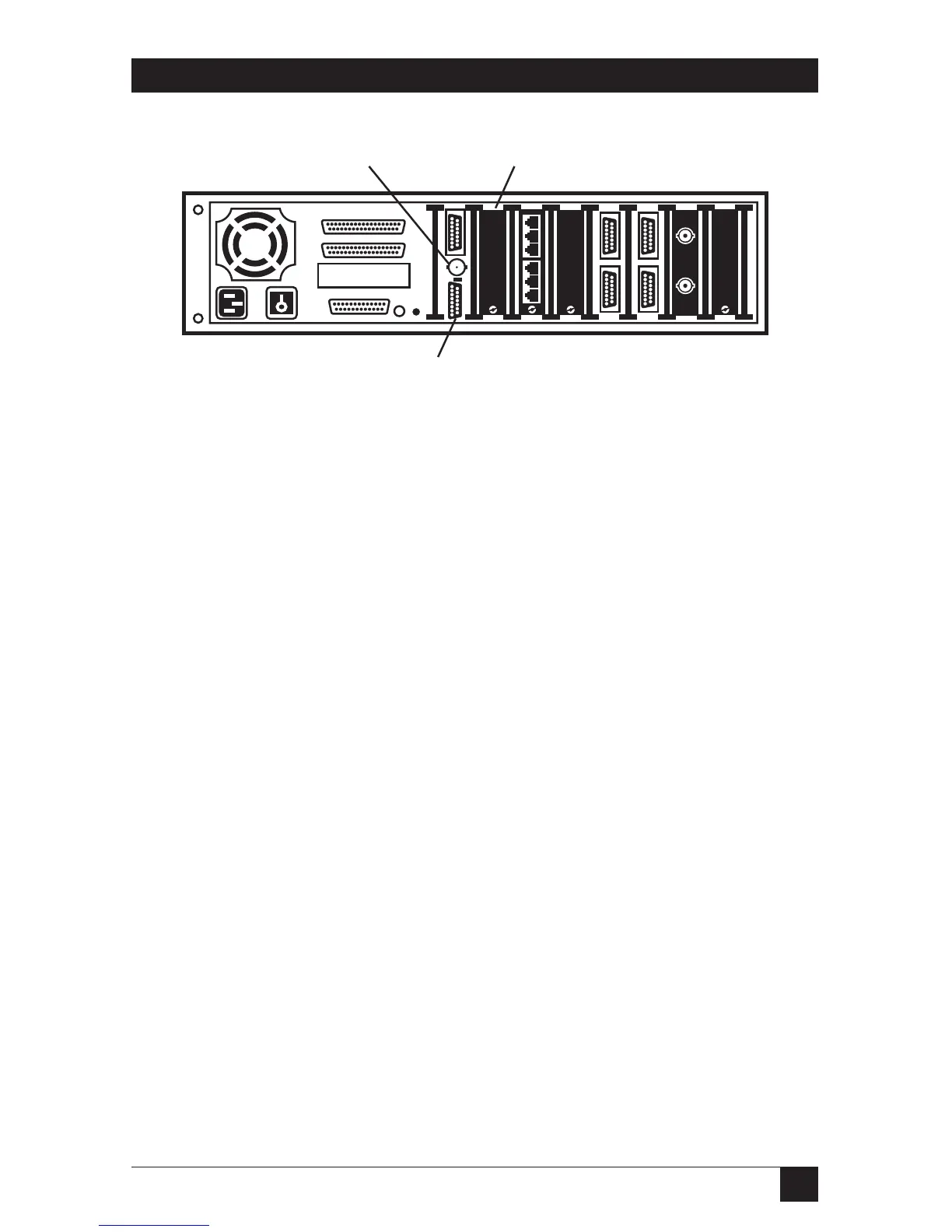

Figure 3-8. BNC Connection.
3.4.4 MAU C
ONNECTION
The MAU interface is the bottom connector of a RISC Bridge/E Expansion
Card (see Figure 3-8). This interface is a 10BASE5 connector that has a
built-in transceiver for a direct-connect to a workstation.
1. Attach a female AUI connector to th MAU interface on the RISC Router
Expandable.
2. Slide the locking clip on the AUI connector to secure the connection.
