RISC ROUTER EXPANDABLE
WAN Connectors
The WAN ports are initially configured for RS-449 and are compatible
with the RS-422/423 electrical standard.
1. Locate the two WAN interfaces on the back panel of the RISC Router
Expandable. The interfaces are labeled “WAN #1” and “WAN #2.”
2. Connect a 37-pin female RS-449 connector to either WAN interface.
The connector has clamps on each side that must be pinched to
attach to the interface.

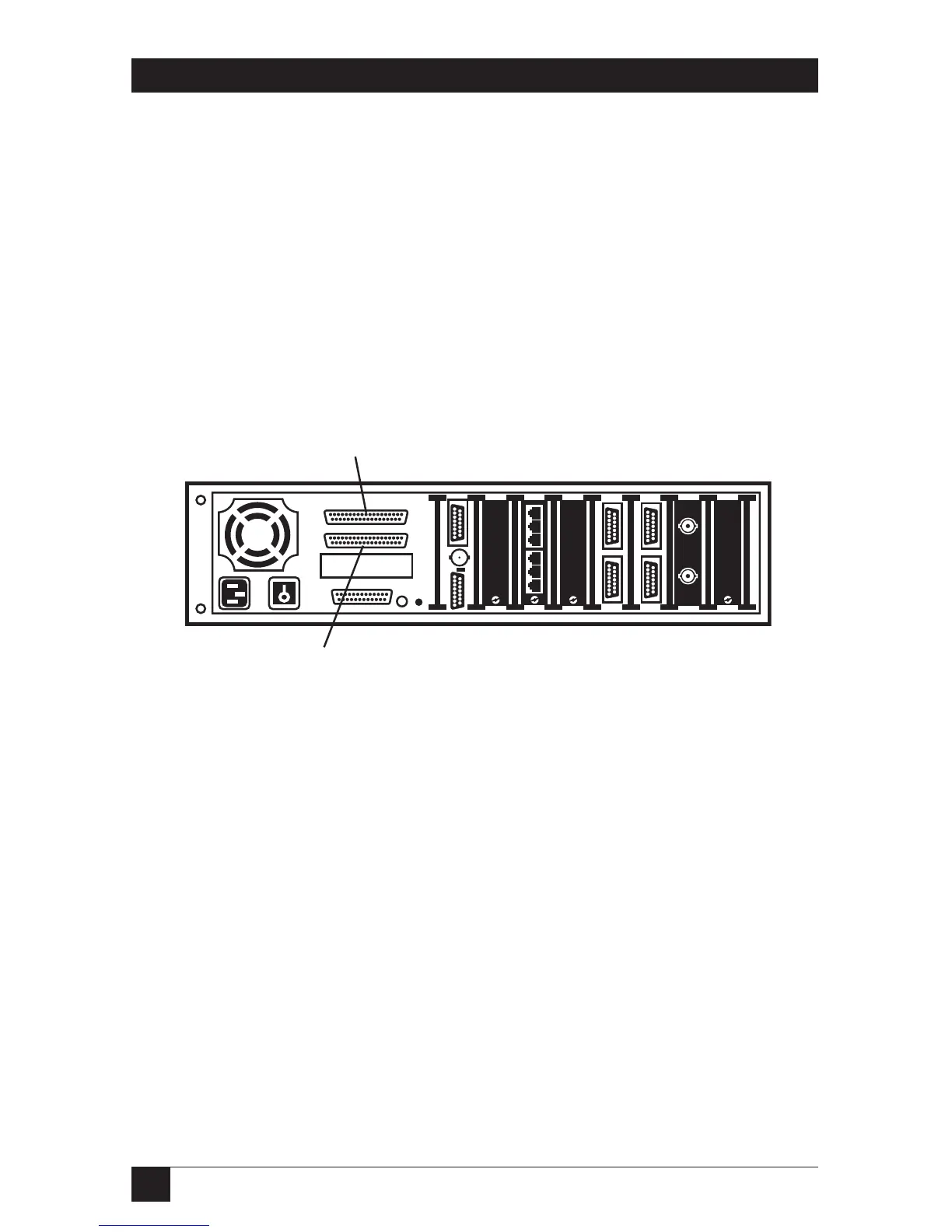

Figure 3-12. WAN Port Location on the RISC Router Expandable.
