Black Box ServSwitch Duo KV6104SA User Manual

14
SERVSWITCH DUO™

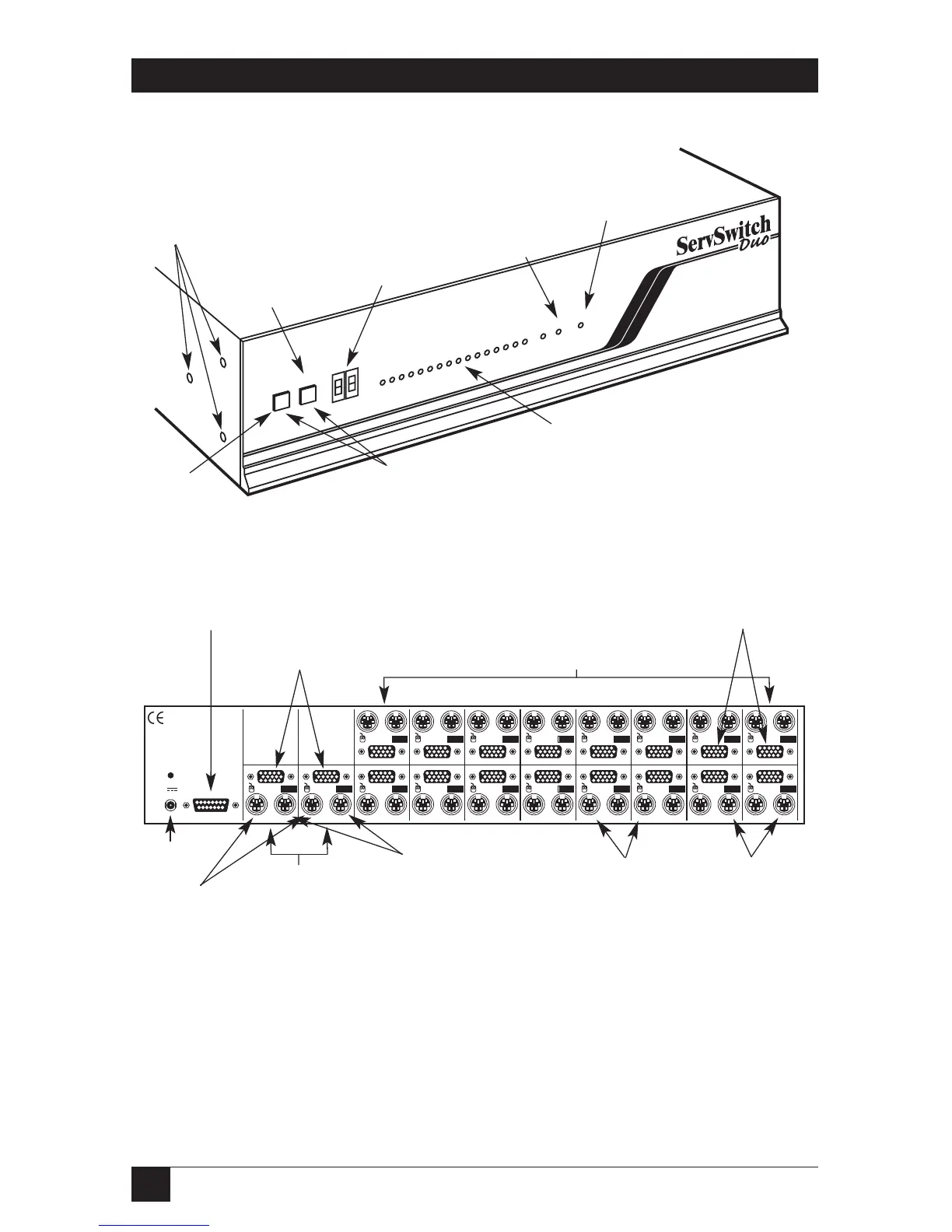

Fig. 2-4. The front and side panels of the 12- and 16-port ServSwitch Duo
models (KV6112FA and KV6116FA).
Fig. 2-5. The rear panel of the 12- and 16-port ServSwitch Duo models.
1A
5V
B A 8 7 6 5 4 3 2 1
16 15 14 13 12 11 10 9
A B
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16
ACTIVE USER
PWR
AUTO SCAN
SELECT
BLACK BOX
Key for
selecting
autoscan
Both keys together
used to lock the
Switch or reset
keyboards and mice
Display shows
status and
mouse/keyboard
data activity
Attachment
points for
rackmount
bracket
Red LEDs
show currently
active control
port (A or B)
Green LEDs show
the ON/OFF status
of connected CPUs
(LEDs 13 through 16
are present on
16-port model only)
Key for
changing
channels and
entering
configuration
mode
LED shows the
power status
of the Switch
Control-port monitor
connectors
CPU-port video connectors
Control ports
A and B
Power
connector
Control-port
mouse connectors
Control-port keyboard
connectors
Expansion port for Remote-Control Module and RS-232 control
CPU ports 1 through 16 (ports 13 through 16
are present on 16-port model only)
CPU-port mouse
connectors
CPU-port keyboard
connectors
