SERVSWITCH DUO™

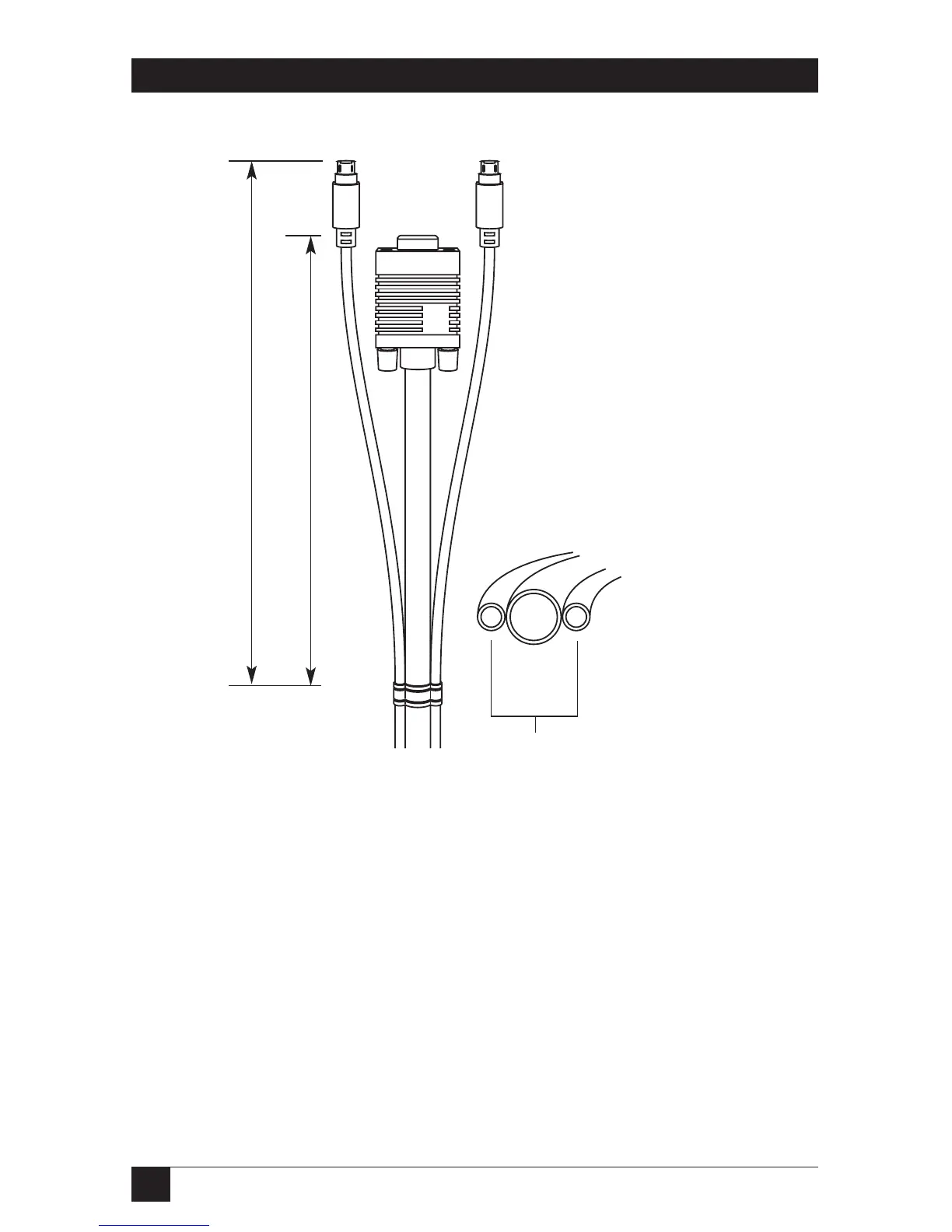

Figure 3-1. The ServSwitch Duo cables.
Next, connect each computer or (in cascaded systems) subsidiary ServSwitch
Duo to your single/master Switch. One way to do this is to run separate male-to-
male keyboard-, mouse-, and video-extension cables from the appropriate CPU-
port connectors on the single/master Switch to (a) the keyboard, mouse, and
video ports respectively of the computer or (b) the keyboard, mouse, and monitor
connectors respectively of control port A or B of the subsidiary Switch. (Any
unused CPU-port or control-port connectors on the single/master Switch can be
left vacant.) Alternatively, instead of three separate cables, you can use our three-
in-one ServSwitch Duo CPU-Extension Cable (our product code EHN408), whose
design is shown in Figure 3-1 above. This cable is available in 5-foot (1.5-m),
10-foot (3-m), 30-foot (10-m), 50-ft. (15-m), and 100-ft. (30-m) lengths.
HD15
Central
video
strand
Keyboard and mouse
strands molded to sides
Cross-section:
9"
(22.9
cm)
10"
(25.4
cm)
6-Pin
mini-DIN
6-Pin
mini-DIN
To Next Page
